Transmission Control Cable: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Install the retainer to the grommet.
  NOTE: Fit 4 projections of the grommet into 4 holes of the retainer.

  Fig 1: Installing Retainer To Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable assembly with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 2: Installing Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the shift cable with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 3: Connecting Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the shift cable with the 2 clip from the bracket.
5. Connect the shift cable end of the shift cable with the 2 washer and 2 clip to the transaxle.

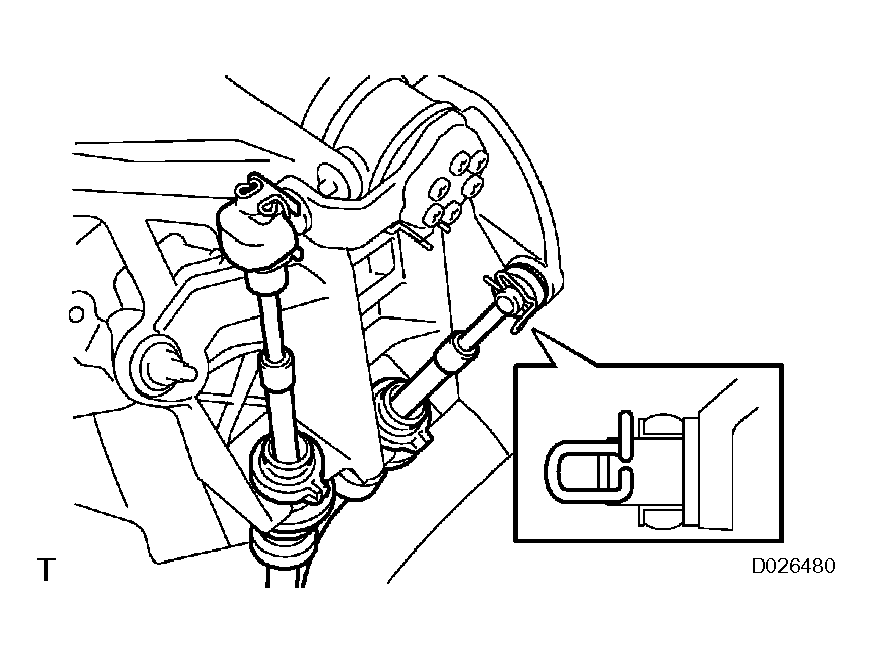

  Fig 4: Connecting Shift Cable End Of Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Connect the select cable to the shift lever assembly.
  NOTE:
  - The projecting part of the cable outer should face upward when the shift cable is installed.
  - Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

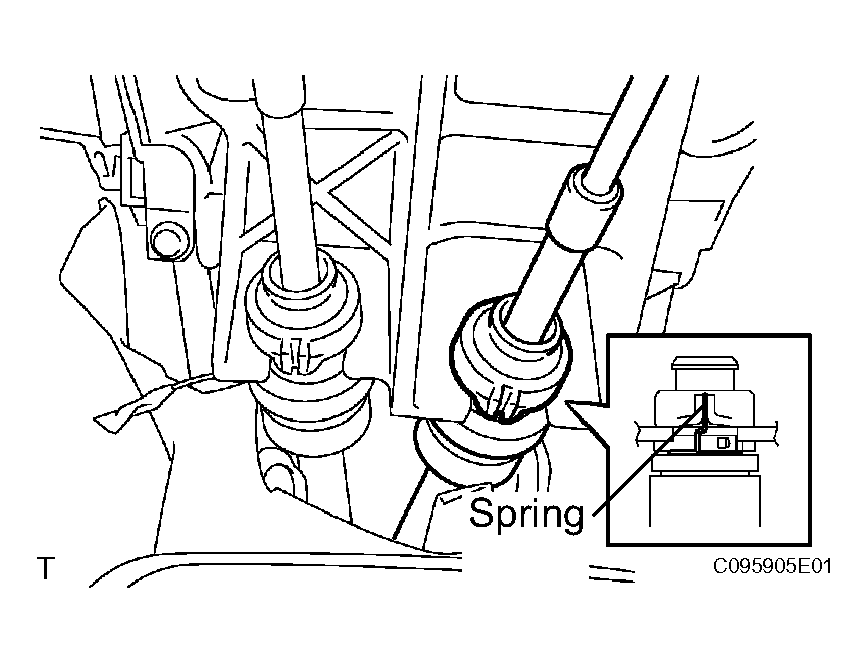

    Fig 5: Connecting Select Cable To Shift Lever Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the select cable end with the clip to the shift lever assembly.
3. Connect the select cable to the clamp.

  Fig 6: Connecting Select Cable End With Clip To Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Connect the shift cable to the shift lever assembly.
  NOTE:
  - The projecting part of the cable outer should face upward when the shift cable is installed.
  - Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

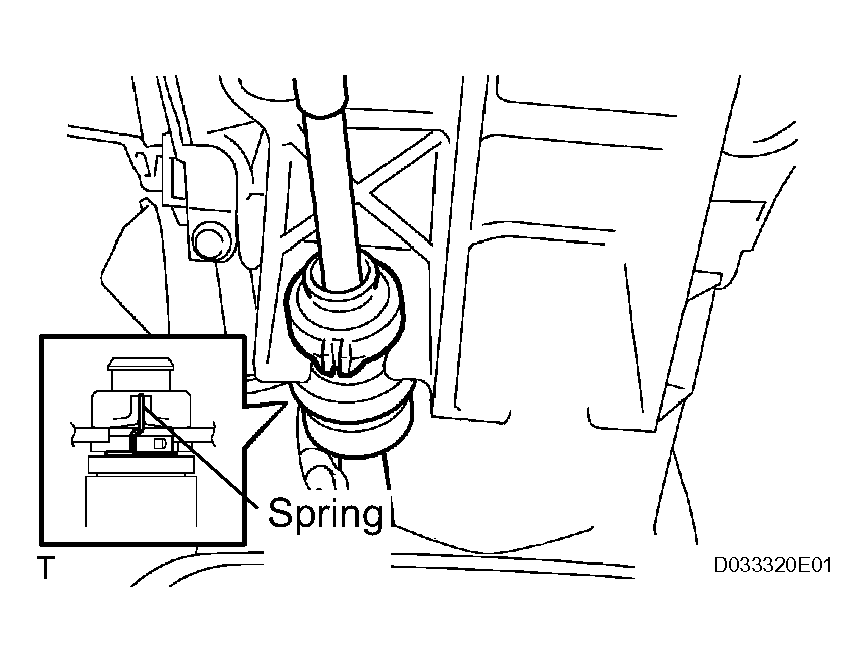

    Fig 7: Connecting Shift Cable To Shift Lever Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shift cable end as shown in the illustration.
3. Install the washer and clip.
4. Connect the shift cable to the clamp.
INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
1. Install the heat insulator No. 1 with the 3 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL EXHAUST PIPE ASSEMBLY
HINT:

(See REMOVAL )

Fig 8: Connecting Shift Cable End
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR BAG SENSOR ASSEMBLY CENTER (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See INSTALLATION )
INSTALL INSTRUMENT PANEL BOX (See INSTALLATION )
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
CONNECT BATTERY NEGATIVE TERMINAL
INSPECT SRS WARNING LIGHT
