Transmission Control Cable: Components

WARNING: This page is about a different variant/trim than selected.

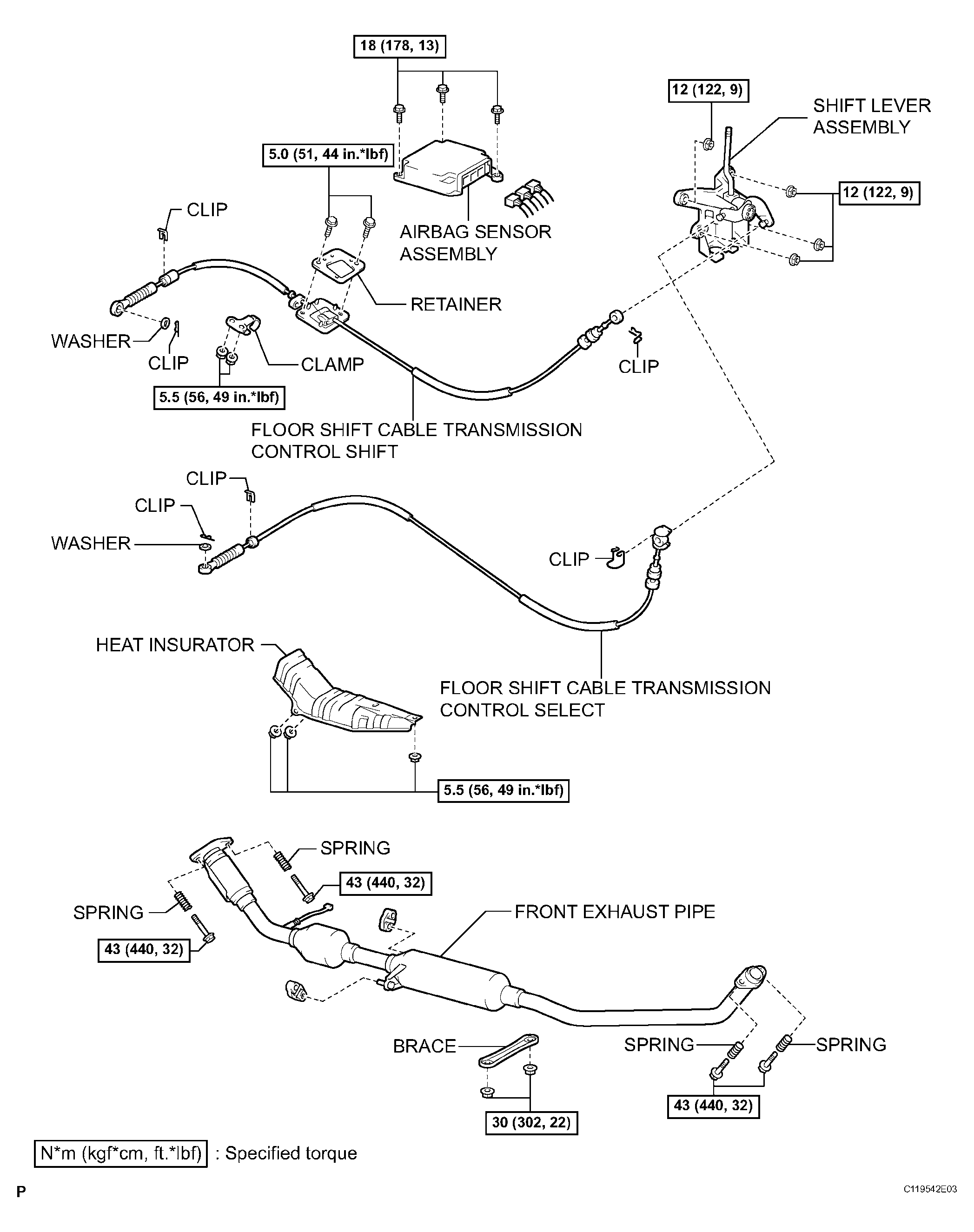

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications
G04464233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
