Manual Transaxle Unit: Components
WARNING:
This page is about a different variant/trim than selected.

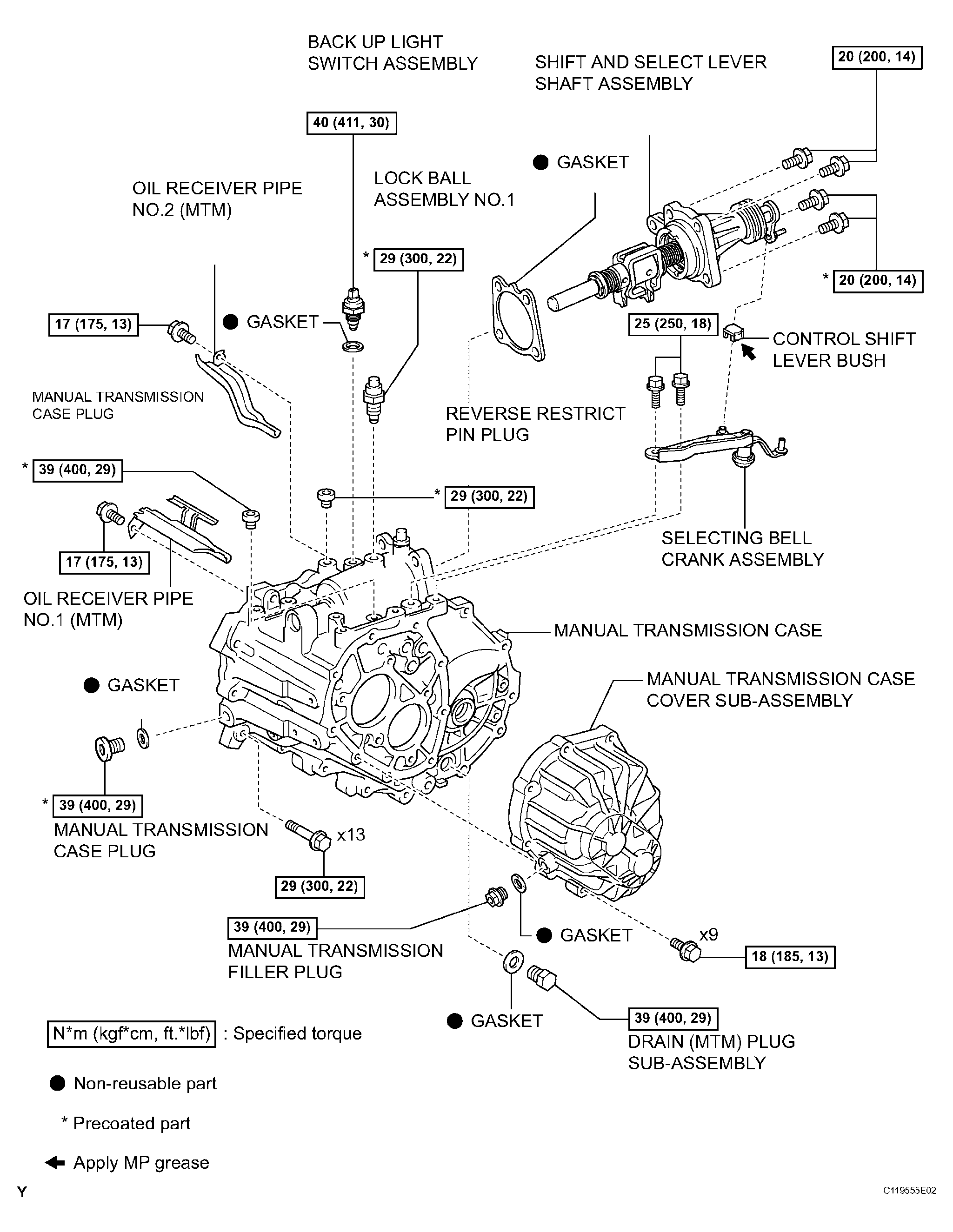

Fig 1: Exploded View Of Manual Transaxle Unit Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

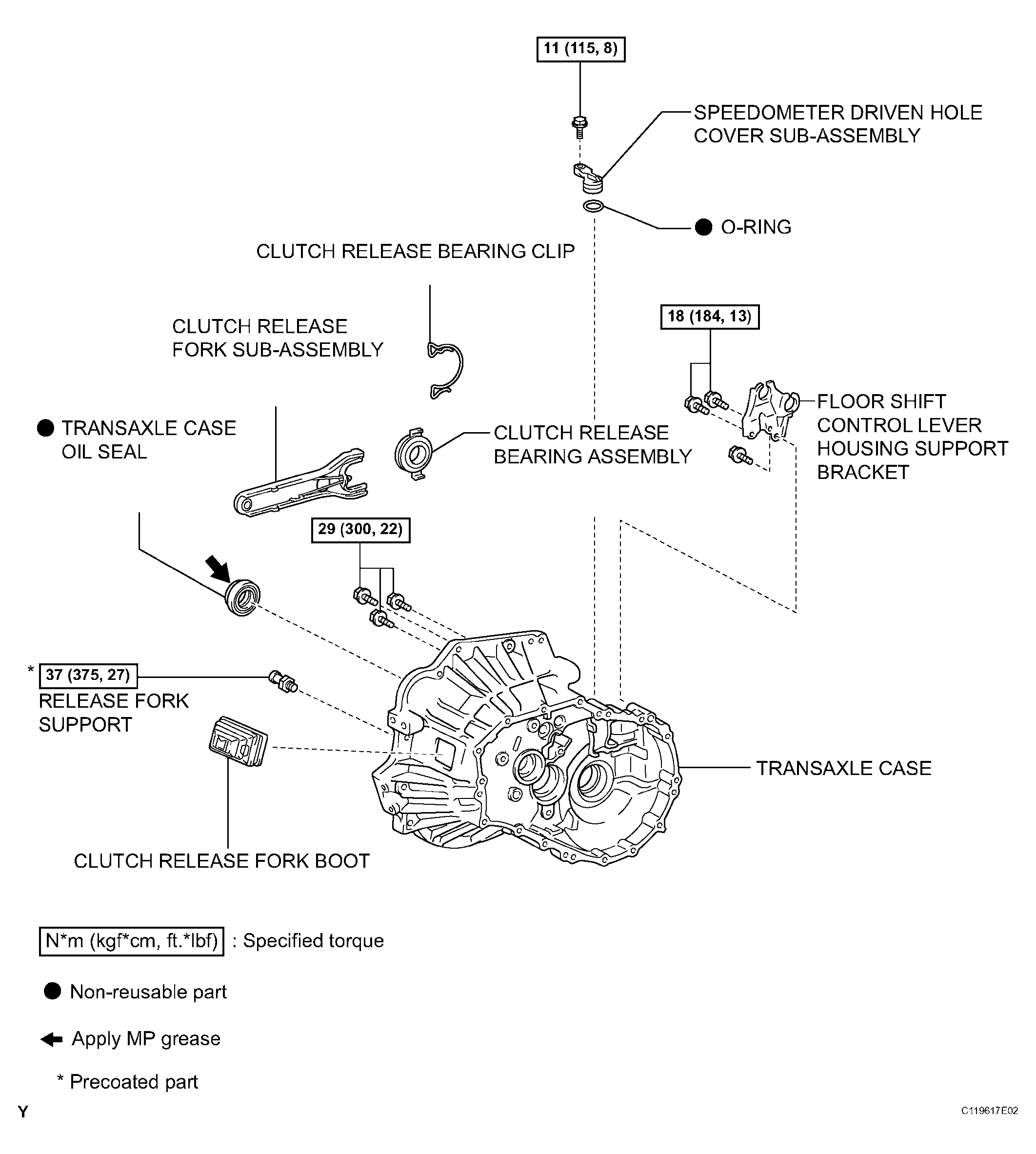

Fig 2: Exploded View Of Manual Transaxle Unit Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

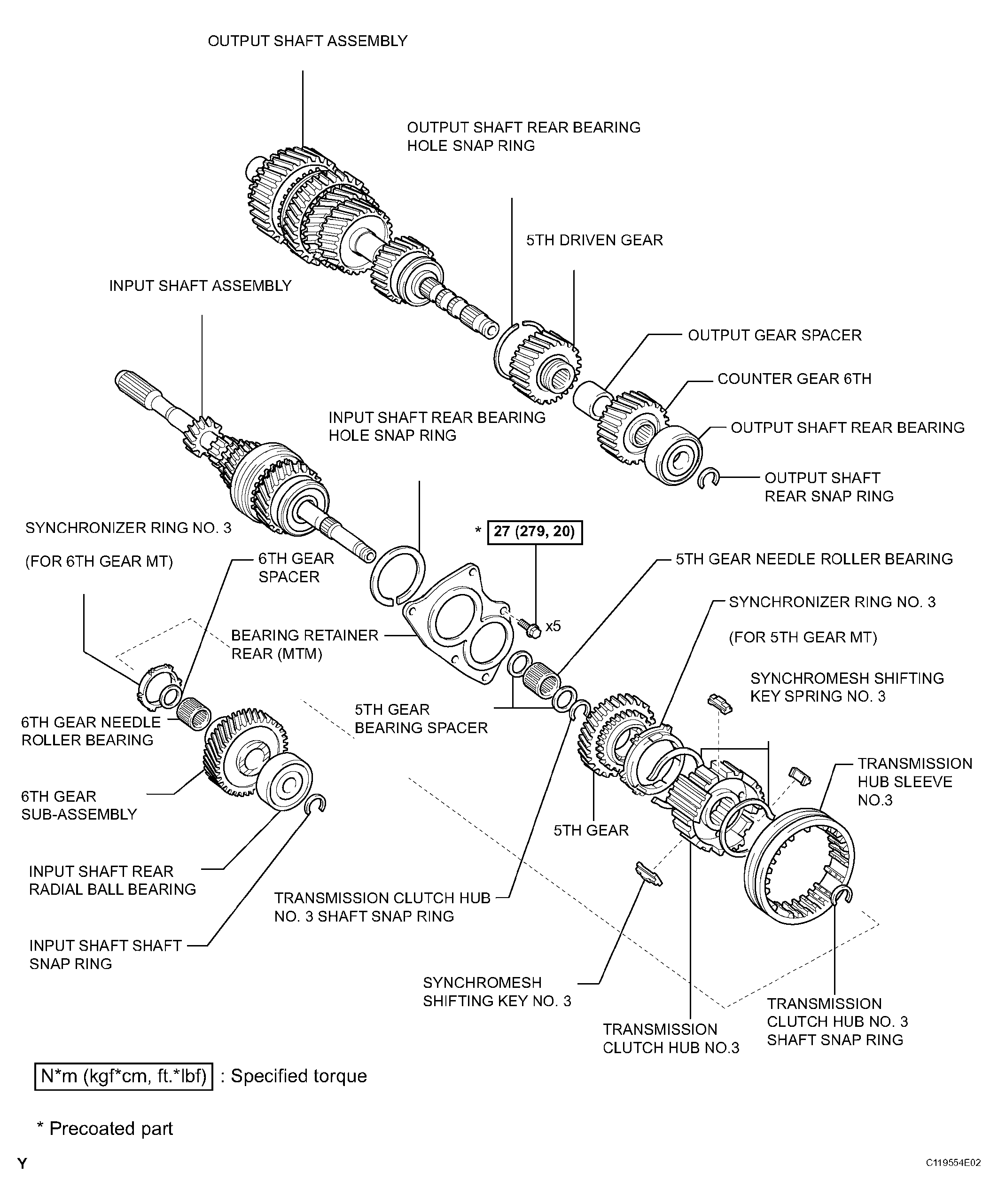

Fig 3: Exploded View Of Manual Transaxle Unit Components With Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

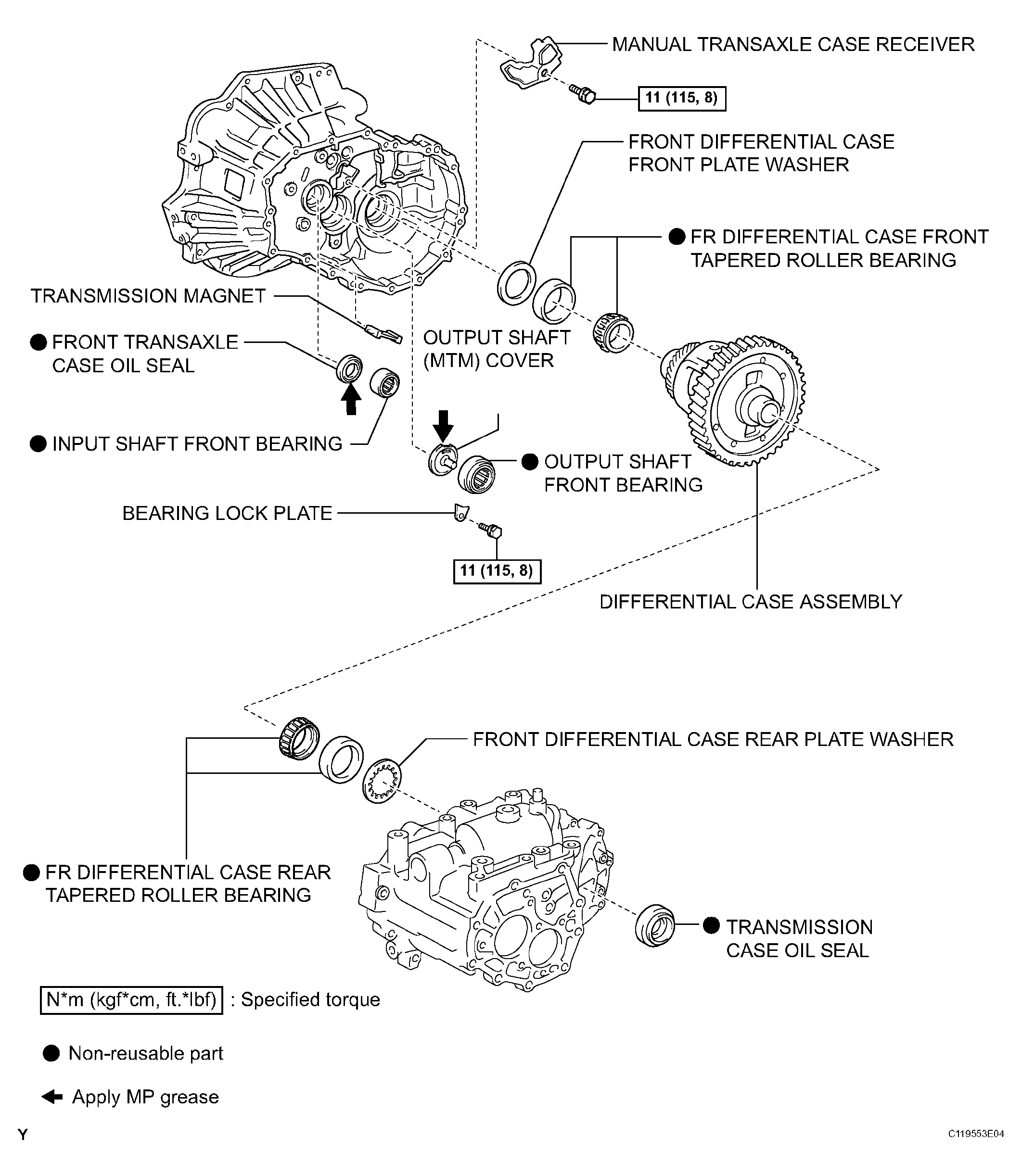

Fig 4: Exploded View Of Manual Transaxle Unit Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

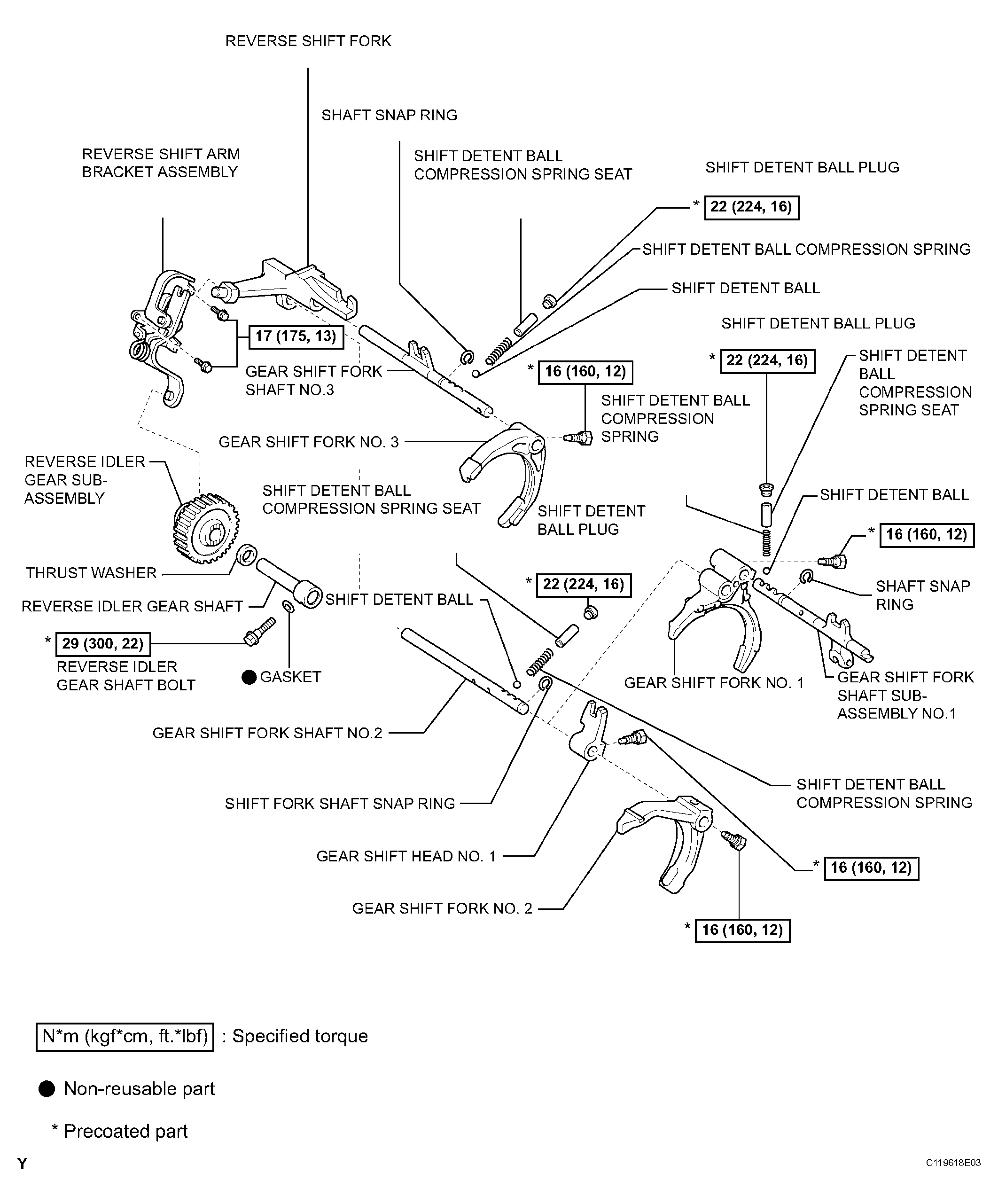

Fig 5: Exploded View Of Manual Transaxle Unit Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
