System Diagram

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the A246E automatic transaxles is as shown in the following chart.

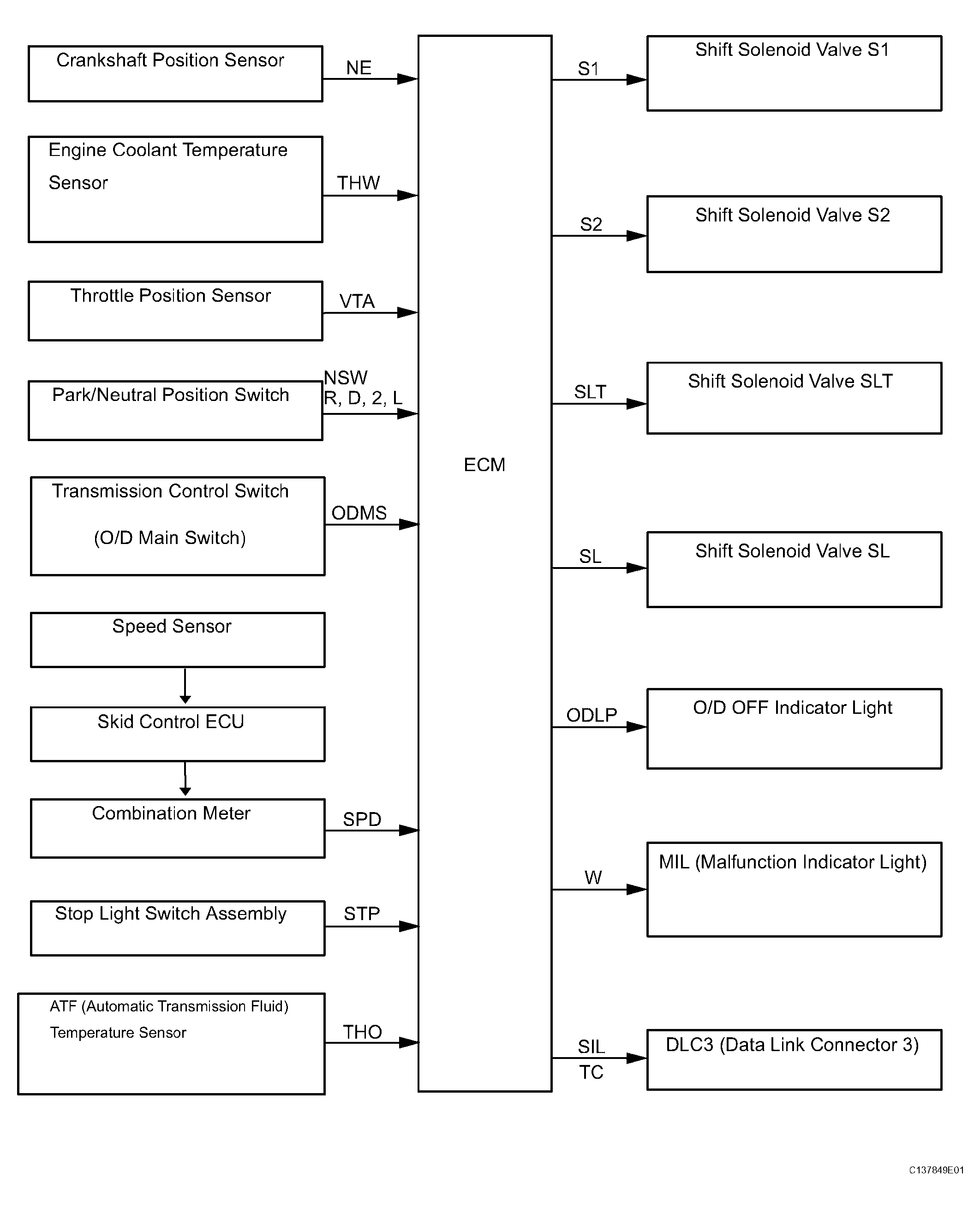

Fig 1: System Diagram Automatic Transaxle System
