EFI Relay: Inspection

  1. INSPECT E.F.I ECU RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance

        TESTER CONNECTION - SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        3 - 5 10 k or higher
        3 - 5 Below 1 (Apply battery voltage to terminal 1 and 2)

        If the result is not as specified, replace the E.F.I ECU relay.

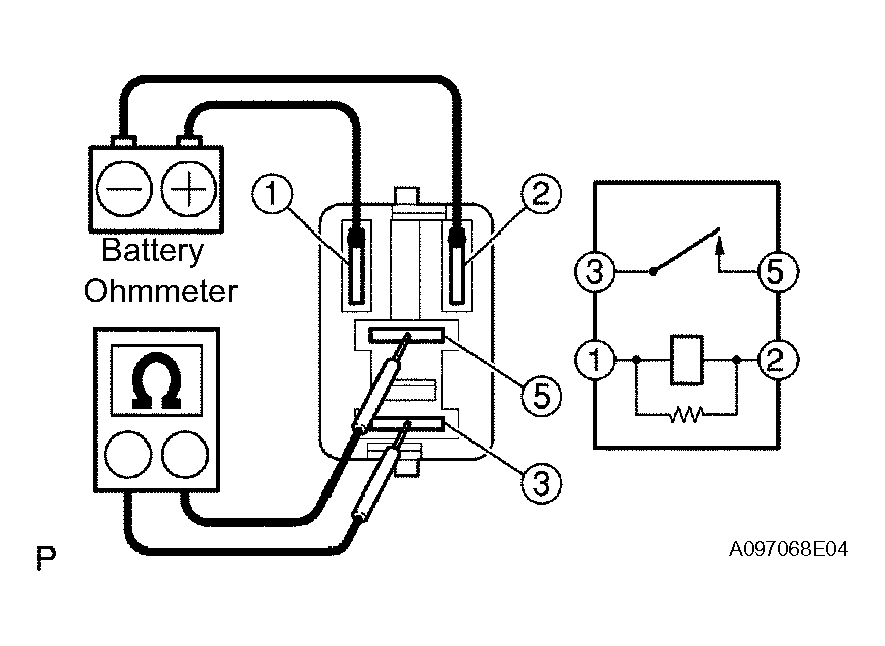

        Fig 1: Inspecting E.F.I ECU Relay
        G04460489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
