Cruise Control for 1ZZ-FE (2WD): Notes

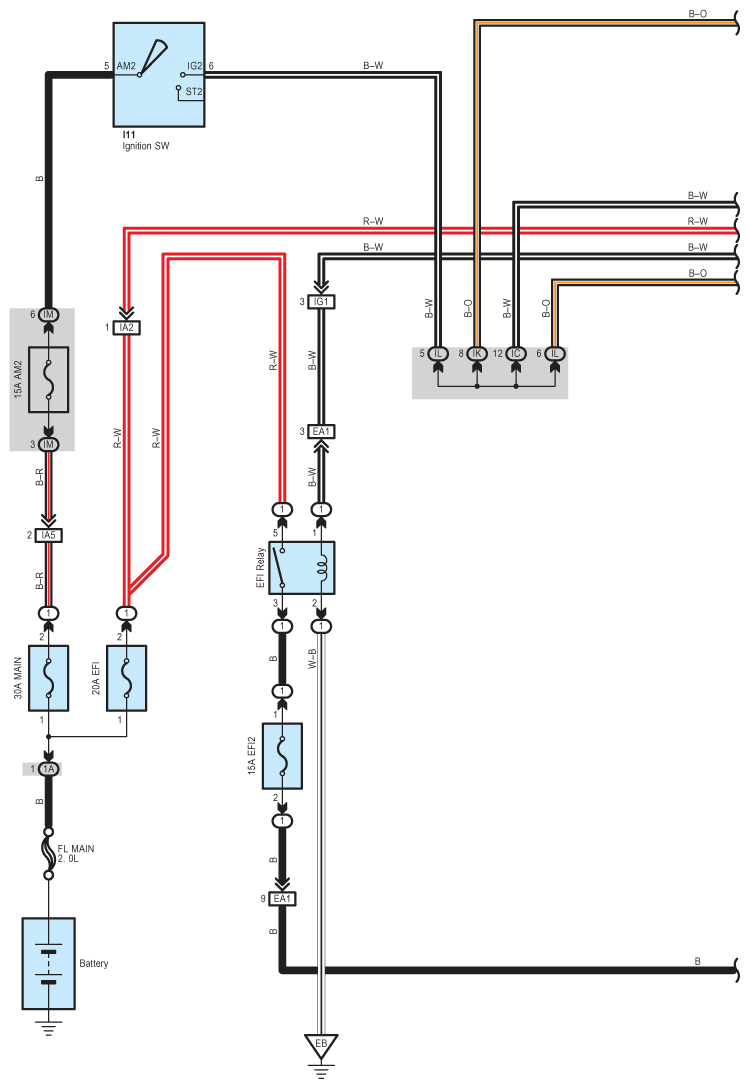

Fig 1: Cruise Control System (For 1ZZ-FE, 2WD) Wiring Diagram (1 Of 4)
G08838196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

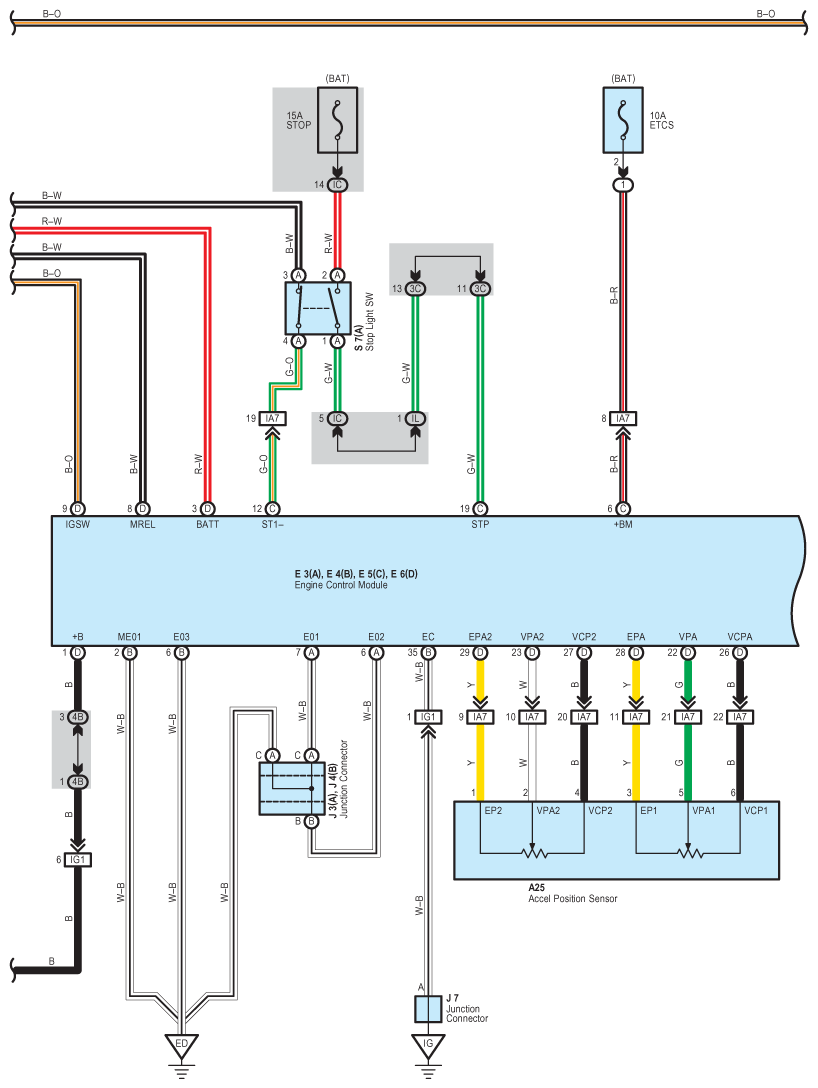

Fig 2: Cruise Control System (For 1ZZ-FE, 2WD) Wiring Diagram (2 Of 4)
G08838197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

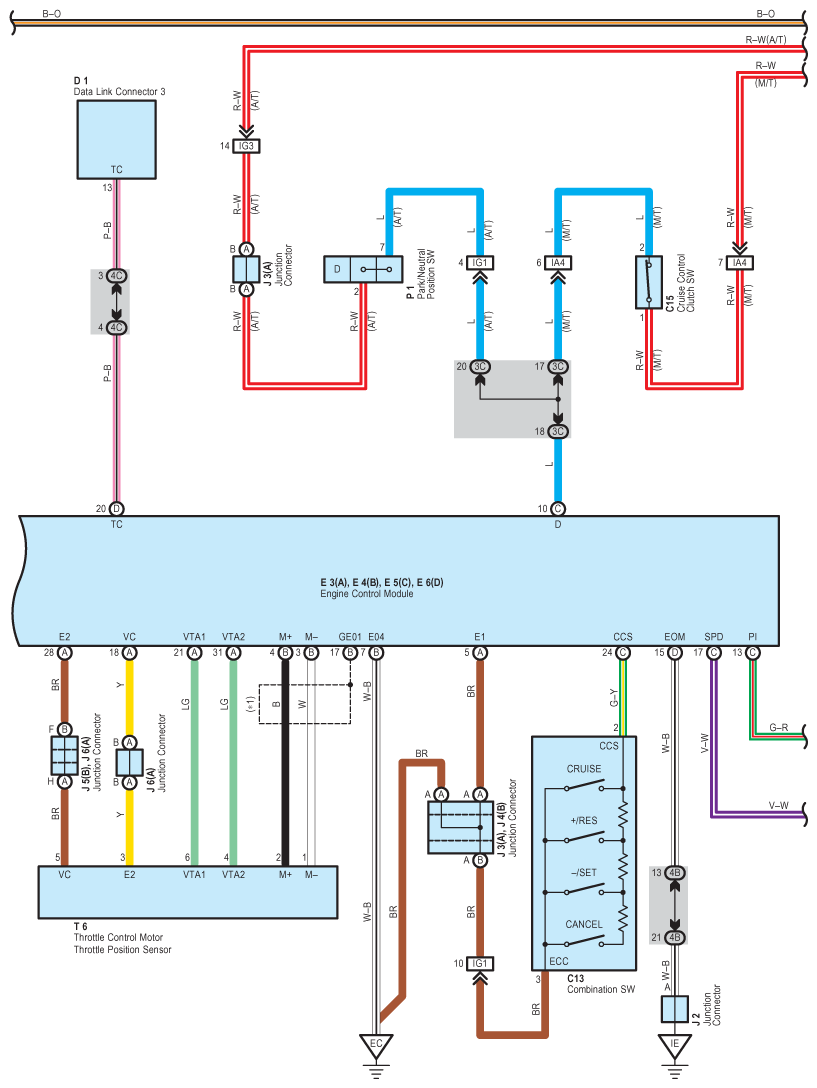

Fig 3: Cruise Control System (For 1ZZ-FE, 2WD) Wiring Diagram (3 Of 4)
G08838198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

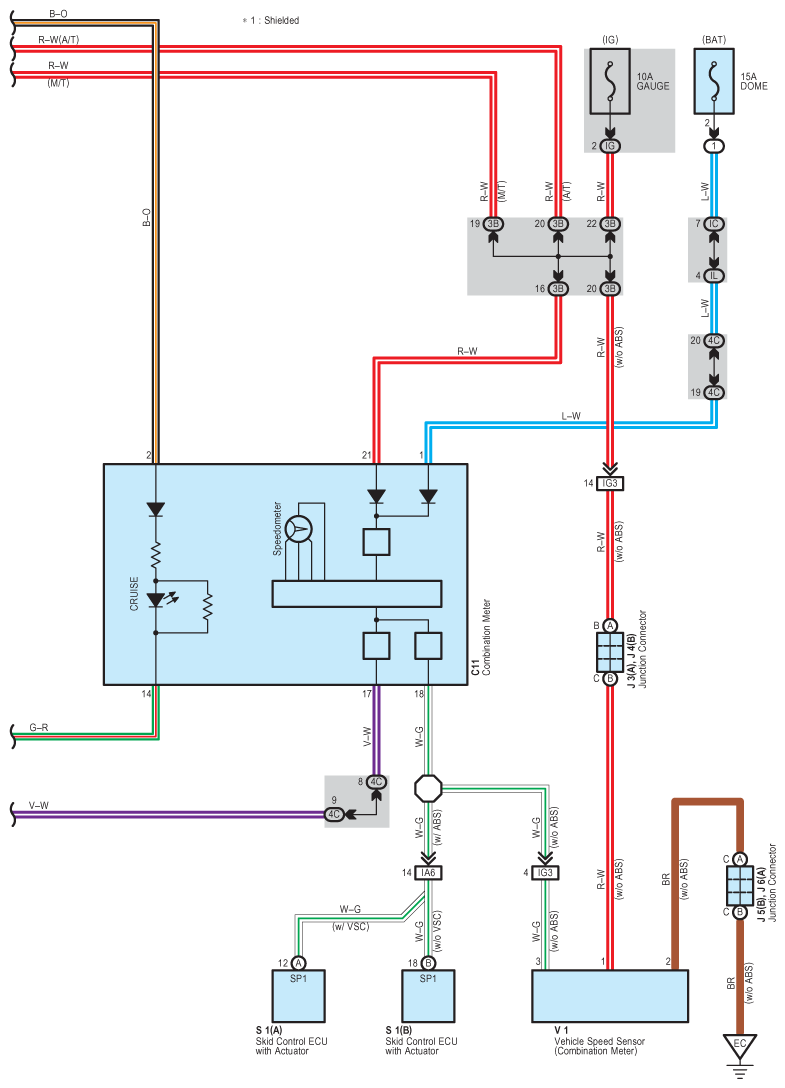

Fig 4: Cruise Control System (For 1ZZ-FE, 2WD) Wiring Diagram (4 Of 4)
G08838199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
