License Plate Light Assembly: Components

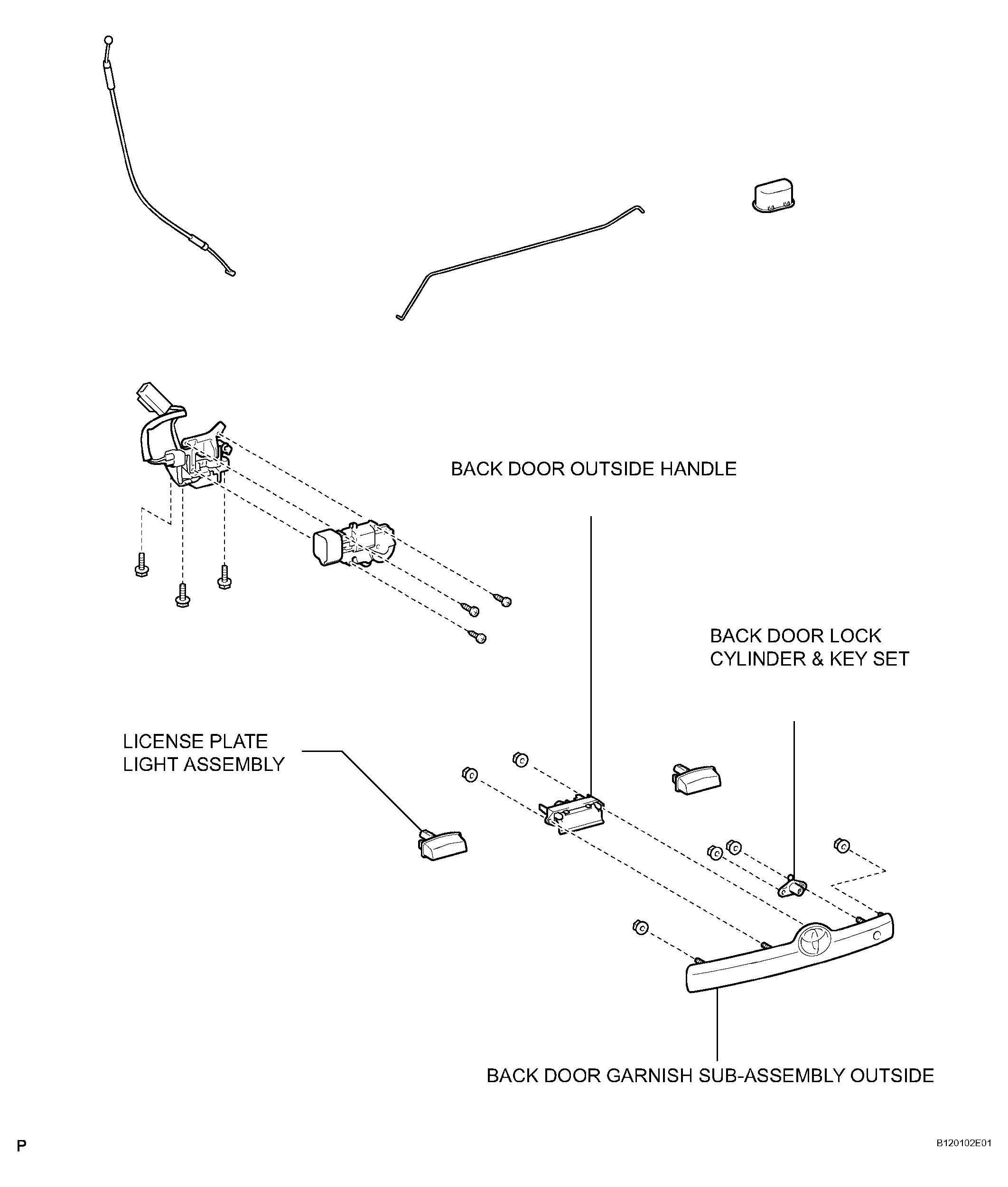

Fig 1: Identifying License Plate Light Assembly Components (1 Of 2)
G04466461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

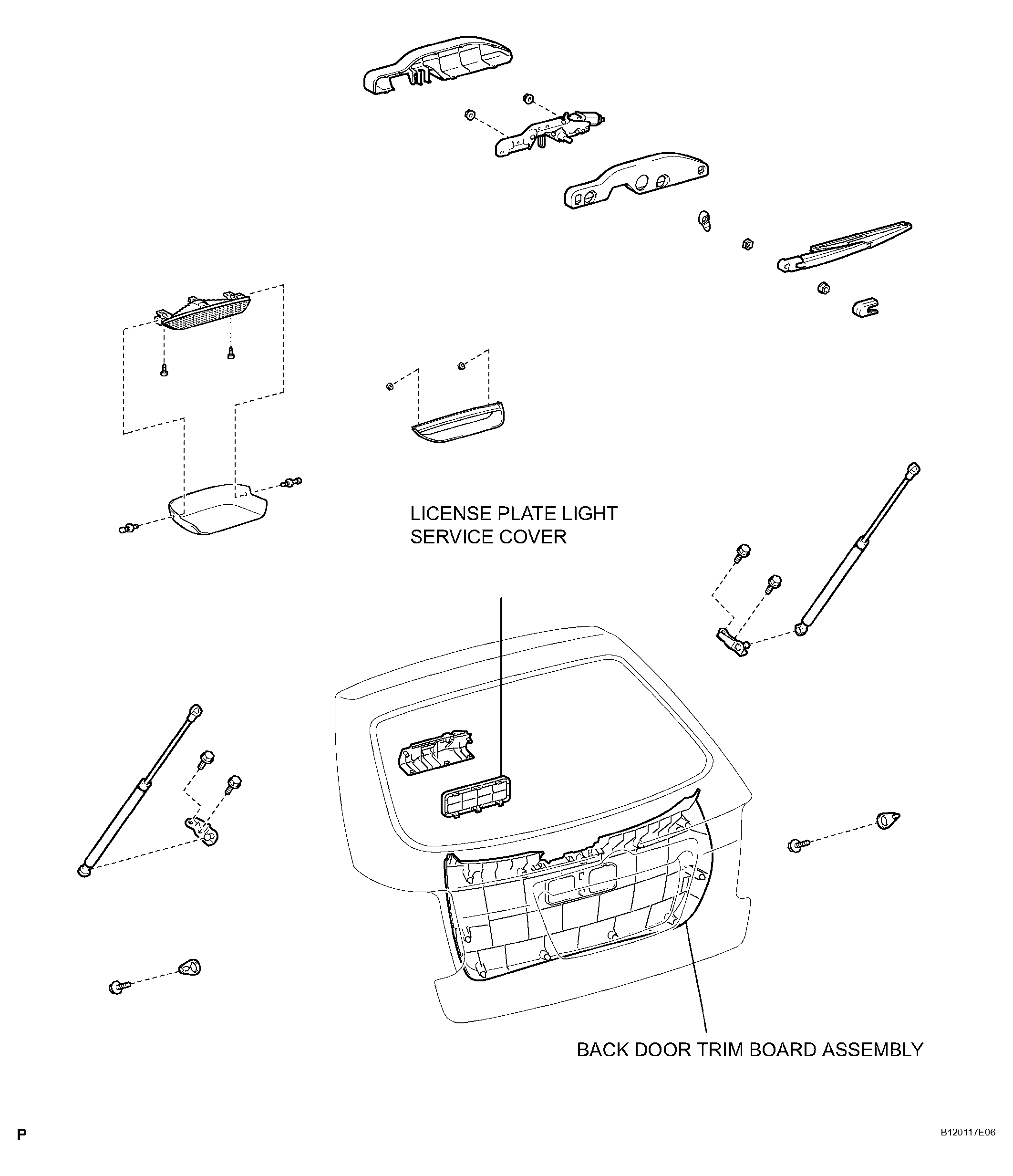

Fig 2: Identifying License Plate Light Assembly Components (2 Of 2)
G04466462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
