Fog Light Assembly: Components

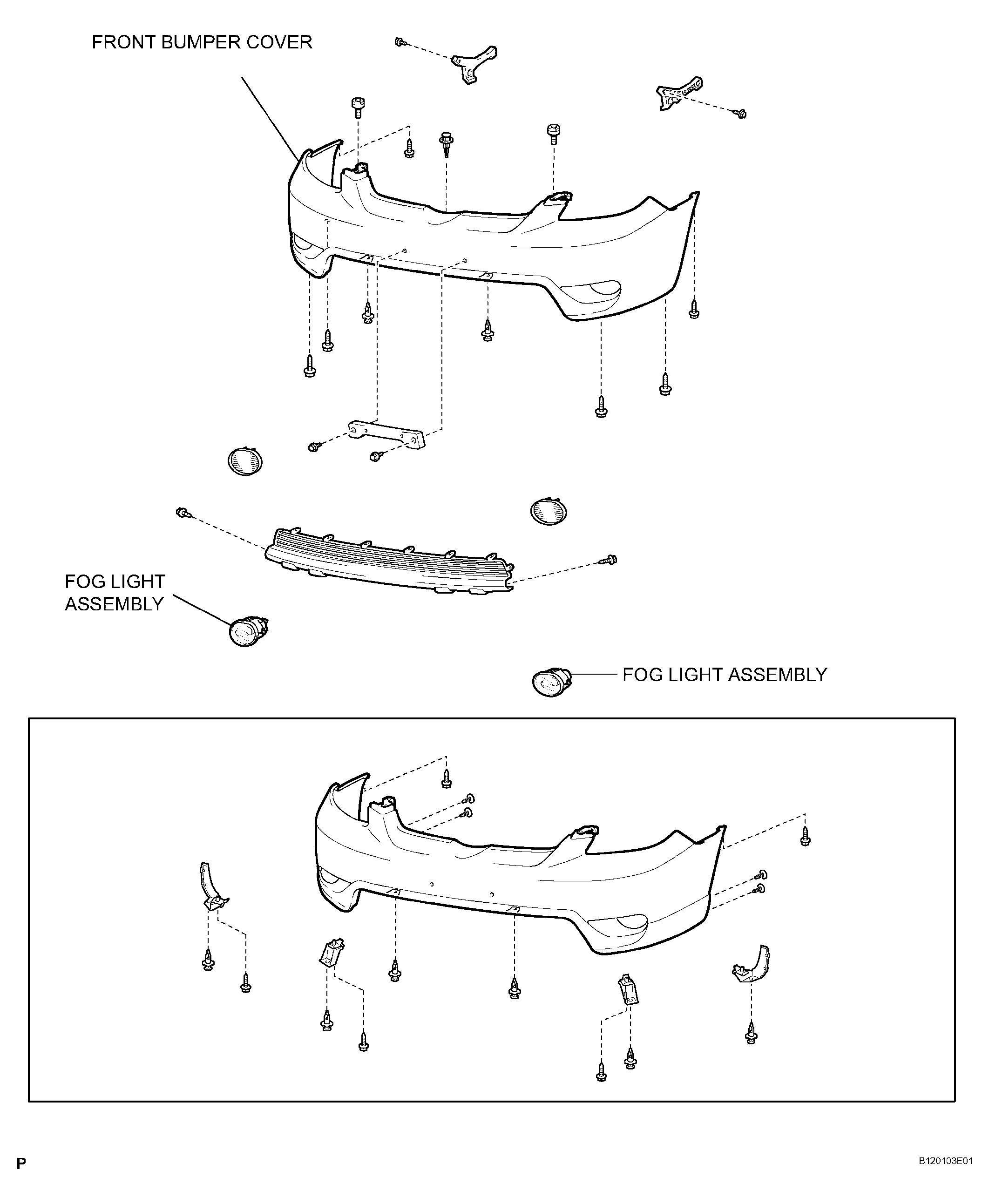

Fig 1: Identifying Fog Light Assembly Components
G04466450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
