ECM Power Source Circuit: Wiring Diagram

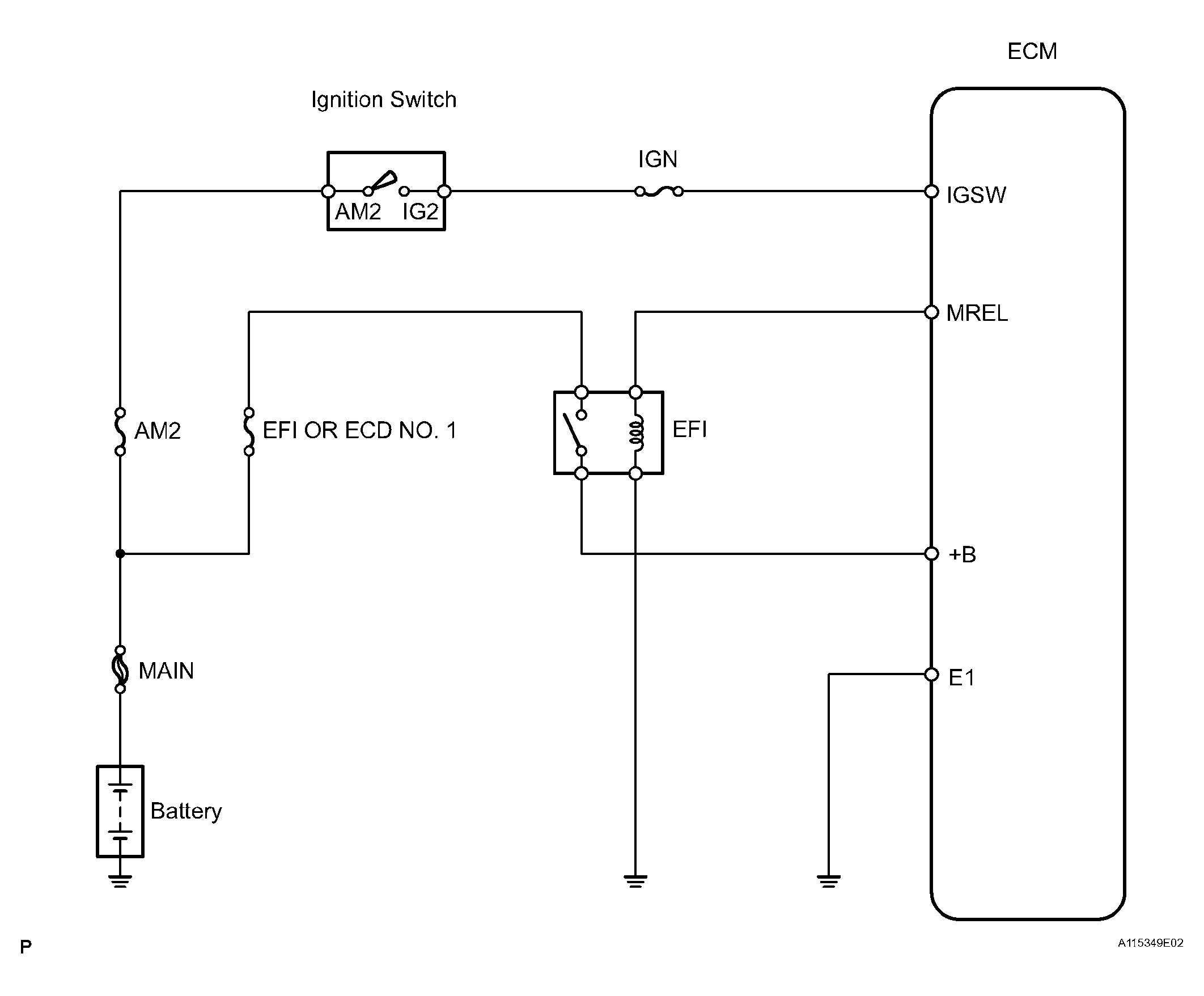

Fig 1: ECM Power Source Circuit Wiring Diagram
G04435477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
