System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
(2005/05-2006/01)

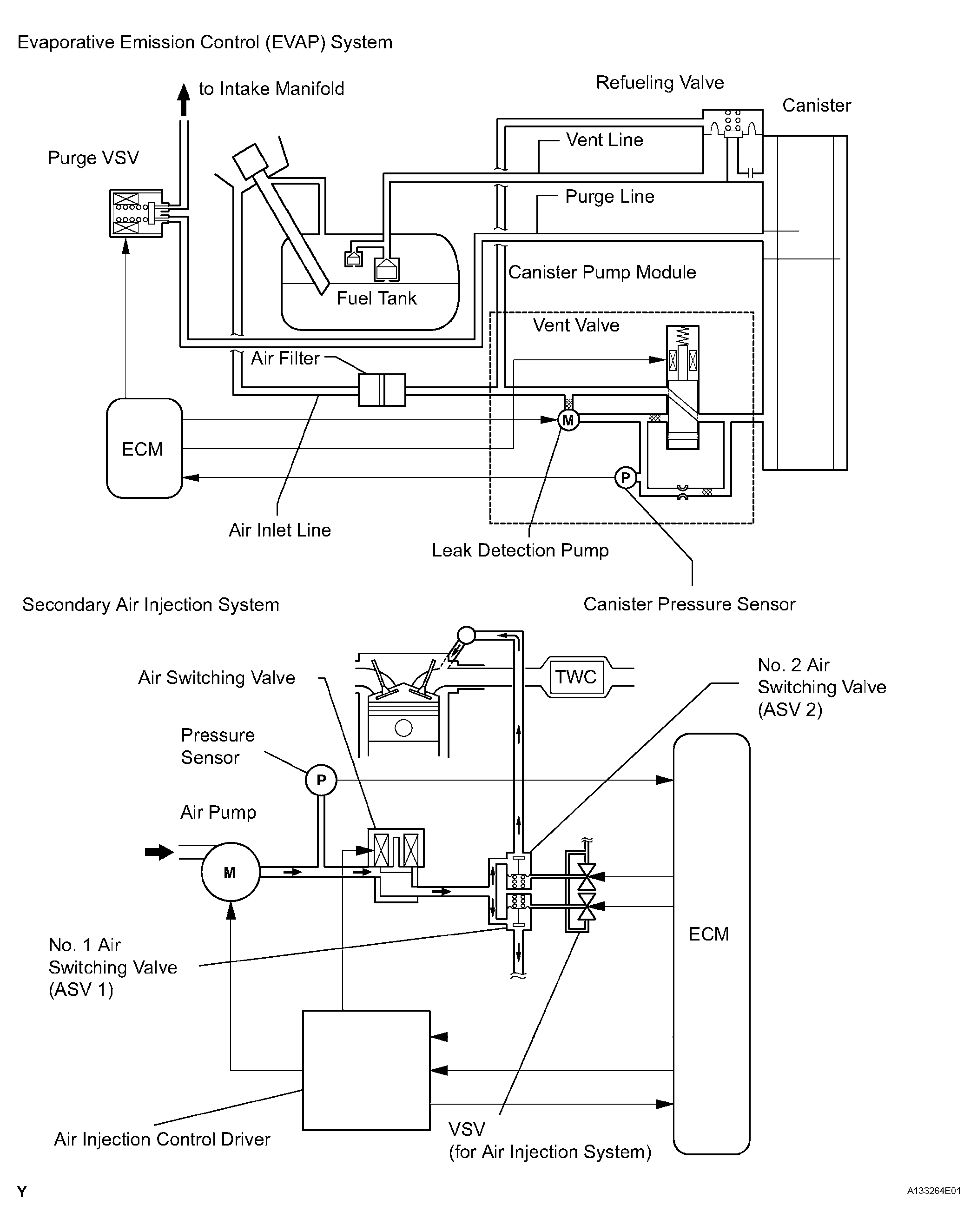

Fig 1: Emission Control System EVAP And Secondary Air Injection System Diagrams (2005/05-2006/01)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(2006/01-)

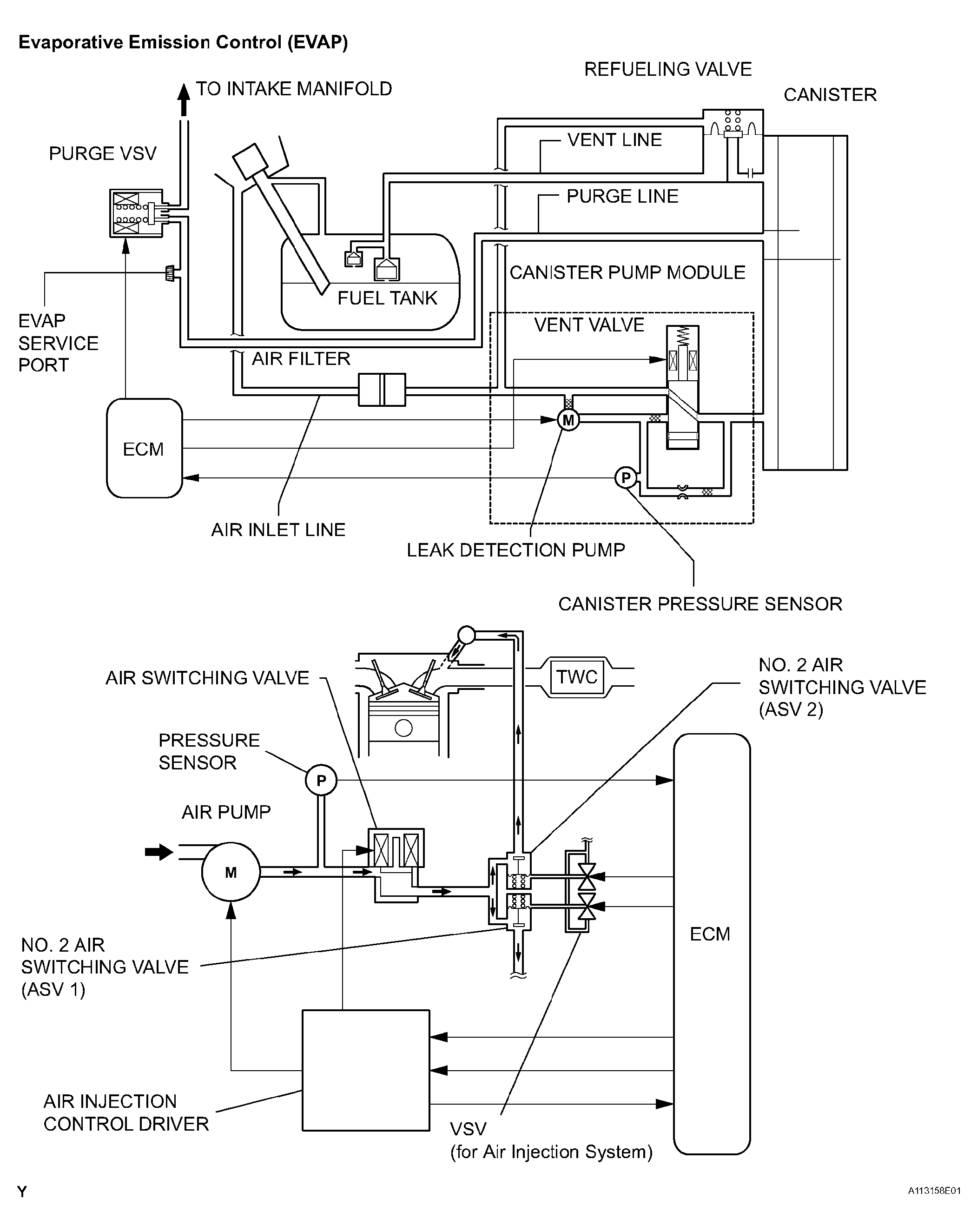

Fig 1: Emission Control System EVAP And Secondary Air Injection System Diagrams (2006/01-)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
