Rear Jam Protection Limit/Pulse Switch RH Circuit: Wiring Diagram

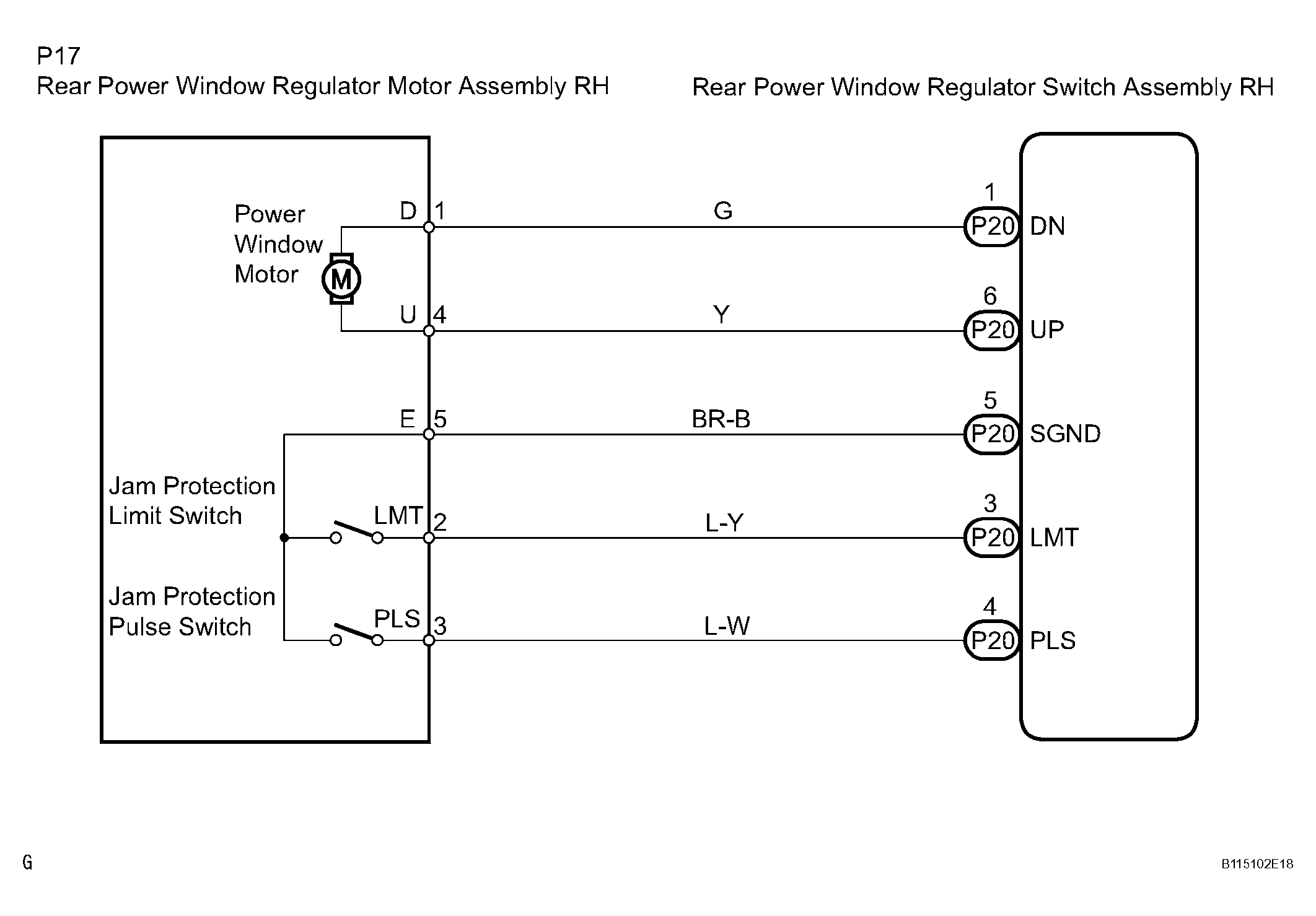

Fig 1: Rear Jam Protection Limit/Pulse Switch RH Circuit Wiring Diagram
G04443752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
