Knock Sensor: Components

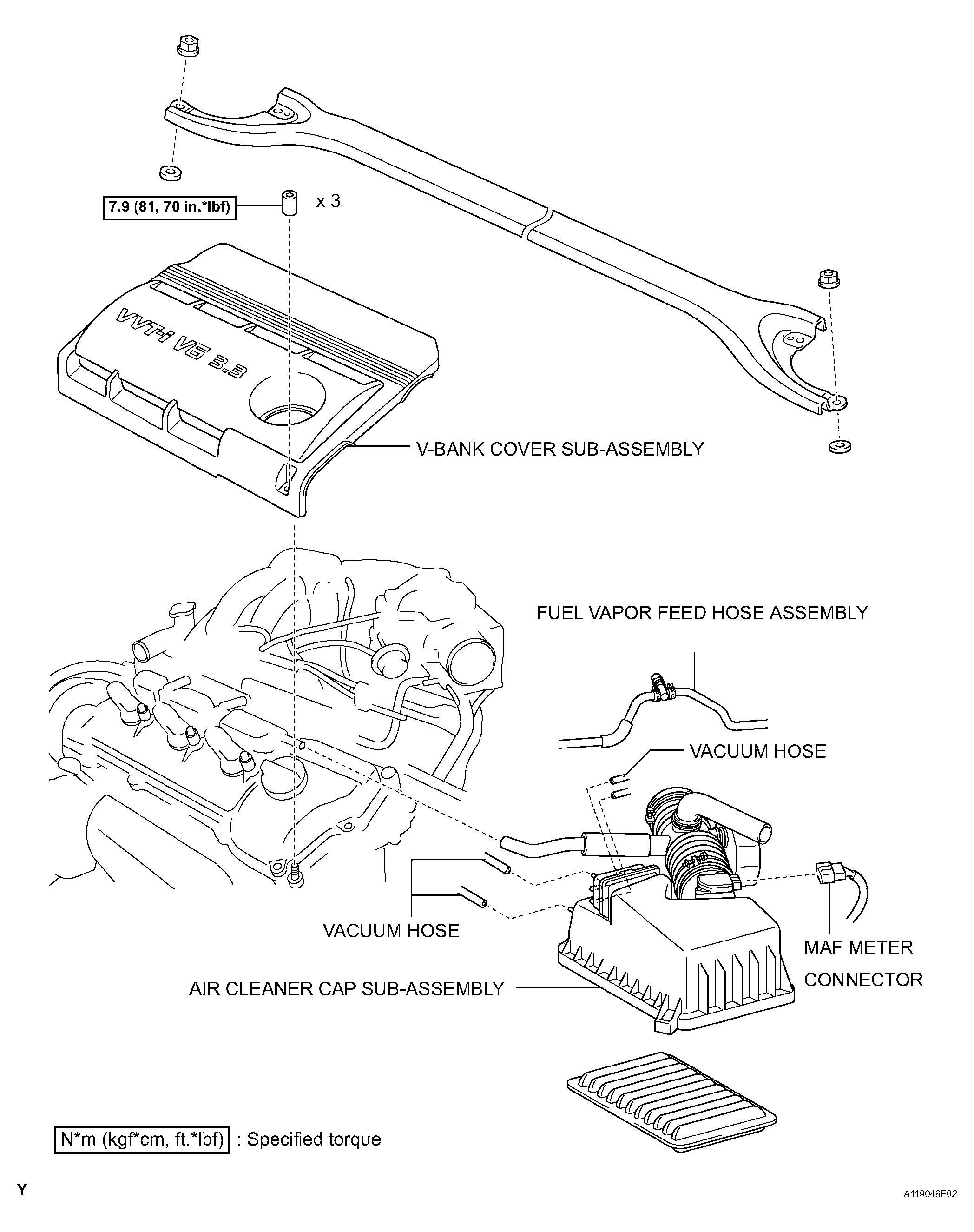

Fig 1: Identifying Knock Sensor Components (1 Of 4)
G04427412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

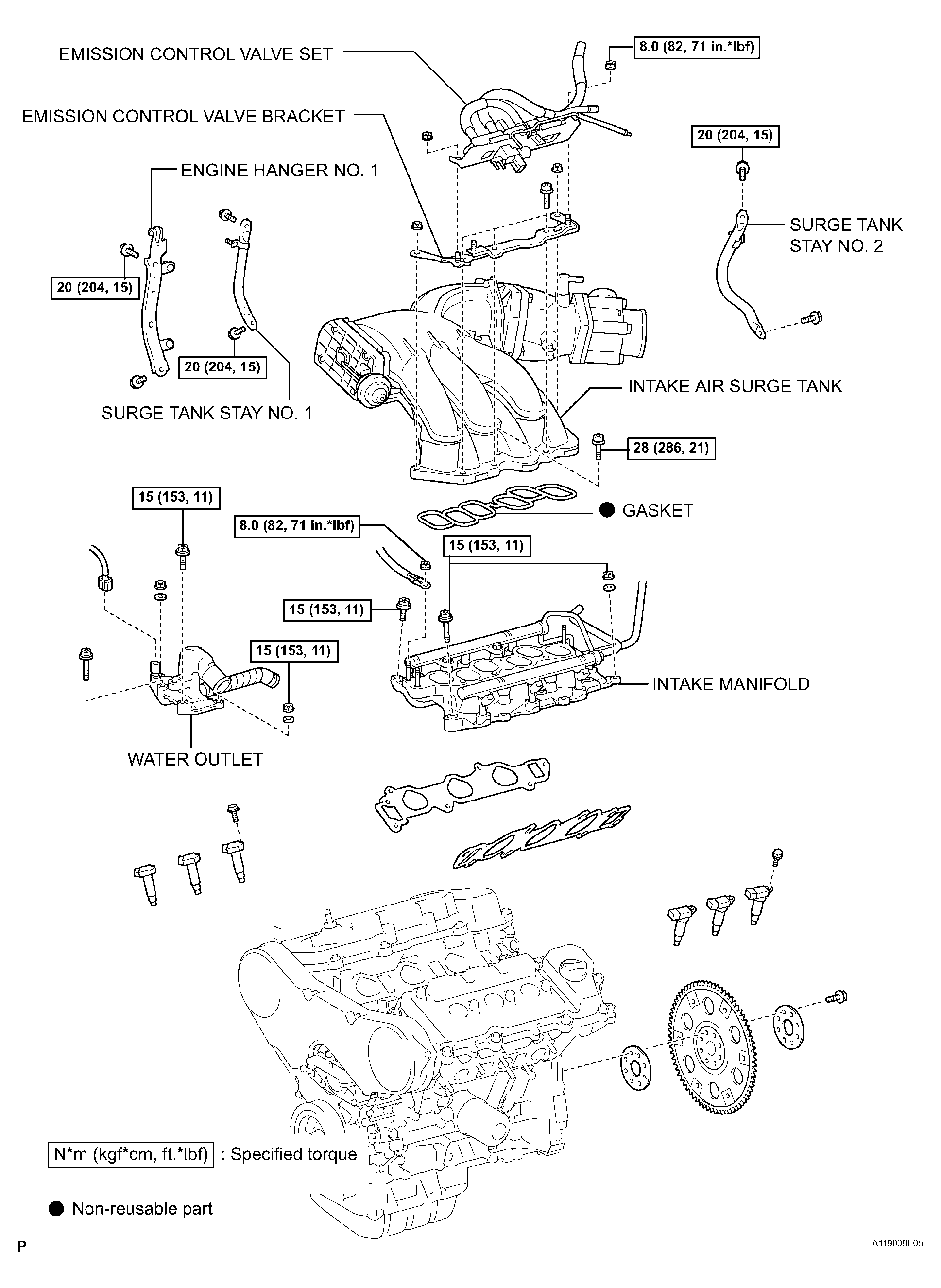

Fig 2: Identifying Knock Sensor Components (2 Of 4)
G04427413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

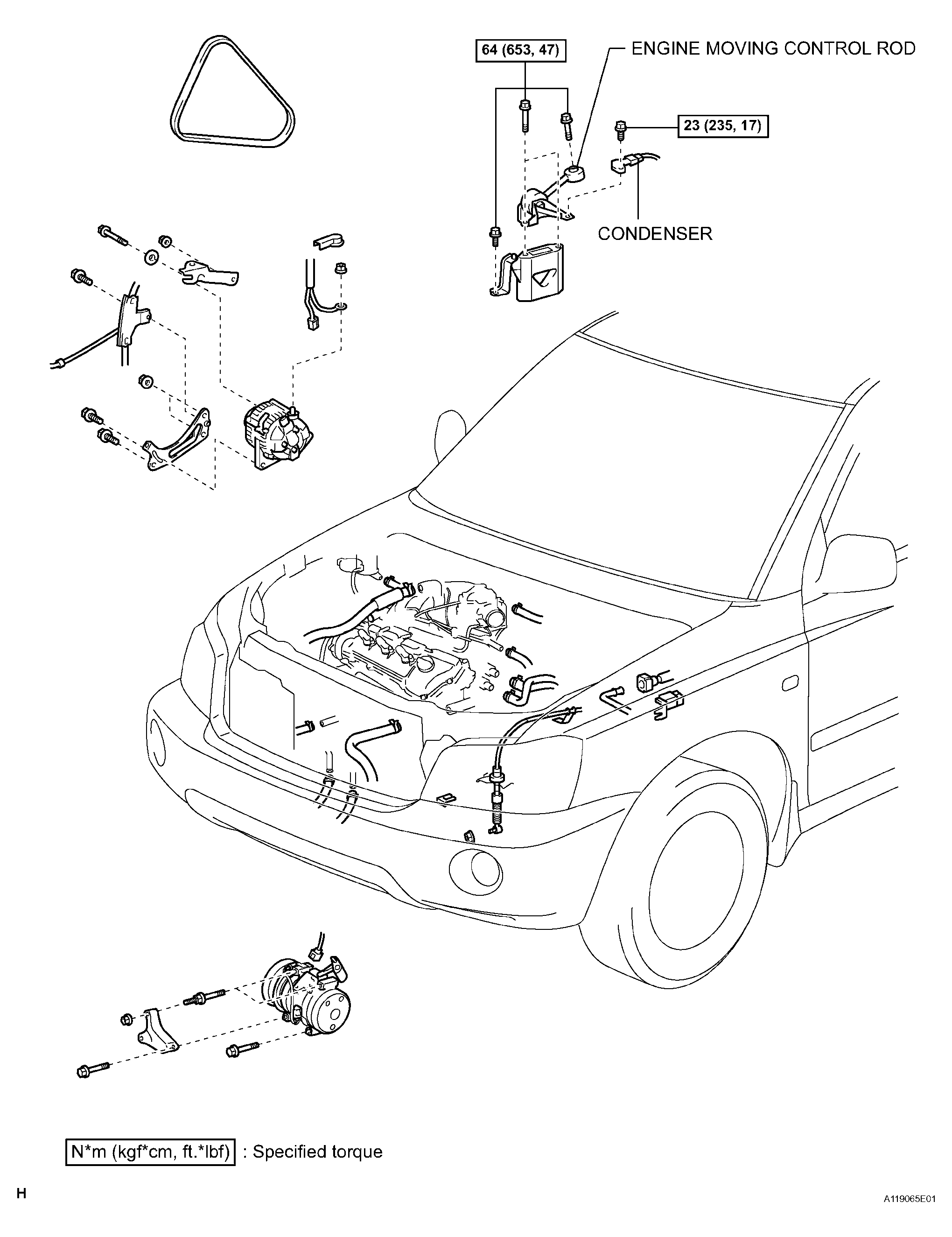

Fig 3: Identifying Knock Sensor Components (3 Of 4)
G04427414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

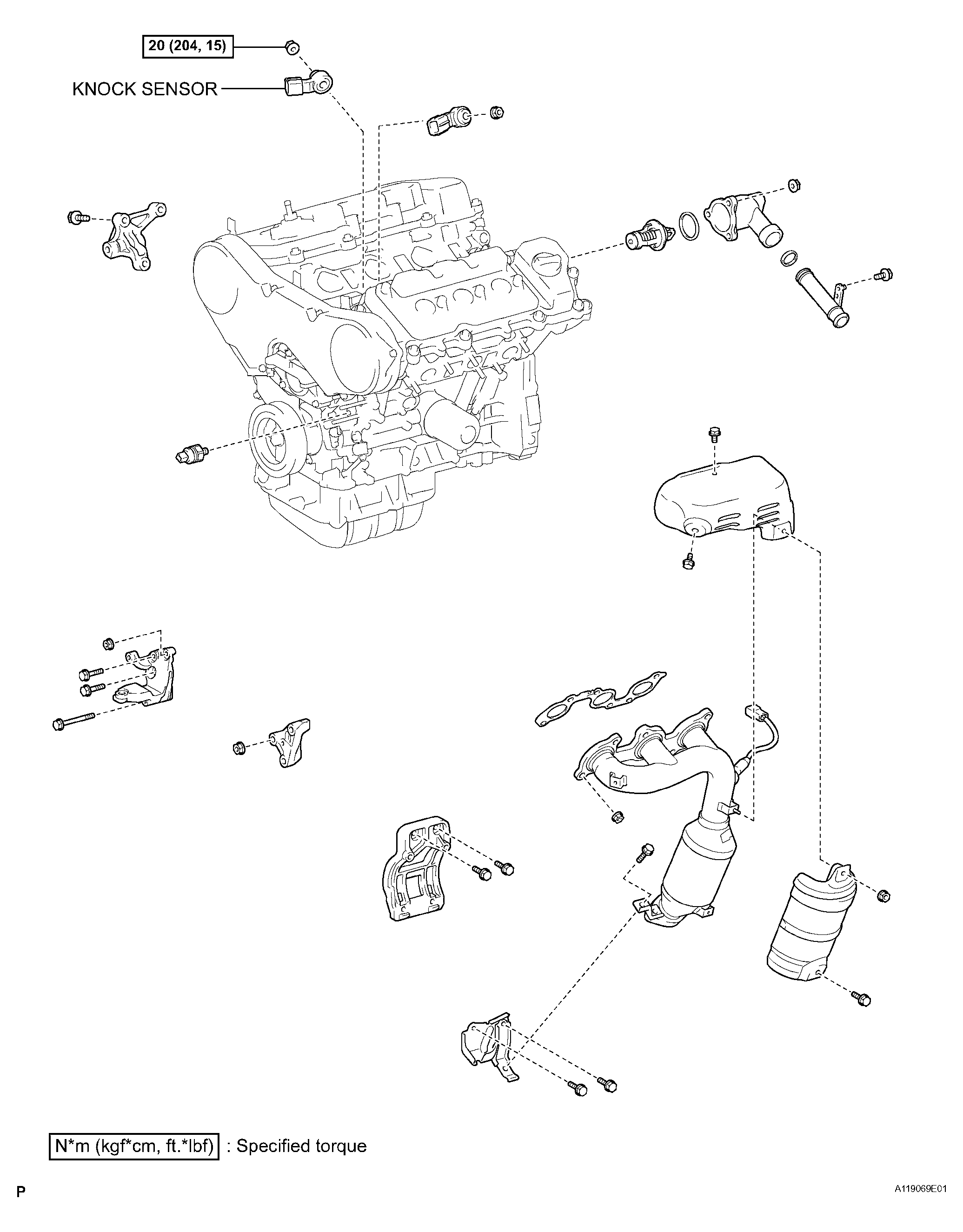

Fig 4: Identifying Knock Sensor Components (4 Of 4)
G04427415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
