Data List

DATA LIST

Data List:

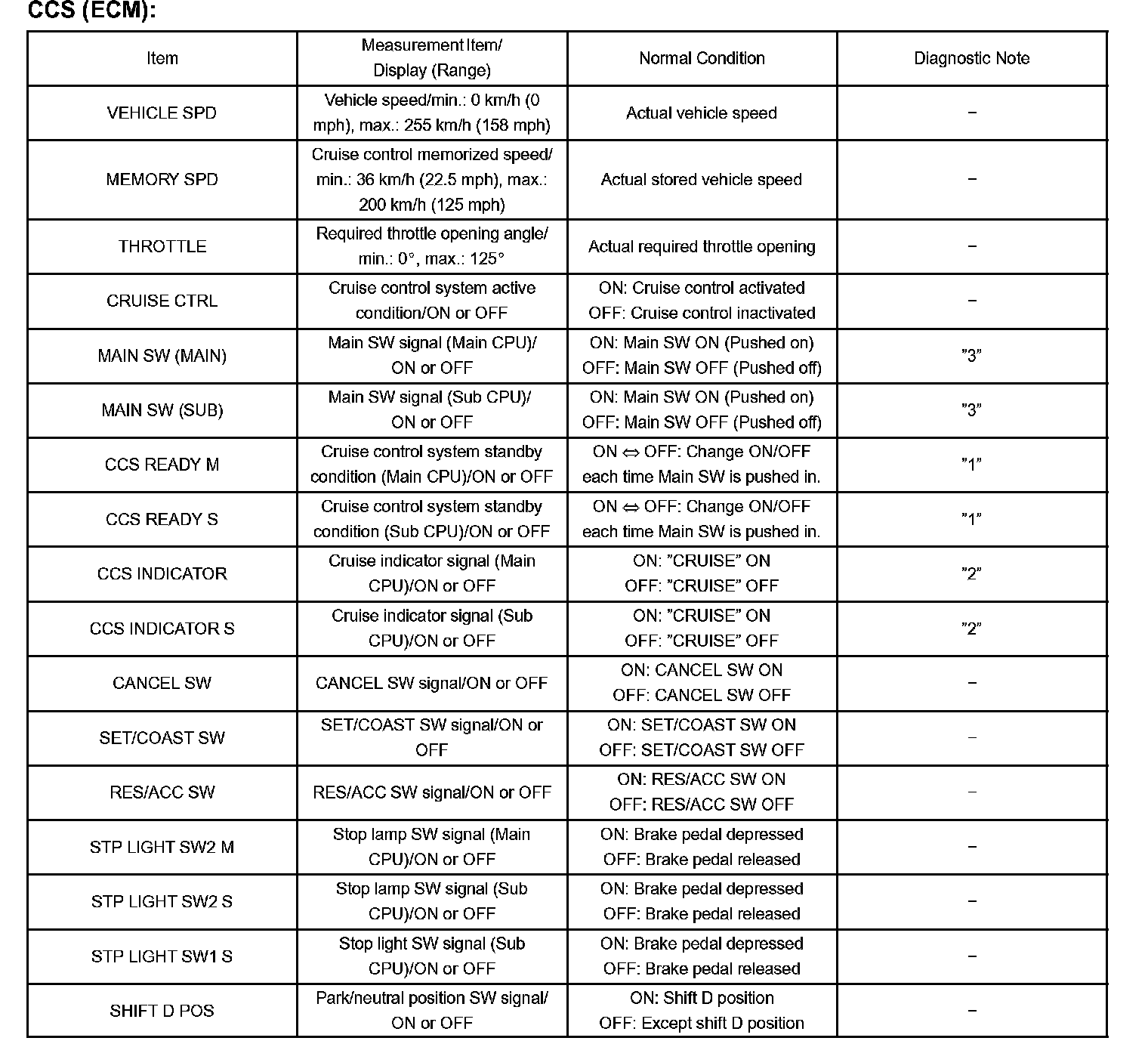

While the hand-held tester is connected to the DLC3 with the ignition switch on, the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.

HINT:
"3" is OK but "1" is NG -> ECM failure
"1" is OK but "2" is NG -> DTC output or ECM failure
"3" is OK but the cruise indicator does not come on -> CRUISE main indicator, wire harness or ECM failure
