Engine Control System (3MZ-FE): ECM: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (for Coupe) (See step 2 in  REMOVAL  )
  3. REMOVE FRONT DOOR SCUFF PLATE RH (for Convertible) (See step 2 in  REMOVAL  )
  4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Coupe) (See step 4 in  REMOVAL  )
  5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (for Convertible) (See step 4 in  REMOVAL  )
  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See step 33 in  REMOVAL  )
  7. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See step 25 in  REMOVAL  )
  8. REMOVE ECM
    1. Remove the 2 wire harness clamps.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts and ECM.

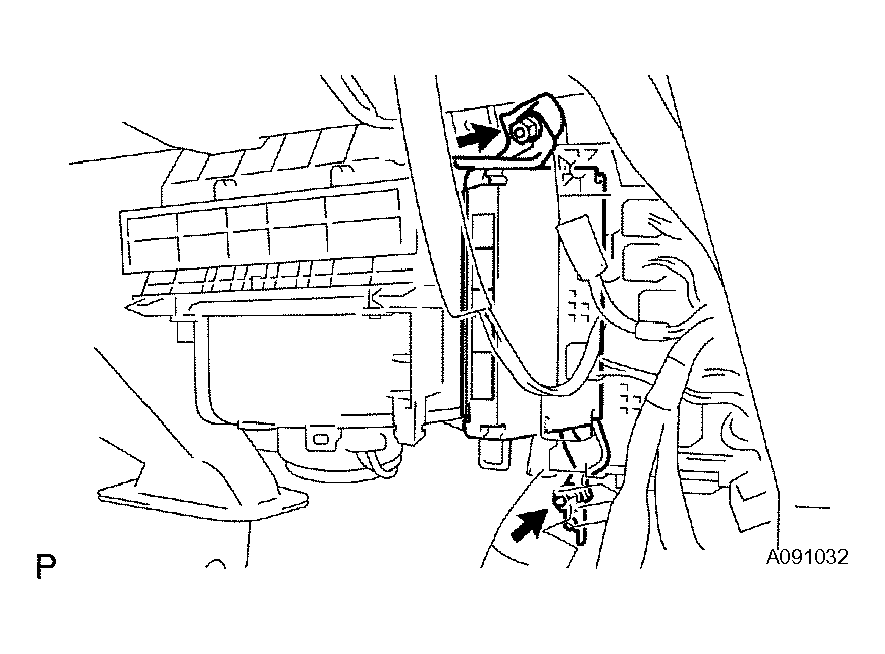

      Fig 1: Removing ECM
      G04382700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ECM BRACKET
    1. Remove the 2 screws and ECM bracket.
      Fig 2: Removing ECM Bracket
      G04382701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE ECM BRACKET NO. 2
    1. Remove the 2 screws and ECM bracket.
      Fig 3: Removing ECM Bracket No. 2
      G04382702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
