Power Outlet and Cigarette Lighter: Notes

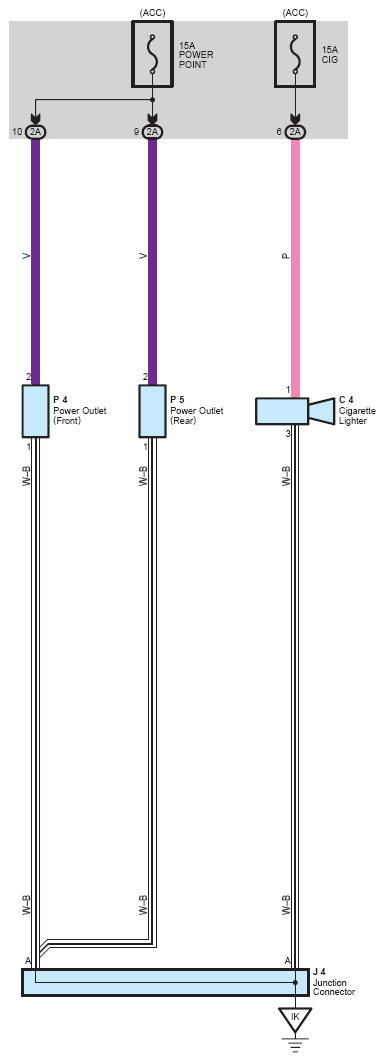

Fig 1: Power Outlet And Cigarette Lighter System Wiring Diagram
G08775649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
