Multiplex Communication System - BEAN: Notes

Fig 1: Multiplex Communication System Wiring Diagram - BEAN (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

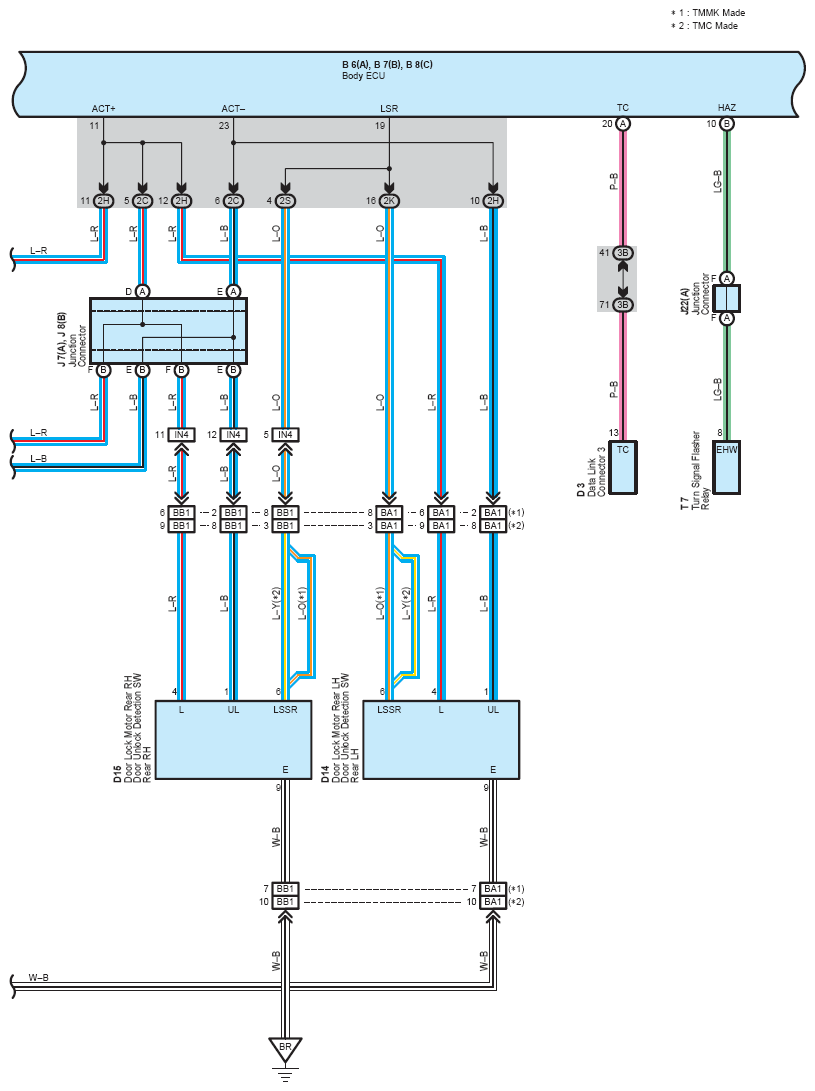

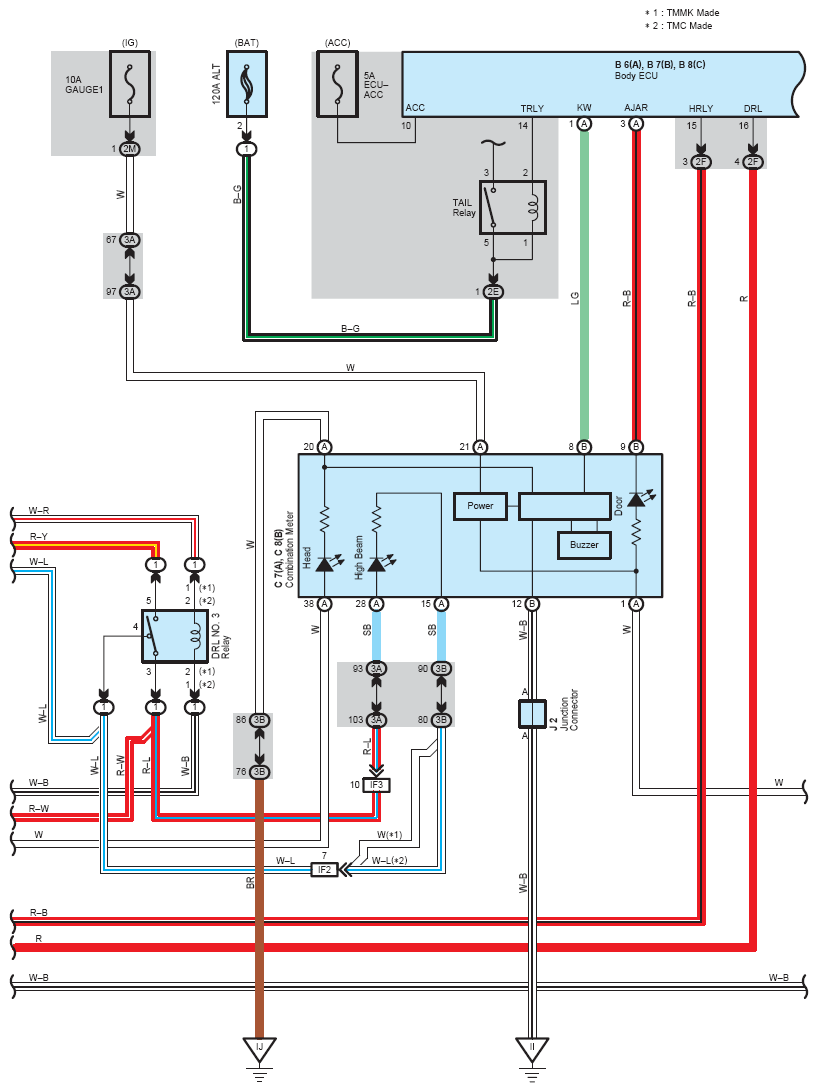

Fig 2: Multiplex Communication System Wiring Diagram - BEAN (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

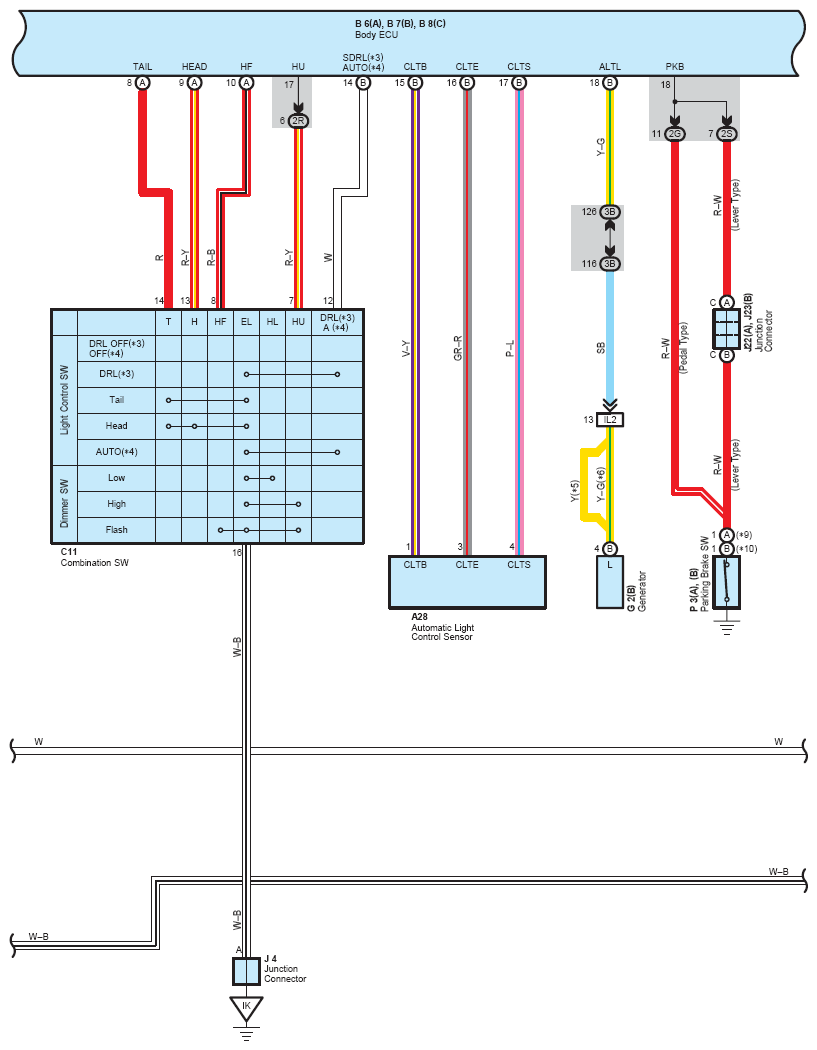

Fig 3: Multiplex Communication System Wiring Diagram - BEAN (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

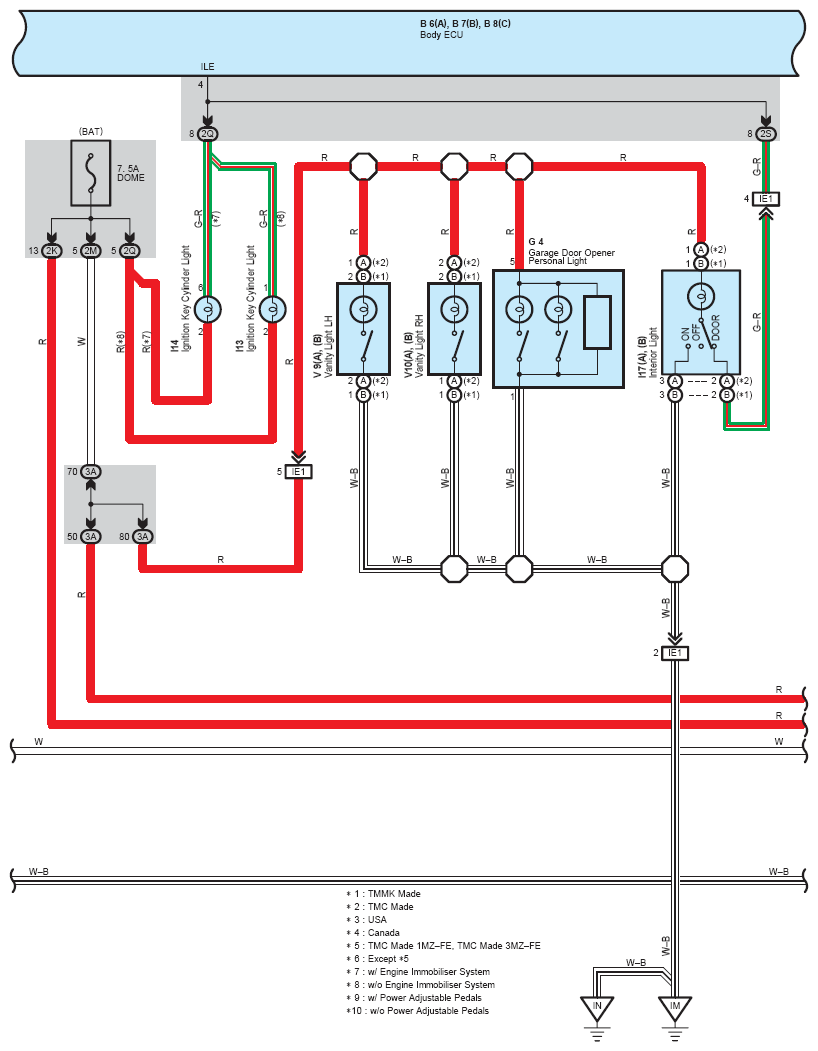

Fig 4: Multiplex Communication System Wiring Diagram - BEAN (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

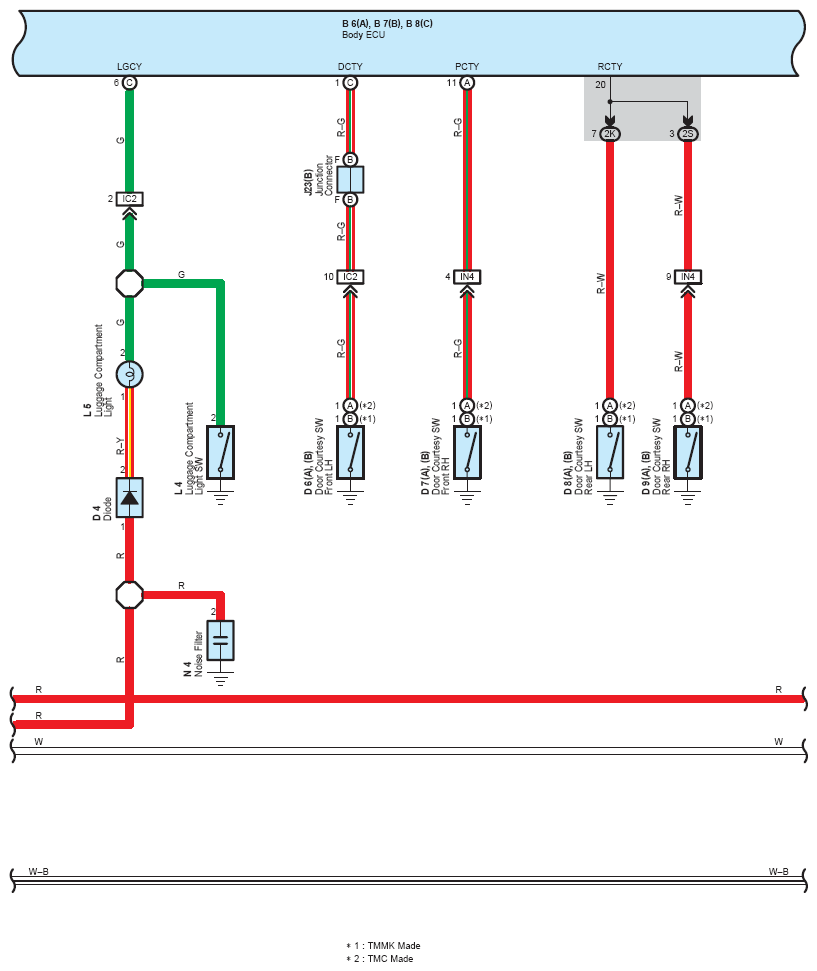

Fig 5: Multiplex Communication System Wiring Diagram - BEAN (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

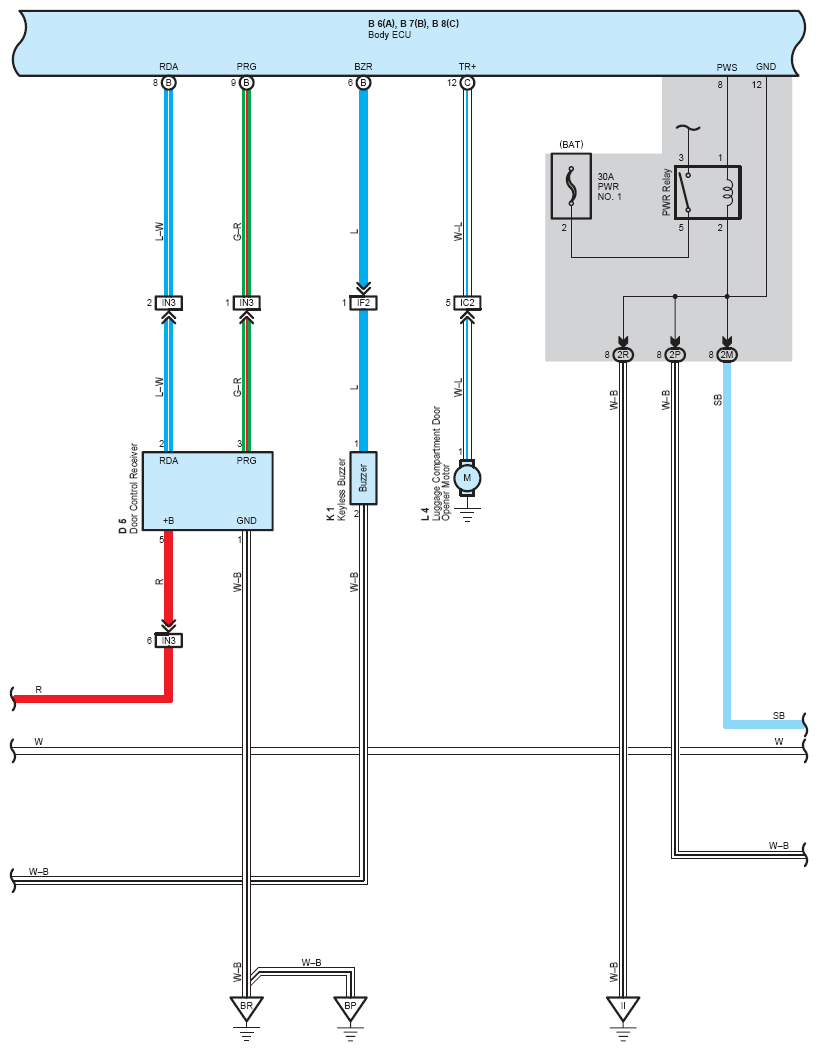

Fig 6: Multiplex Communication System Wiring Diagram - BEAN (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

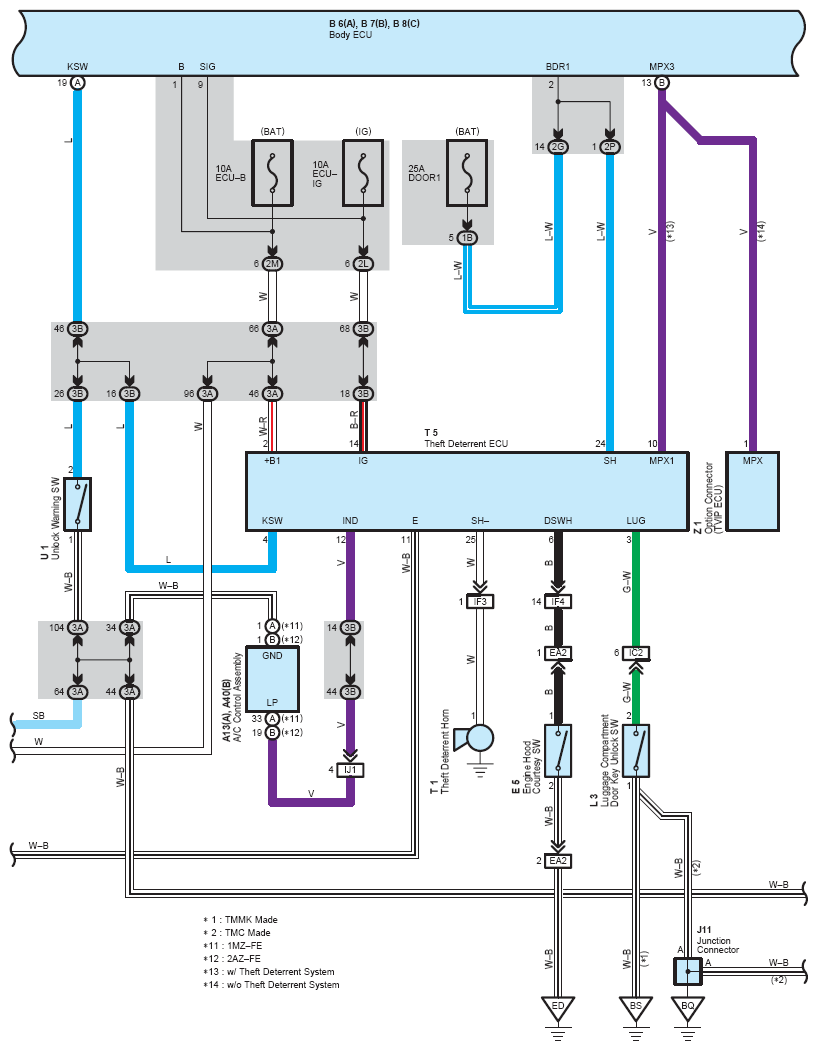

Fig 7: Multiplex Communication System Wiring Diagram - BEAN (7 Of 10)

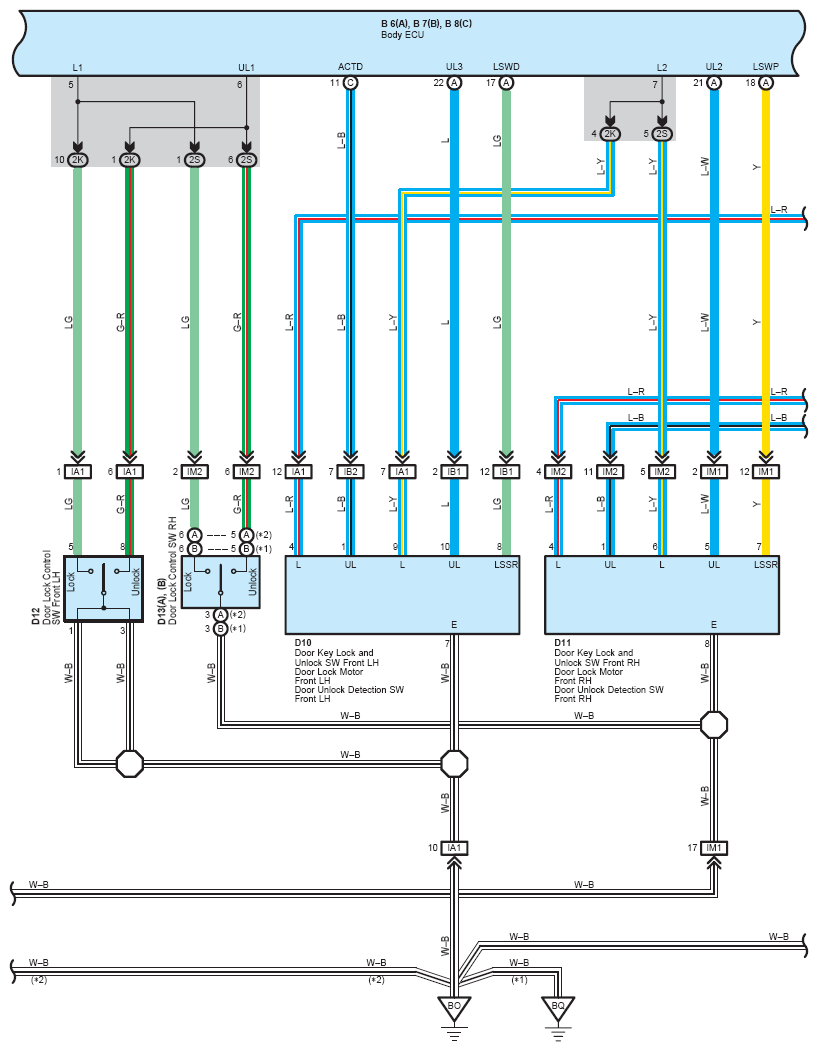

Fig 8: Multiplex Communication System Wiring Diagram - BEAN (8 Of 10)

Fig 9: Multiplex Communication System Wiring Diagram - BEAN (9 Of 10)

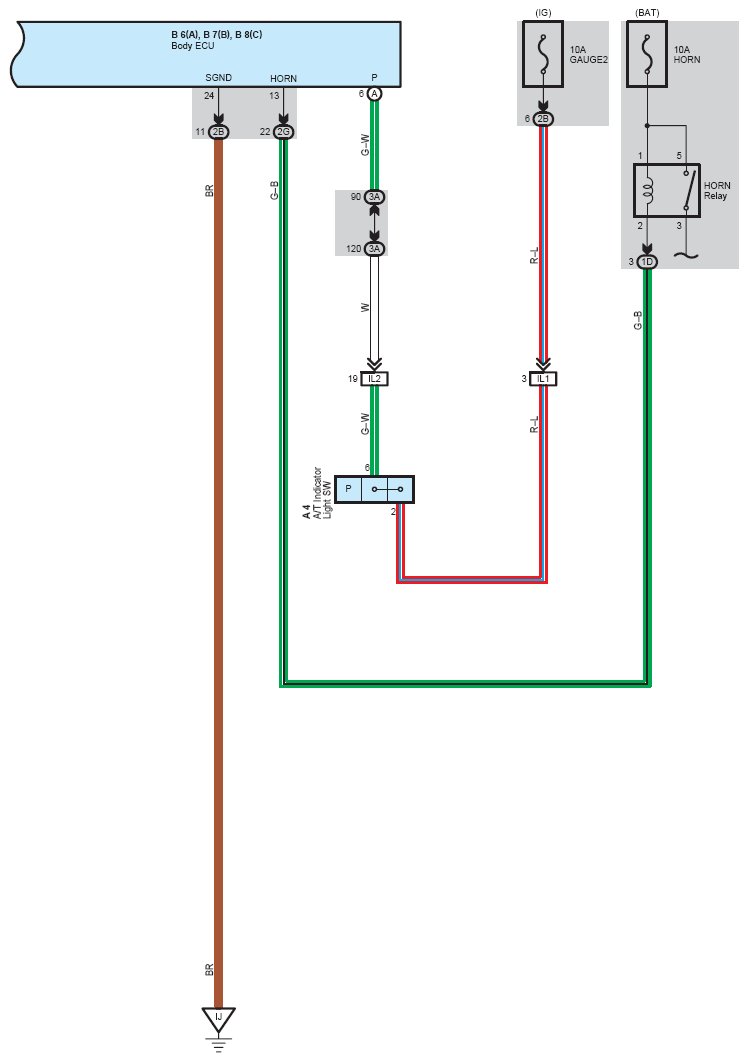

Fig 10: Multiplex Communication System Wiring Diagram - BEAN (10 Of 10)
