Automatic Air Conditioning for 1MZ-FE
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Air Conditioning for 1MZ-FE: Notes

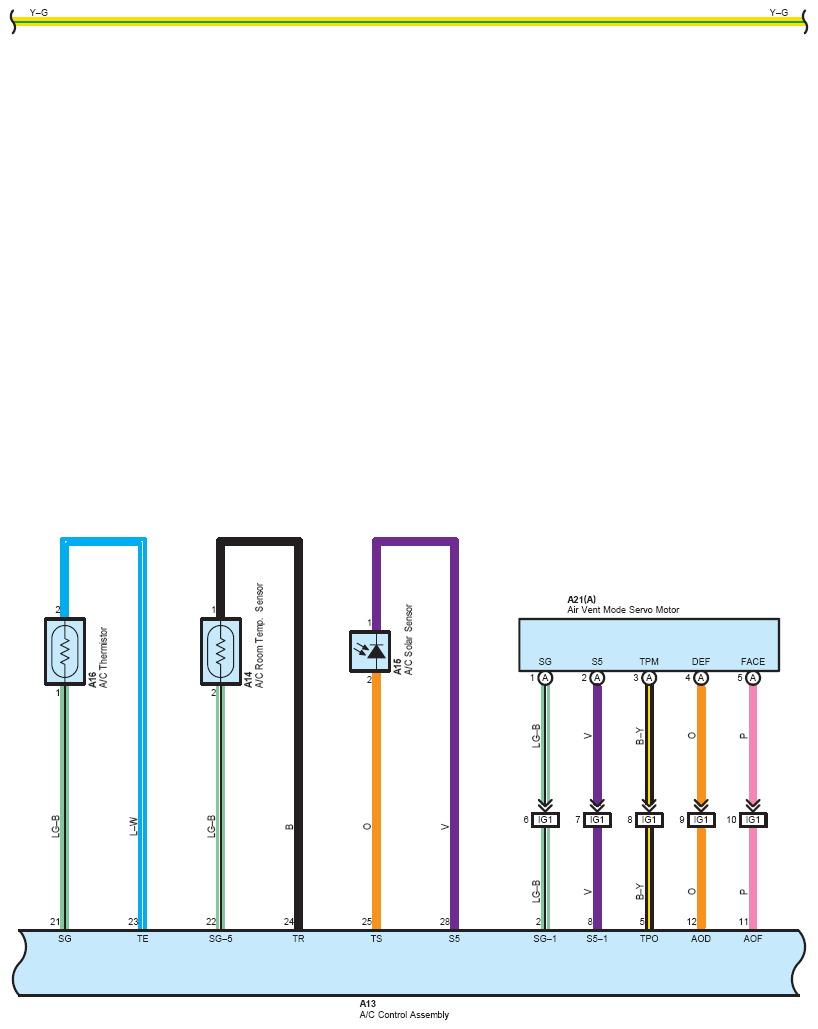

Fig 1: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

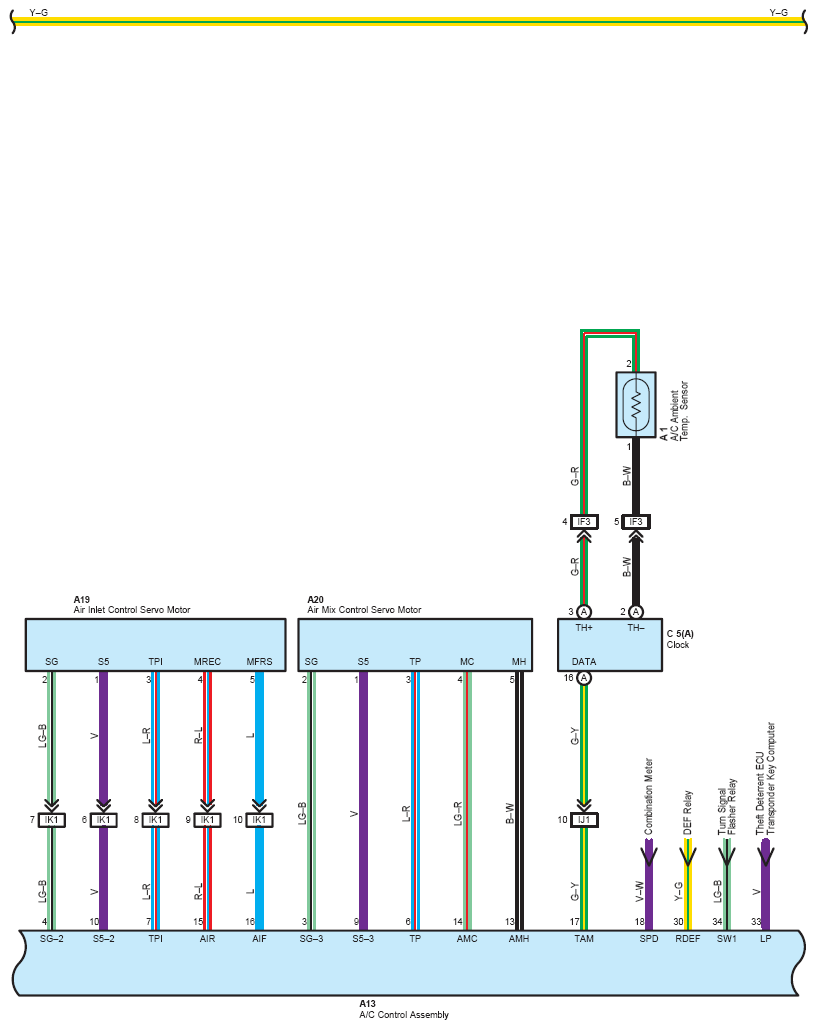

Fig 2: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

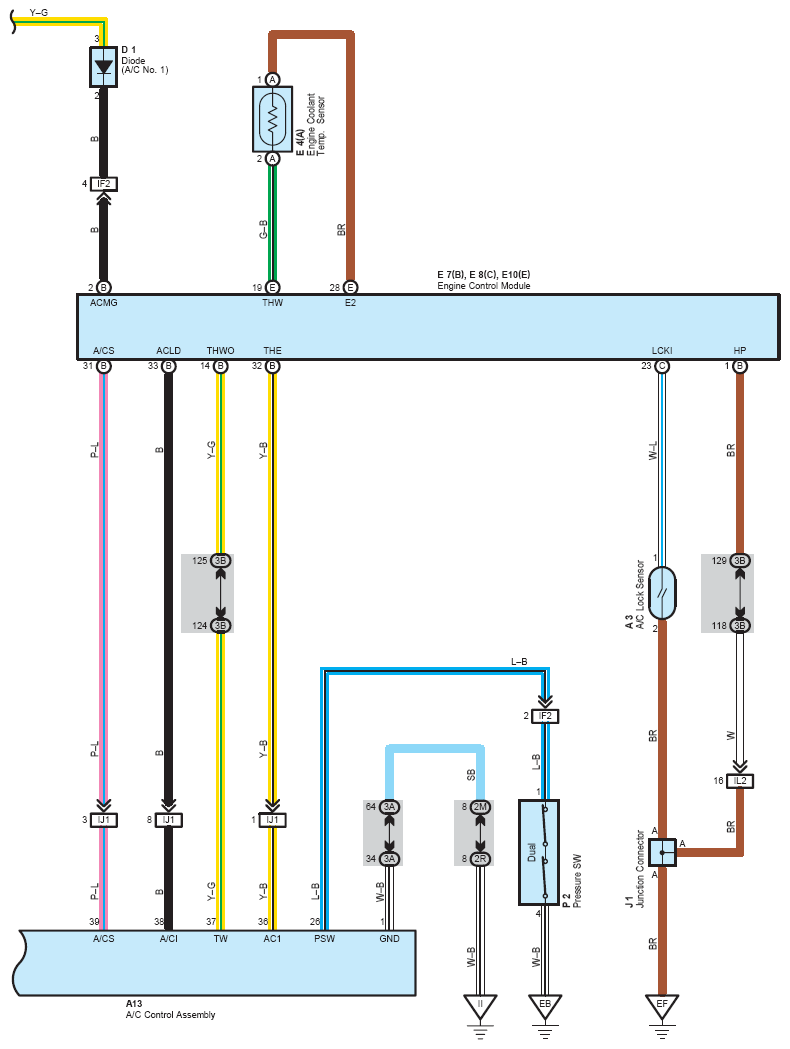

Fig 3: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

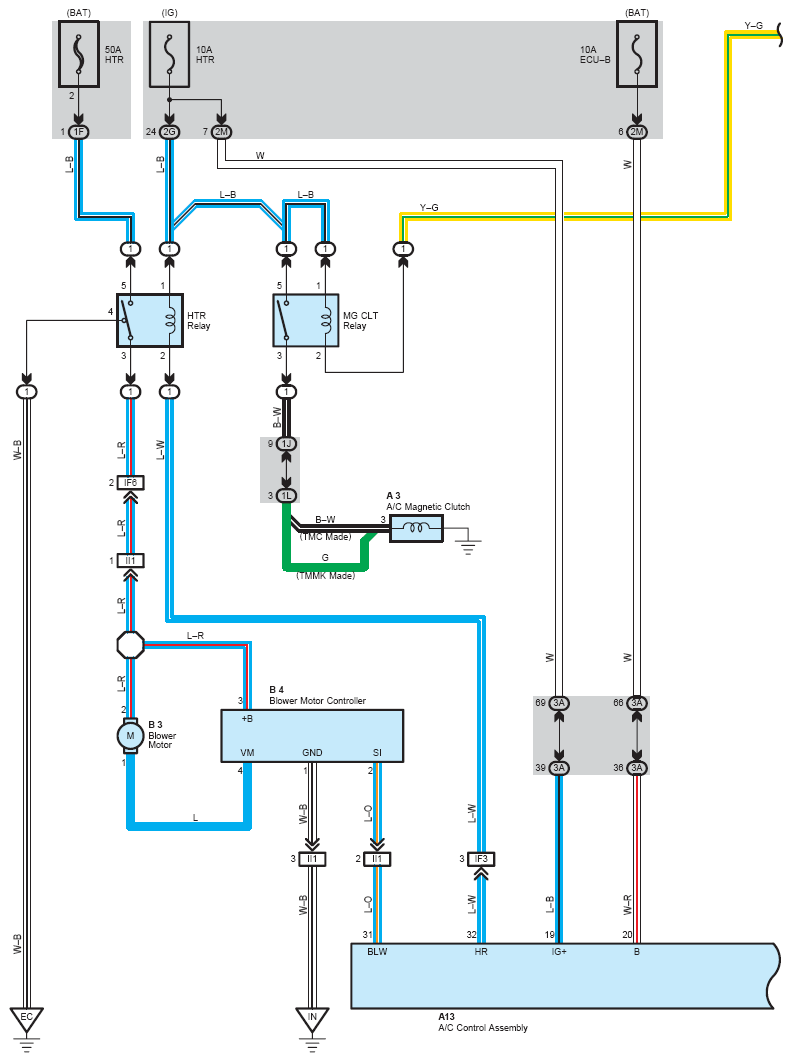

Fig 4: Automatic Air Conditioning System Wiring Diagram - 1MZ-FE; (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
