Automatic Transaxle ASSY (U151E): Components

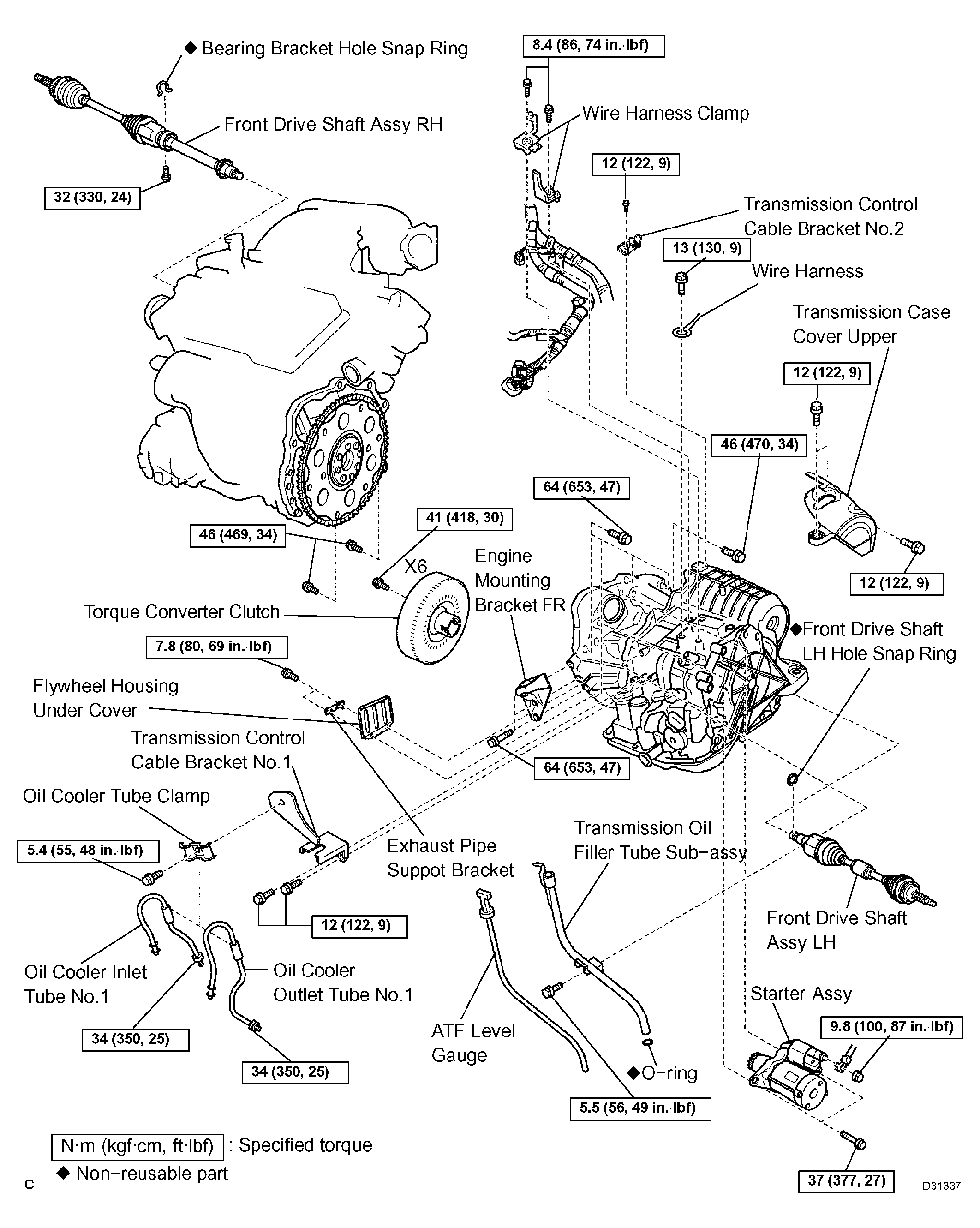

Fig 1: Identifying Automatic Transaxle Assy (U151E) Components
G04393235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
