Engine Control System SFI (2UZ-FE) - Diagnostics - Introduction
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

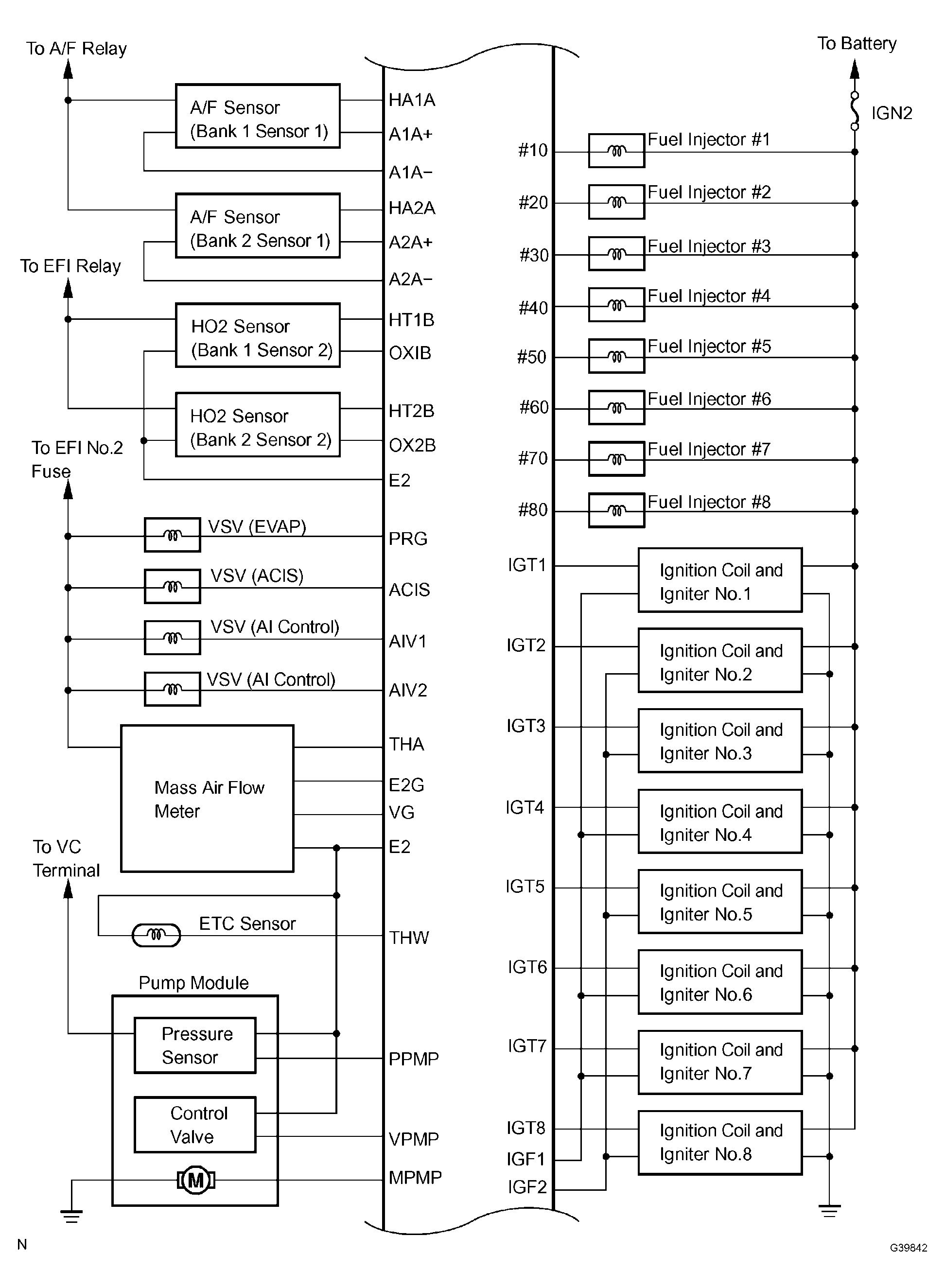

Fig 1: Identifying SFI System Diagram - 2UZ-FE (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

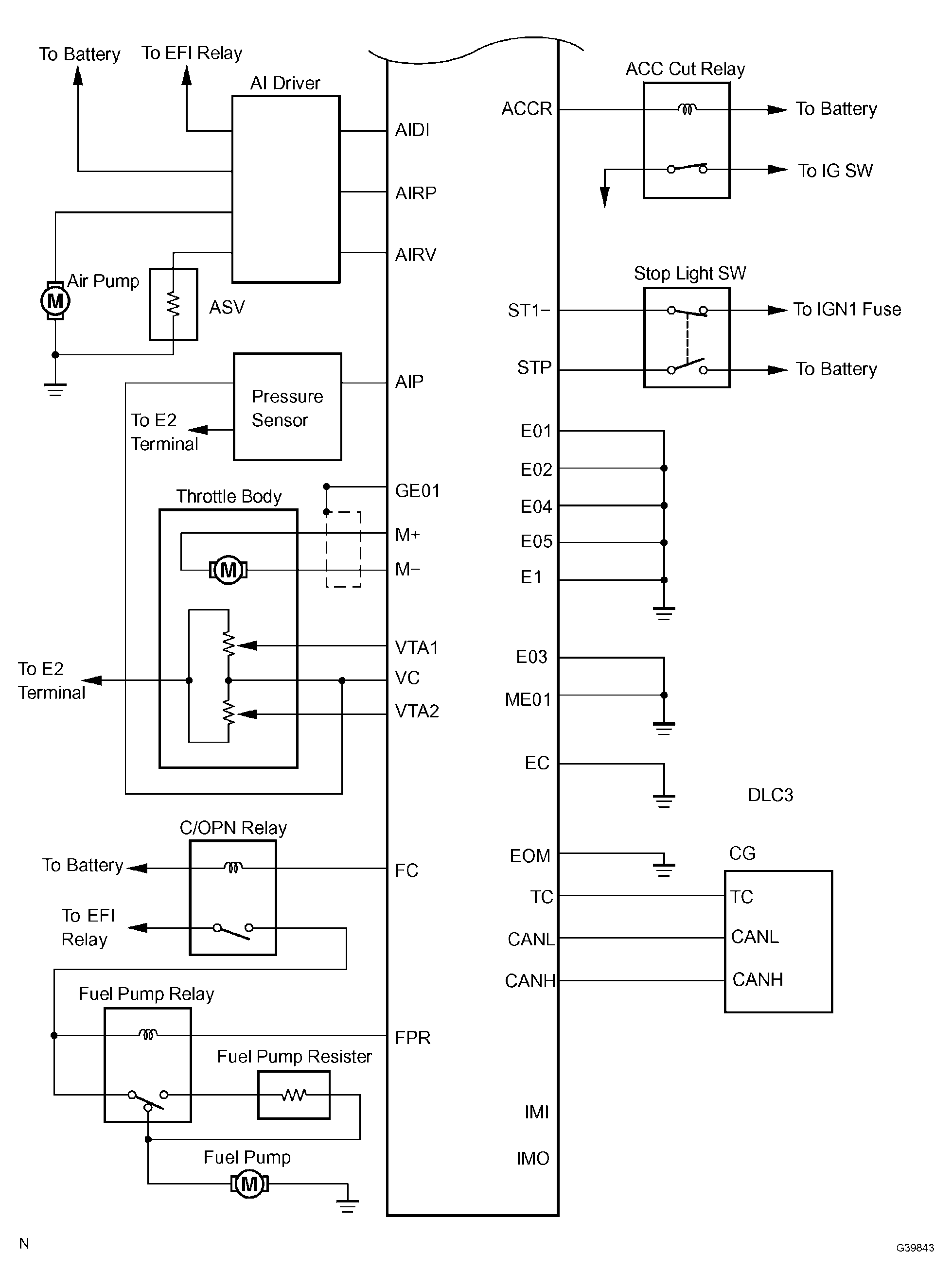

Fig 2: Identifying SFI System Diagram - 2UZ-FE (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

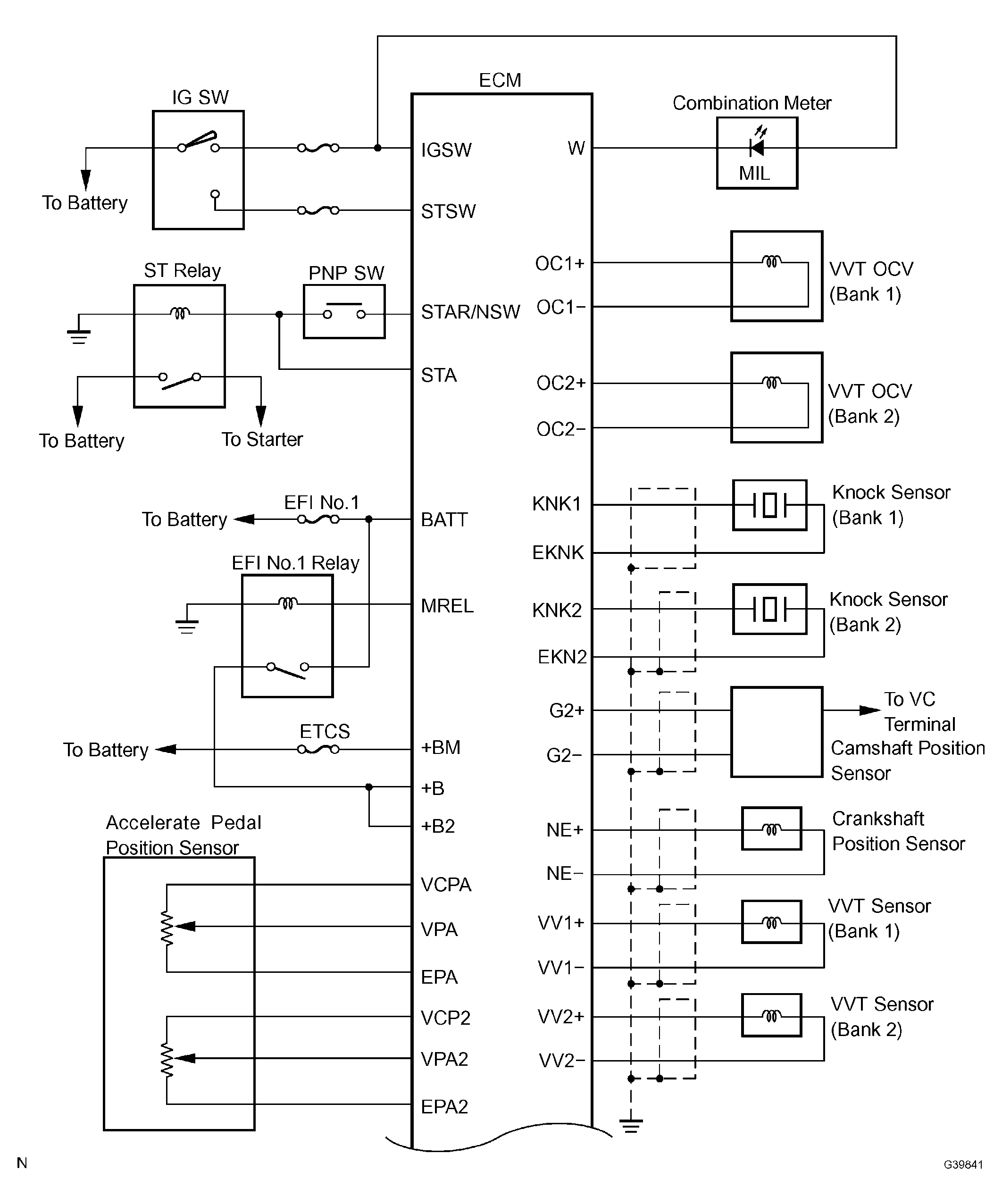

Fig 3: Identifying SFI System Diagram - 2UZ-FE (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
