Inner Rear View Mirror ASSY: Replacement

HINT:

The installation procedures are the removal procedures in reverse order.

1. REMOVE INNER REAR VIEW MIRROR ASSY
   1. Pushing the portions (a) as indicated, remove the cover.
   2. Pushing the claw in the direction (b), slide the mirror assy in the direction (c) to remove it. The steps a, b & c are indicated in Fig 1.

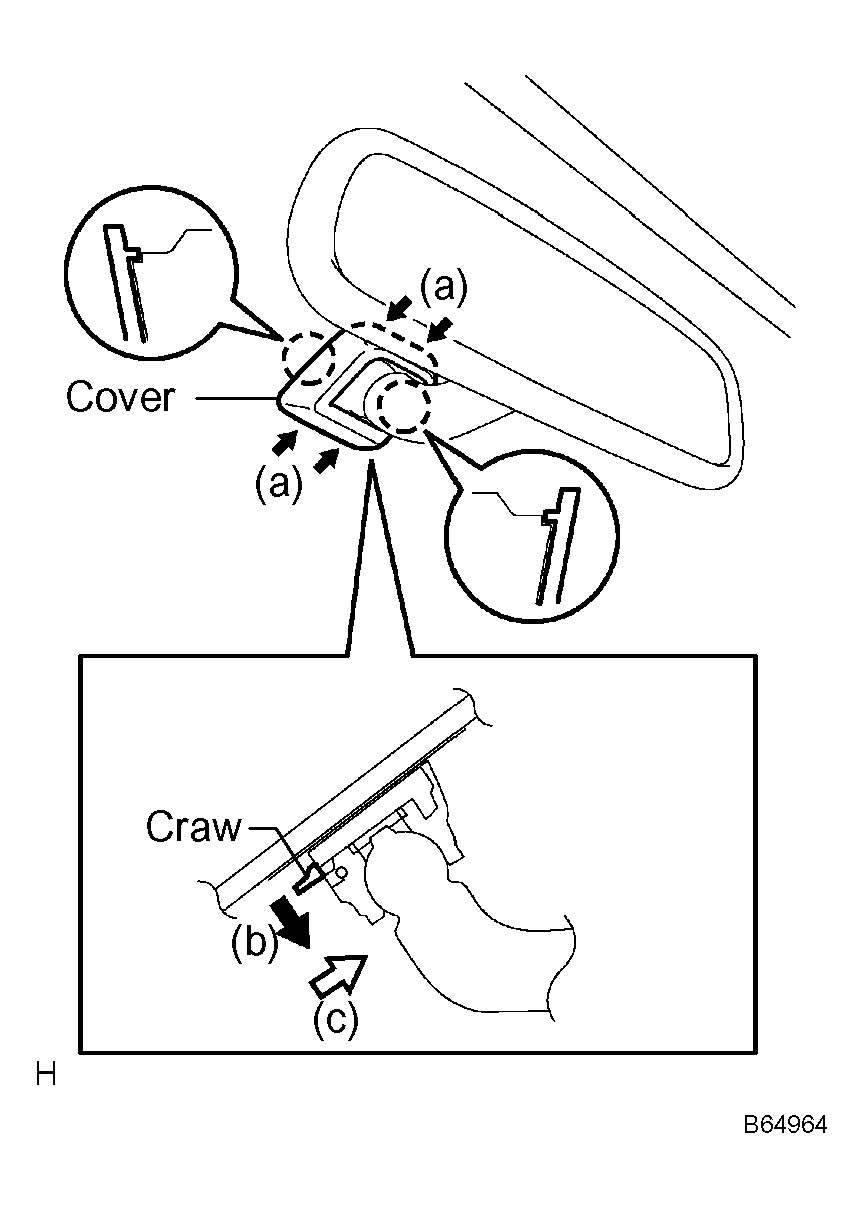

      Fig 1: Pushing Claw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE INNER REAR VIEW MIRROR ASSY (ELECTRO CHROMIC MIRROR INNER MIRROR)
   1. Remove the mirror cover.
   2. Disconnect the connector.
   3. Remove the mirror assy as shown in Fig 2.
      Fig 2: Removing Mirror ASSY

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
