Seat Belt: Components

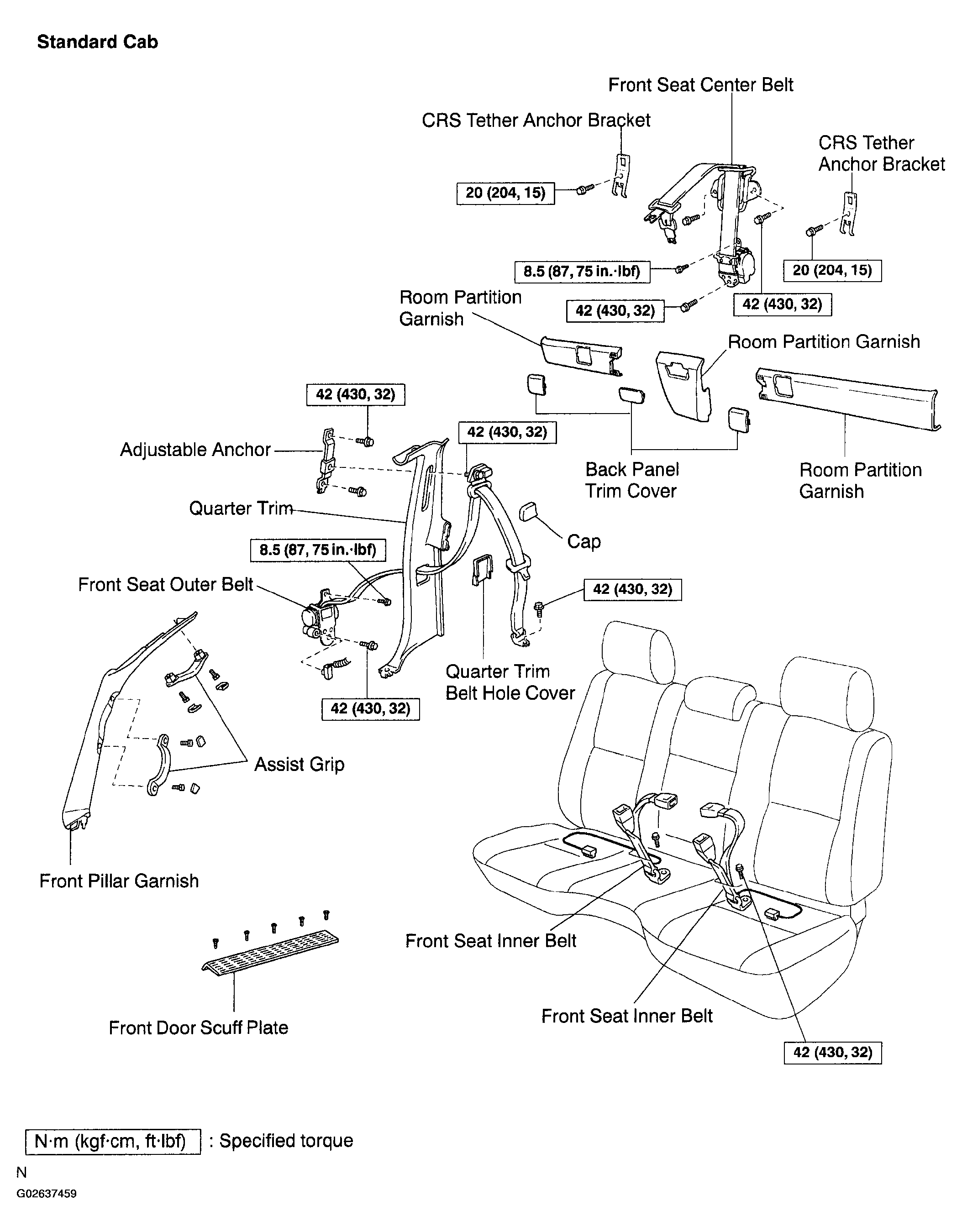

Fig 1: Seat Belt Replacement Components With Torque Specifications (Standard Cab)
G02637459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

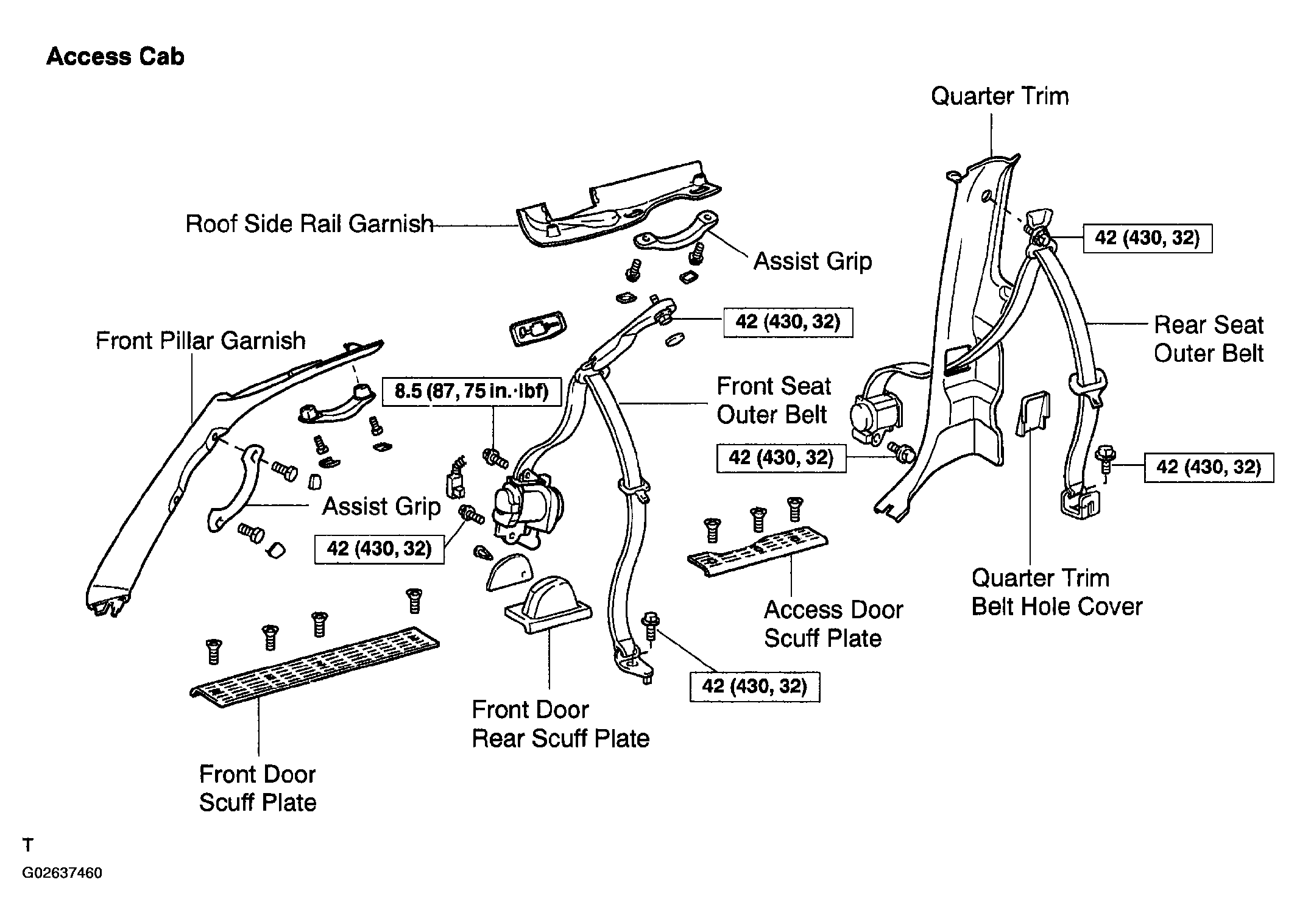

Fig 2: Seat Belt Replacement Components With Torque Specifications (Access Cab -- 1 Of 2)
G02637460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

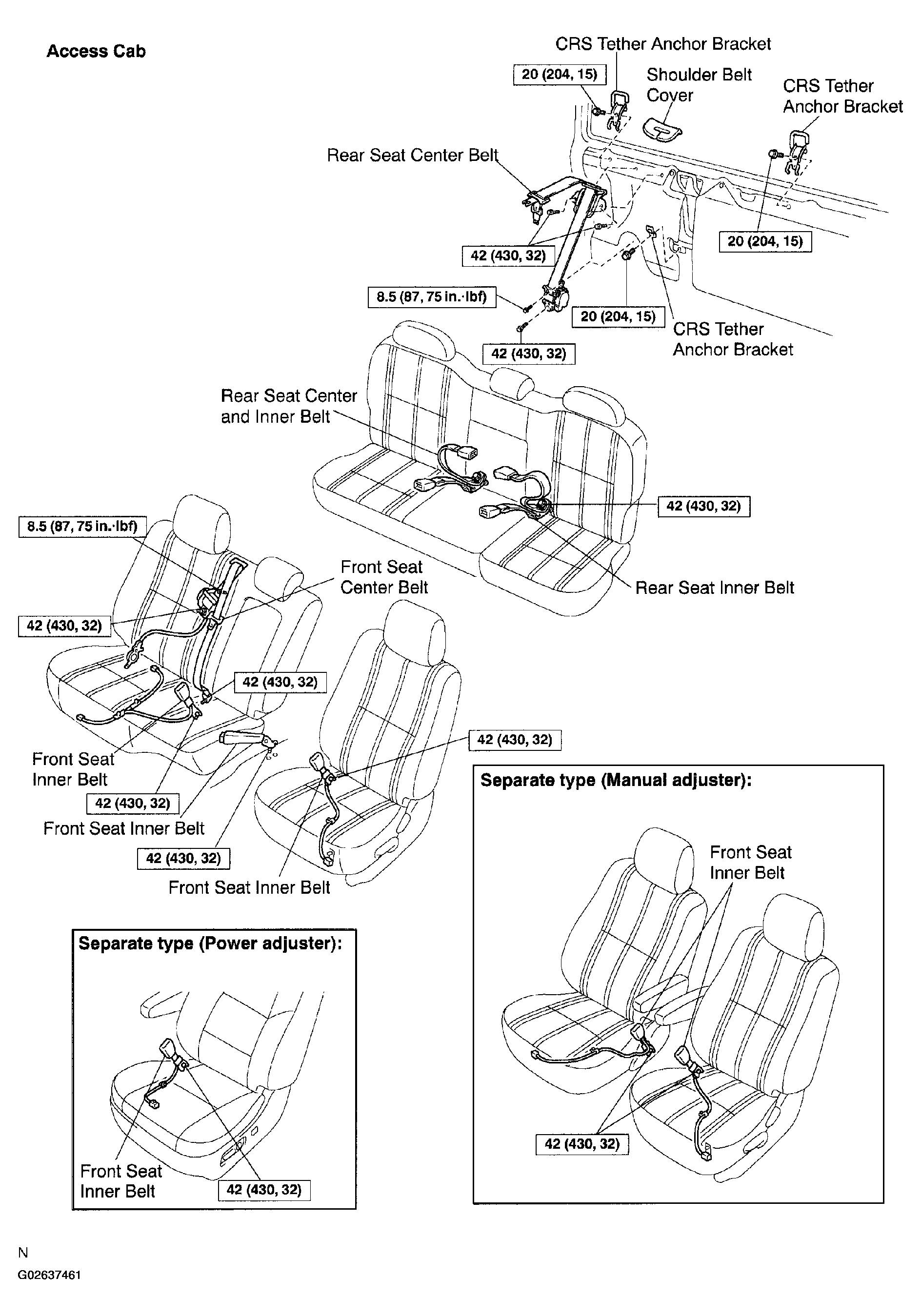

Fig 3: Seat Belt Replacement Components With Torque Specifications (Access Cab -- 2 Of 2)
G02637461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

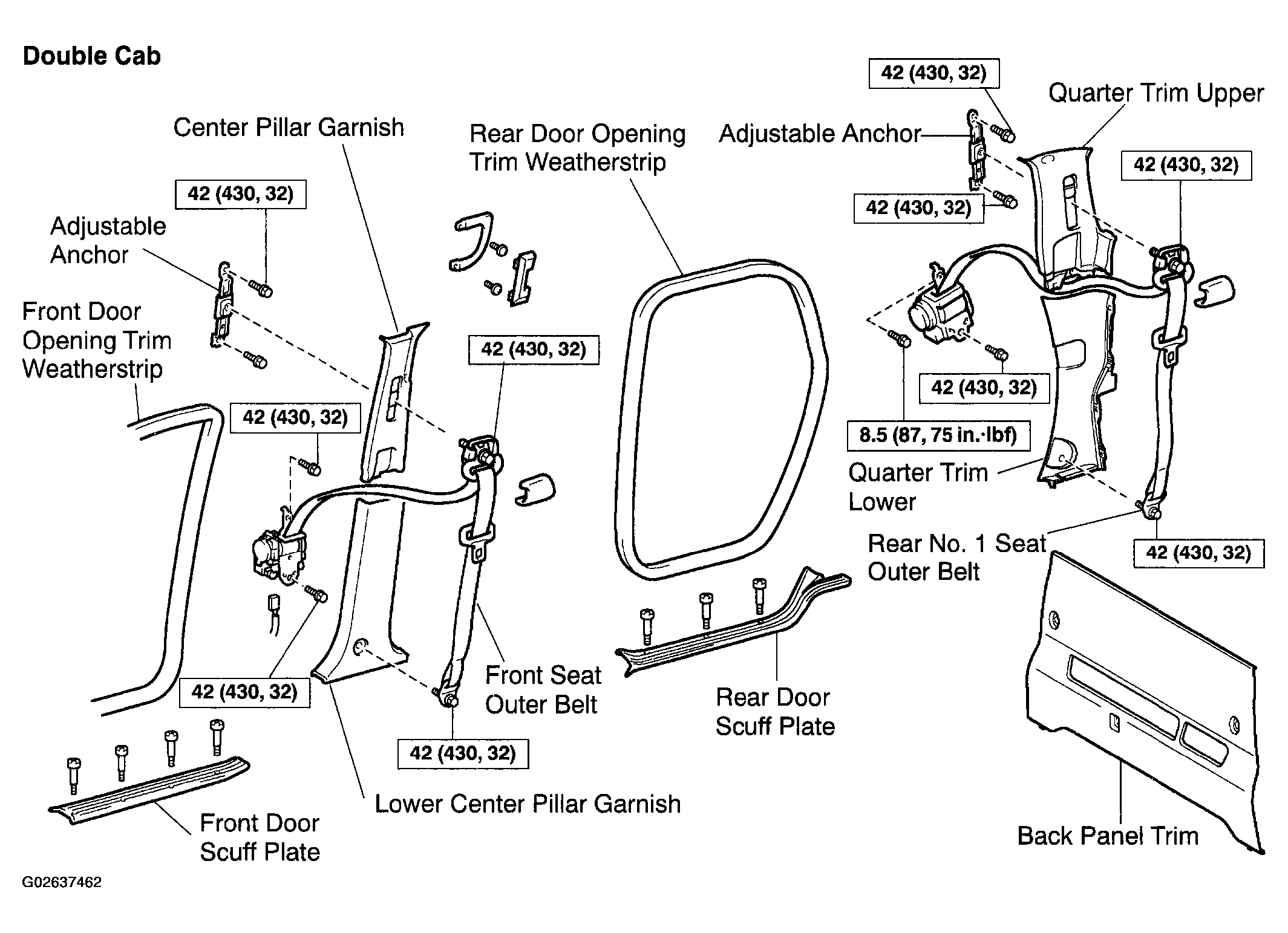

Fig 4: Seat Belt Replacement Components With Torque Specifications (Double Cab -- 1 Of 2)
G02637462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

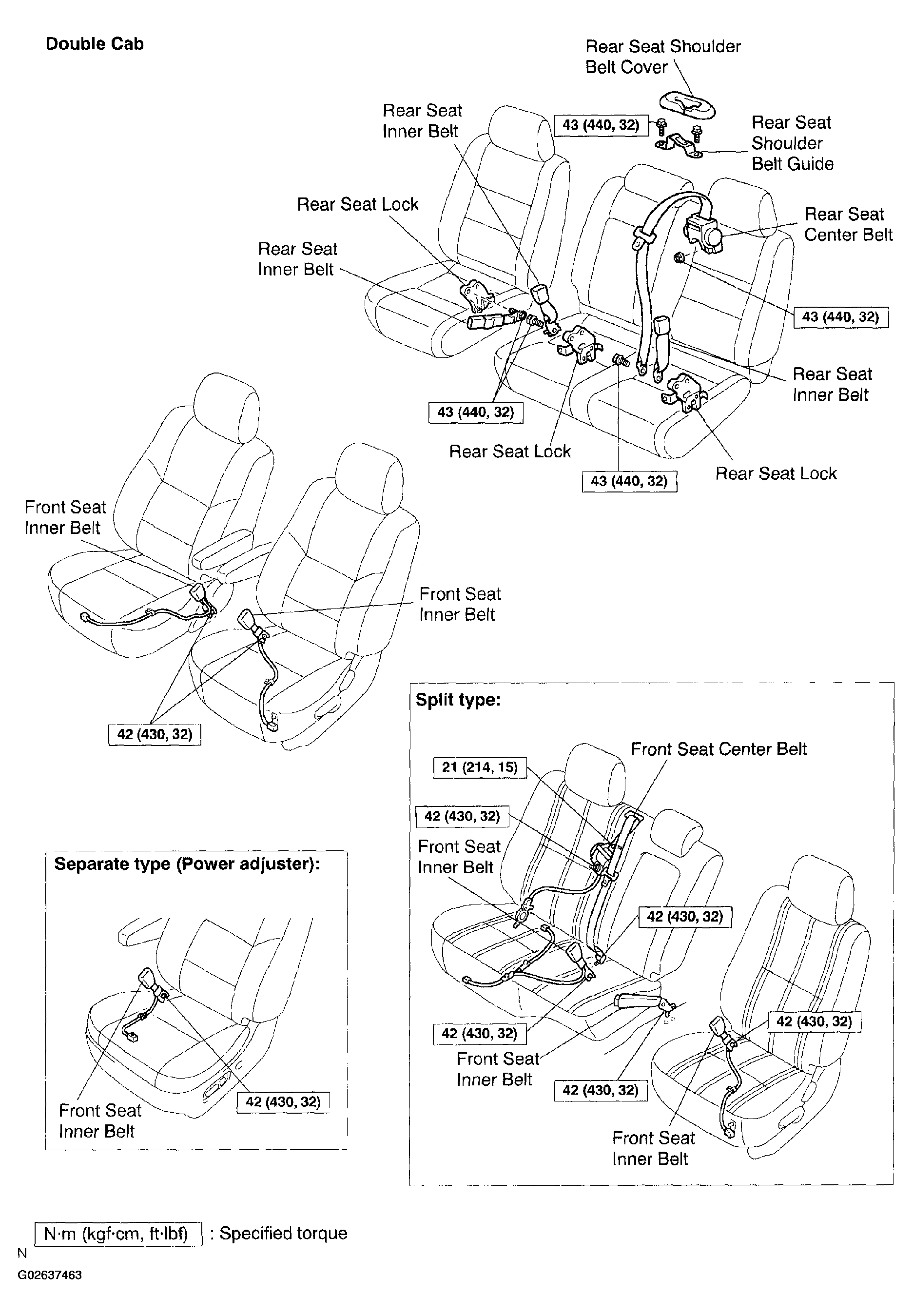

Fig 5: Seat Belt Replacement Components With Torque Specifications (Double Cab -- 2 Of 2)
G02637463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
