SST (Special Service Tools)

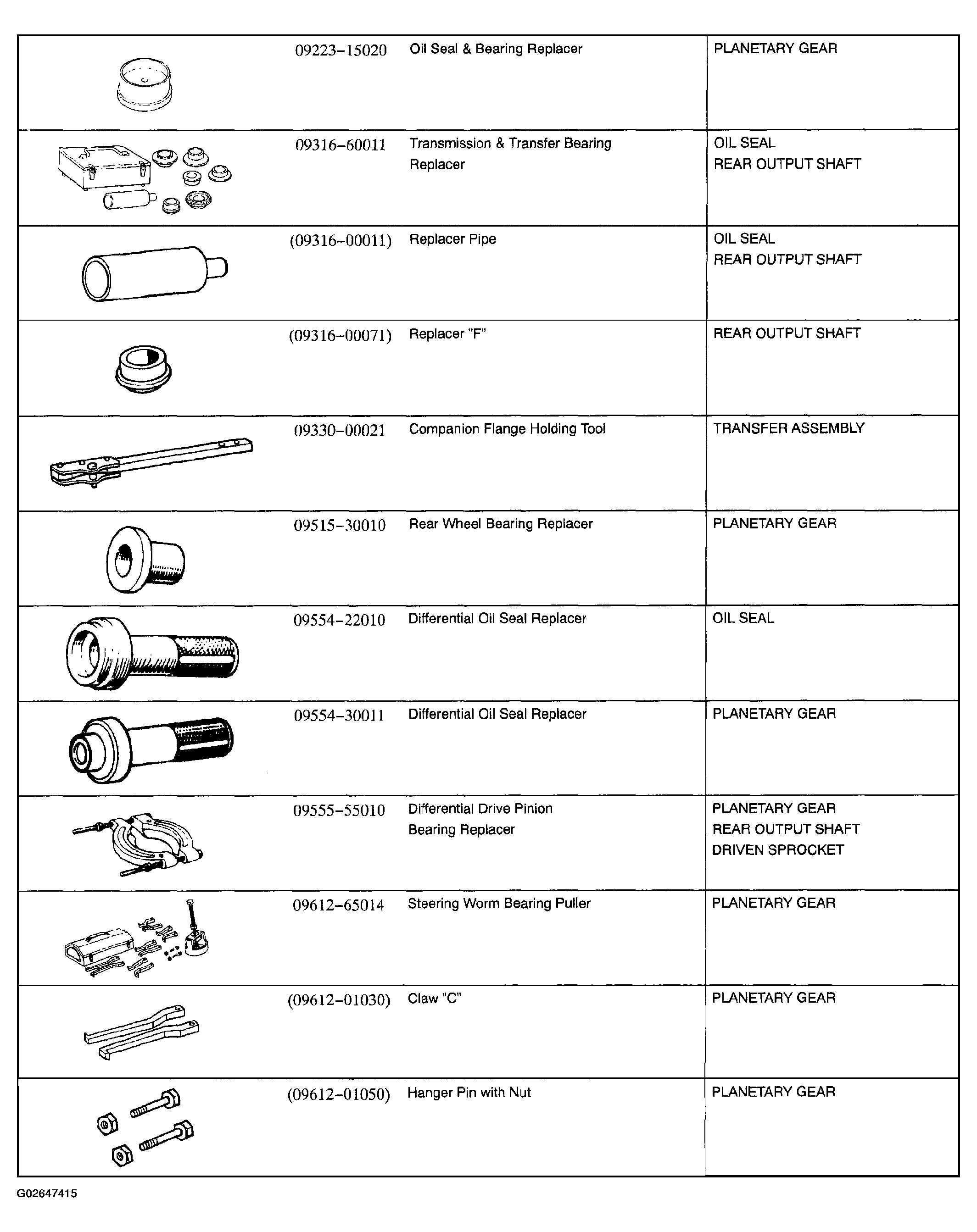

Fig 1: Special Service Tools Chart - Transfer (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

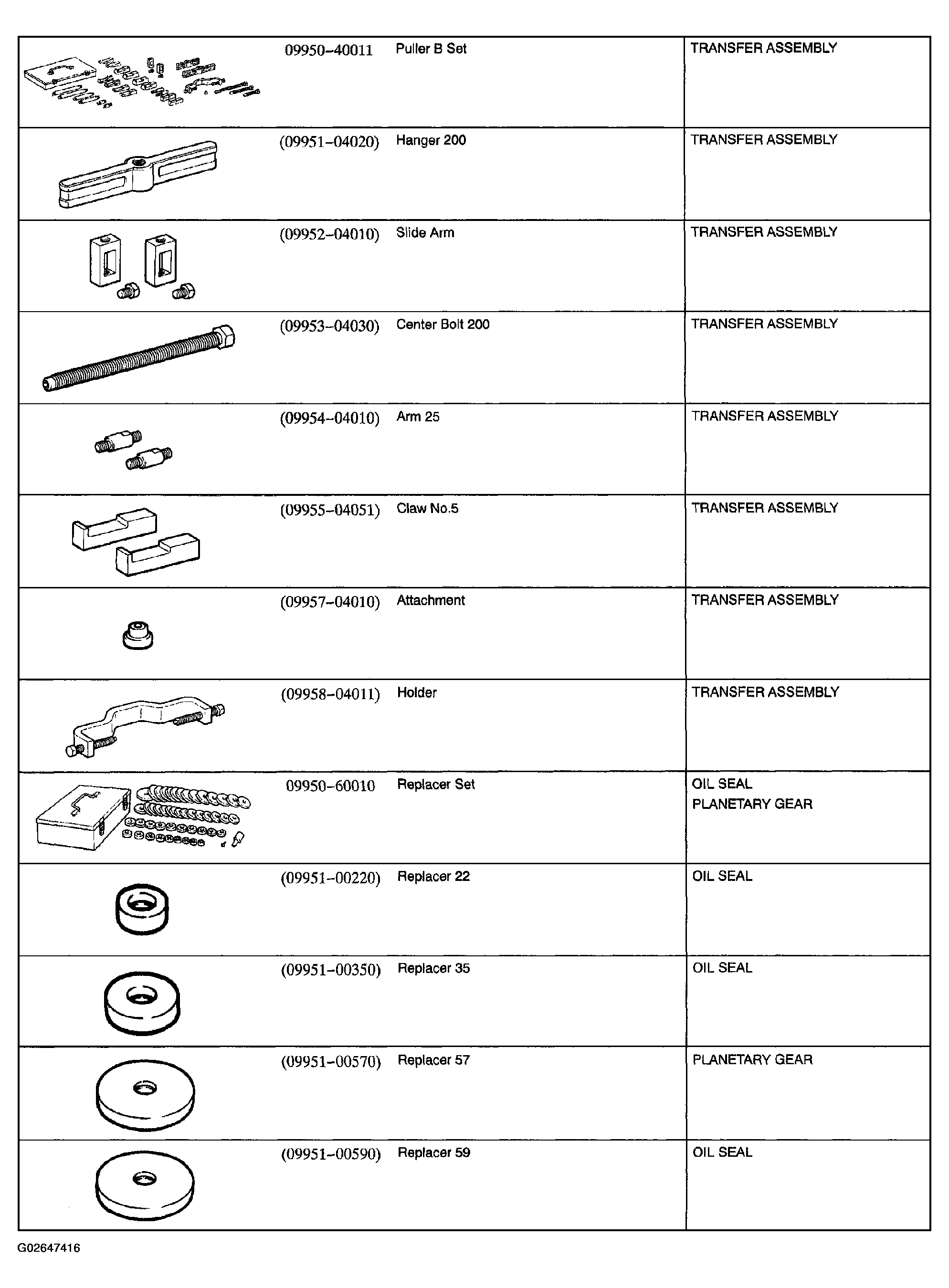

Fig 2: Special Service Tools Chart - Transfer (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

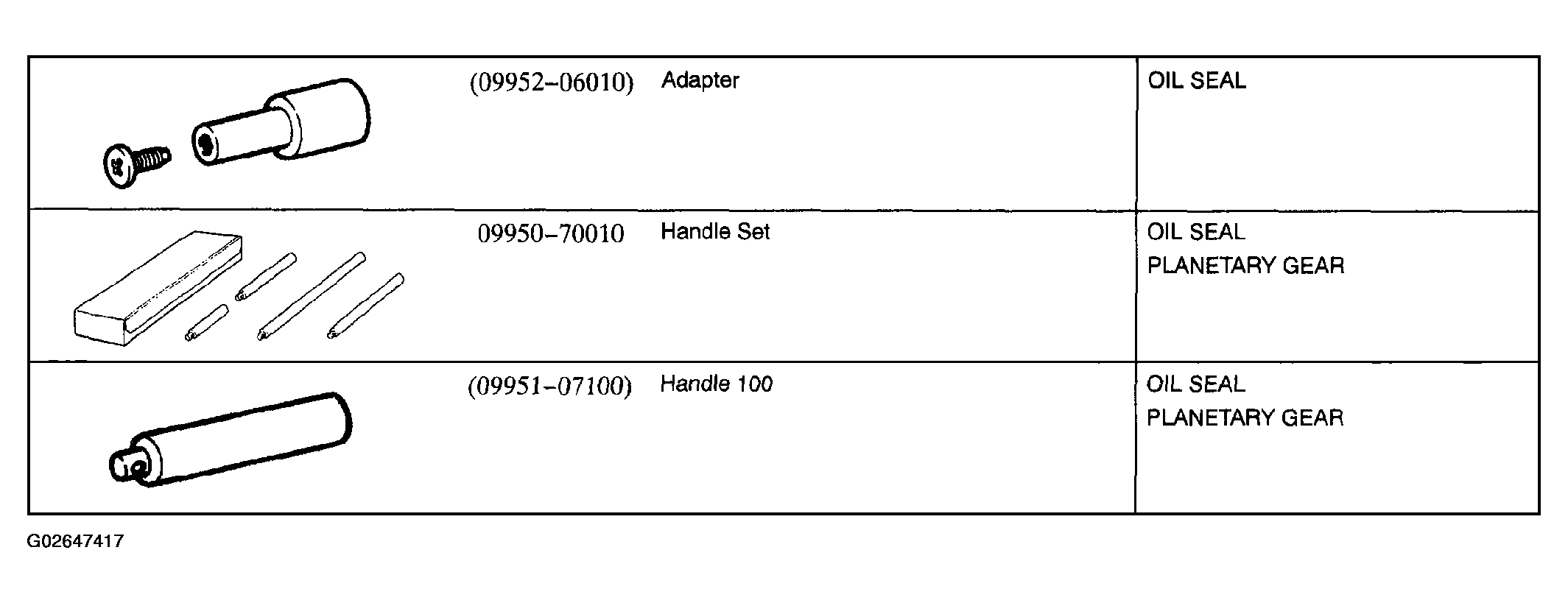

Fig 3: Special Service Tools Chart - Transfer (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
