Camshaft Timing Oil Control Valve: Components

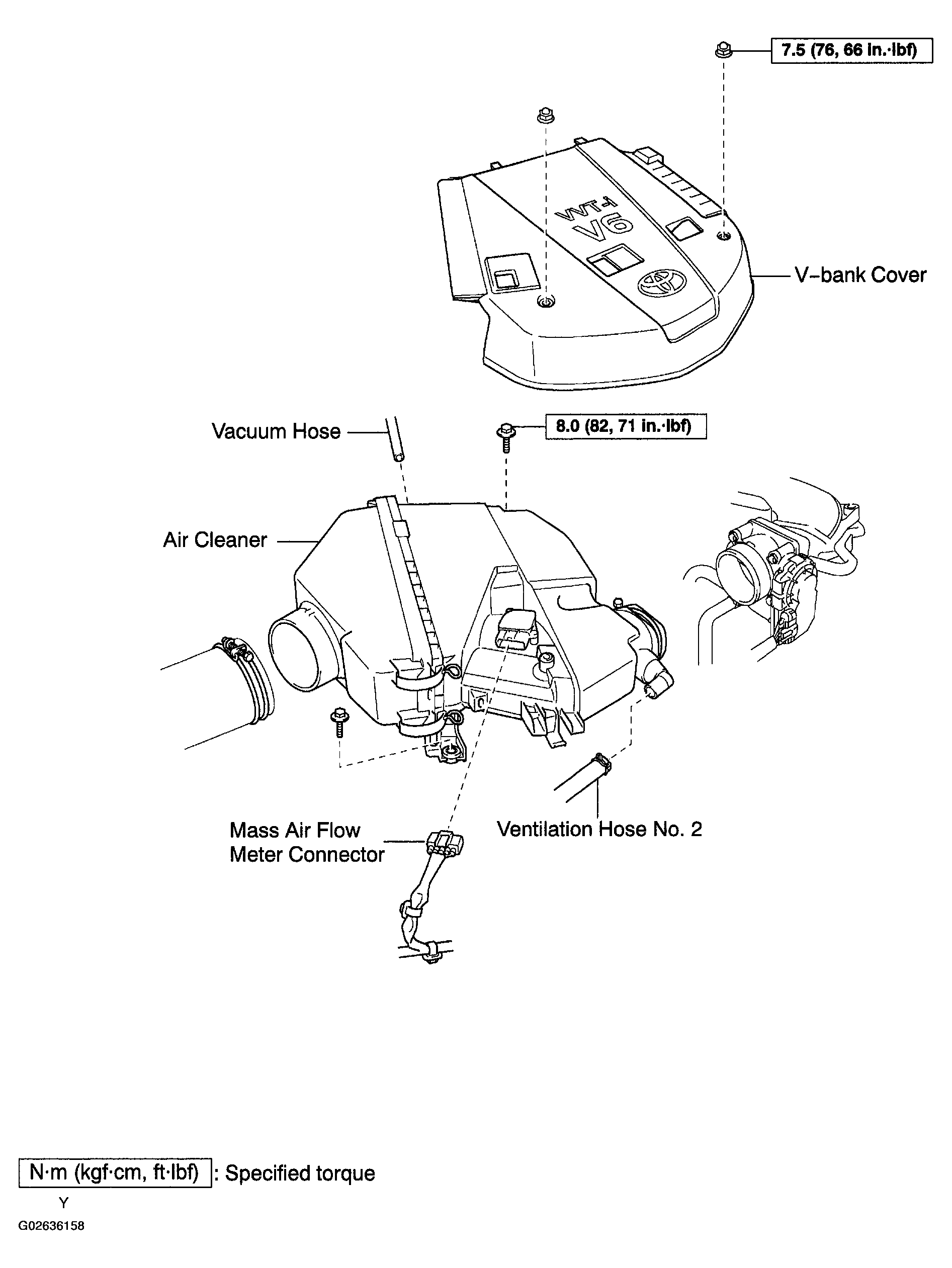

Fig 1: Intake Assembly Replacement Components With Torque Specifications (1 Of 2)
G02636158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

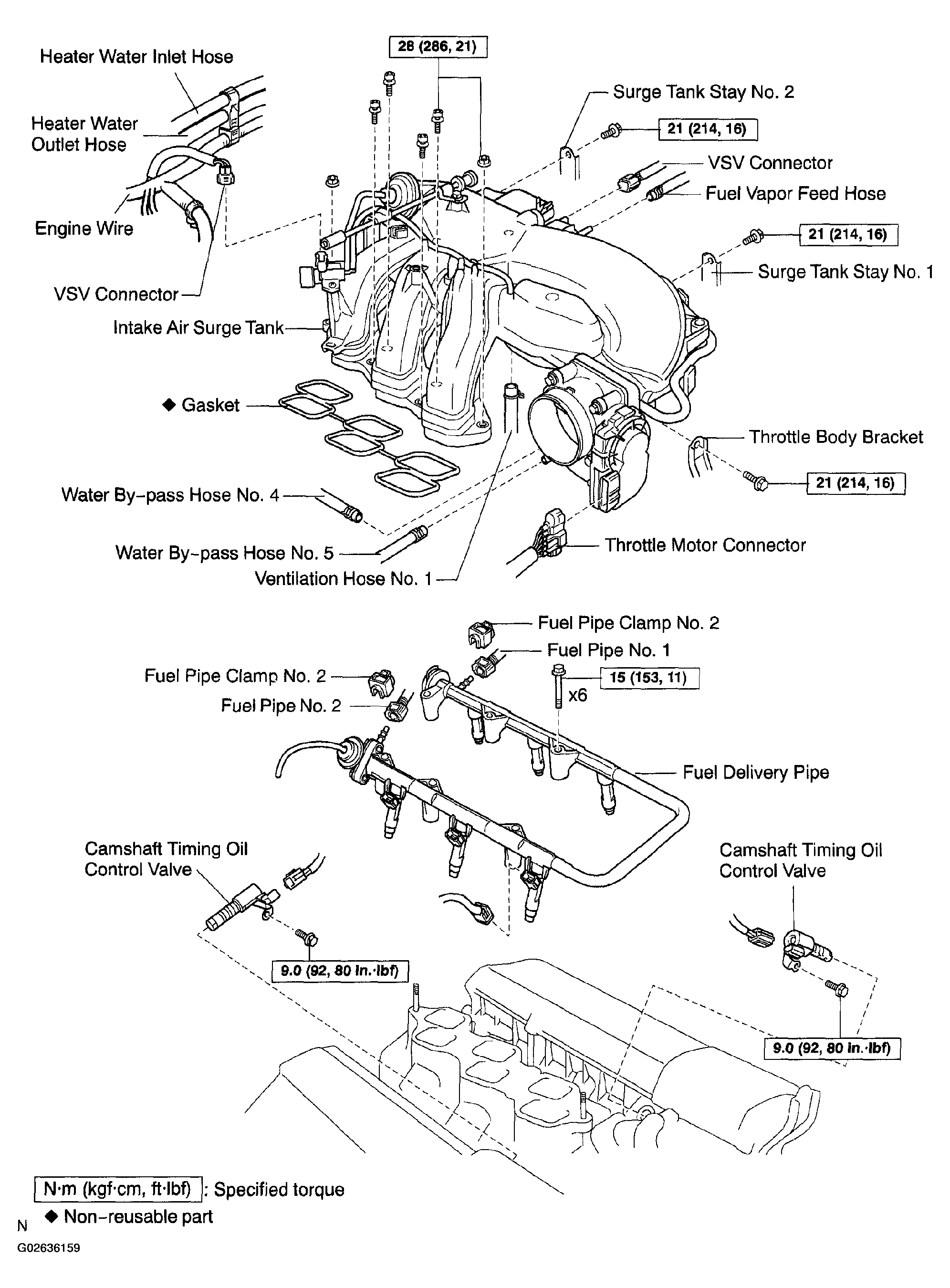

Fig 2: Intake Assembly Replacement Components With Torque Specifications (2 Of 2)
G02636159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
