Charging System (1GR-FE): Generator: Components

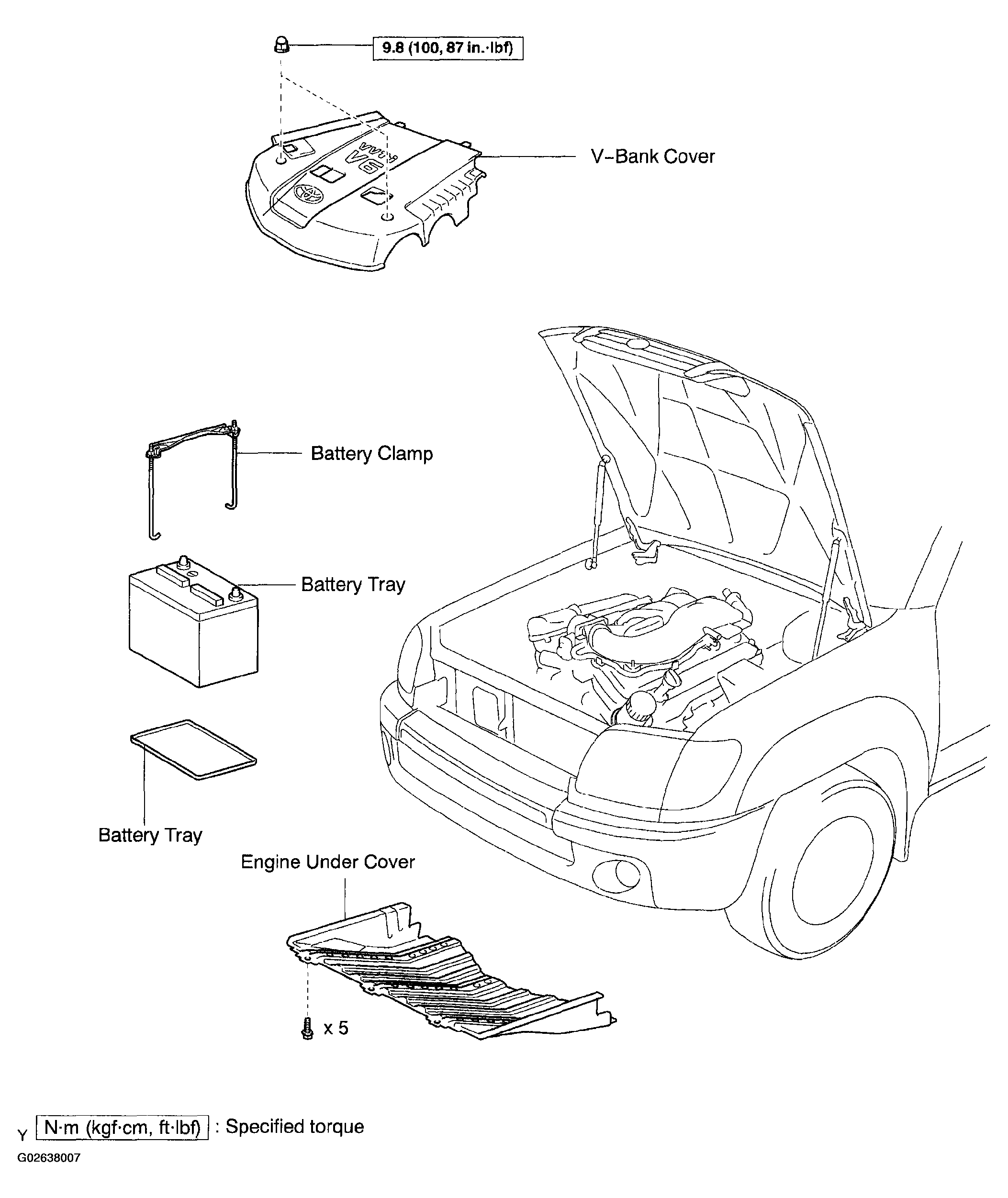

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
G02638007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

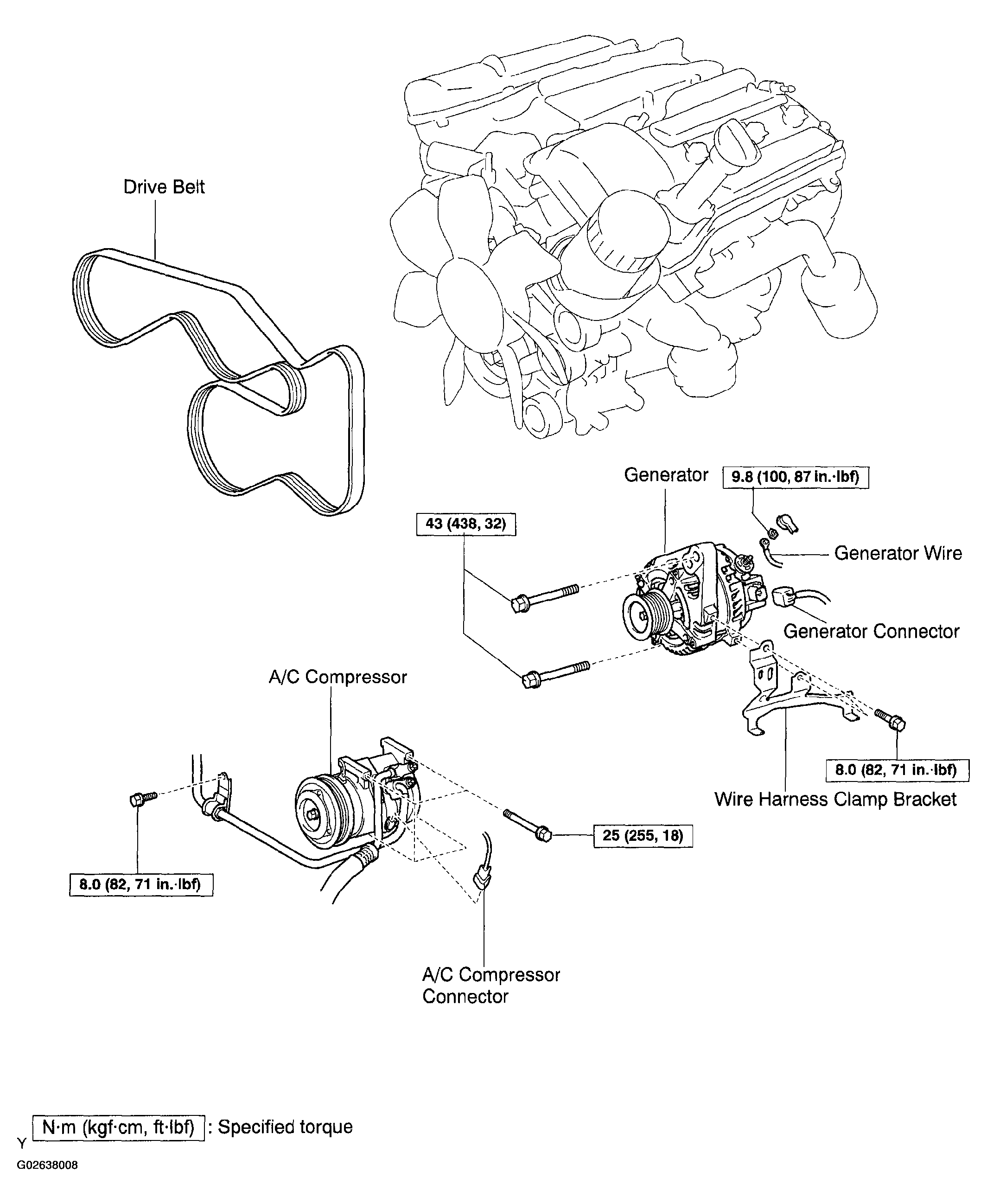

Fig 2: Generator Replacement Components With Torque Specifications (2 Of 2)
G02638008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

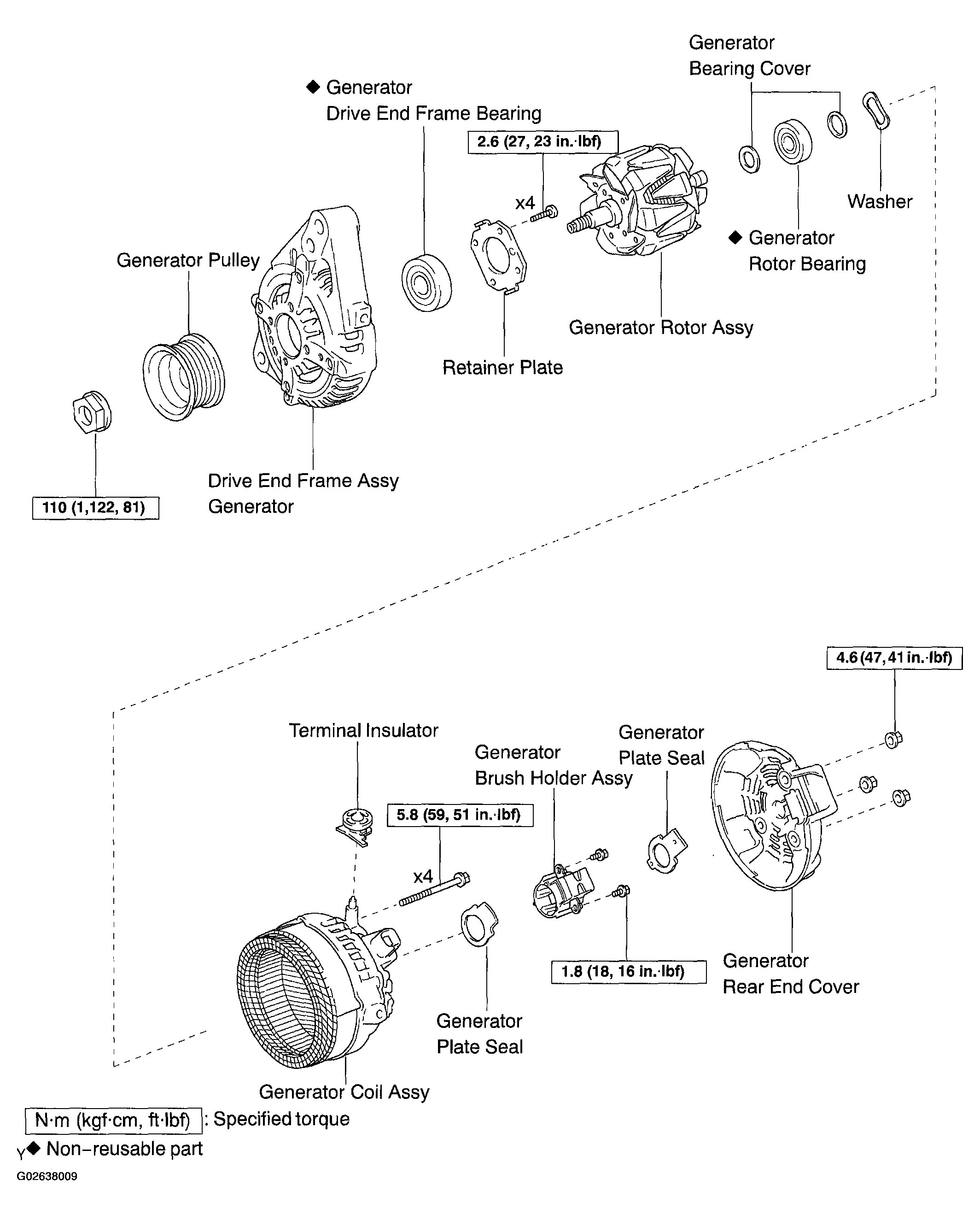

Fig 3: Exploded View Of Generator With Torque Specifications
G02638009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
