Starting & Charging: Preparation: SST

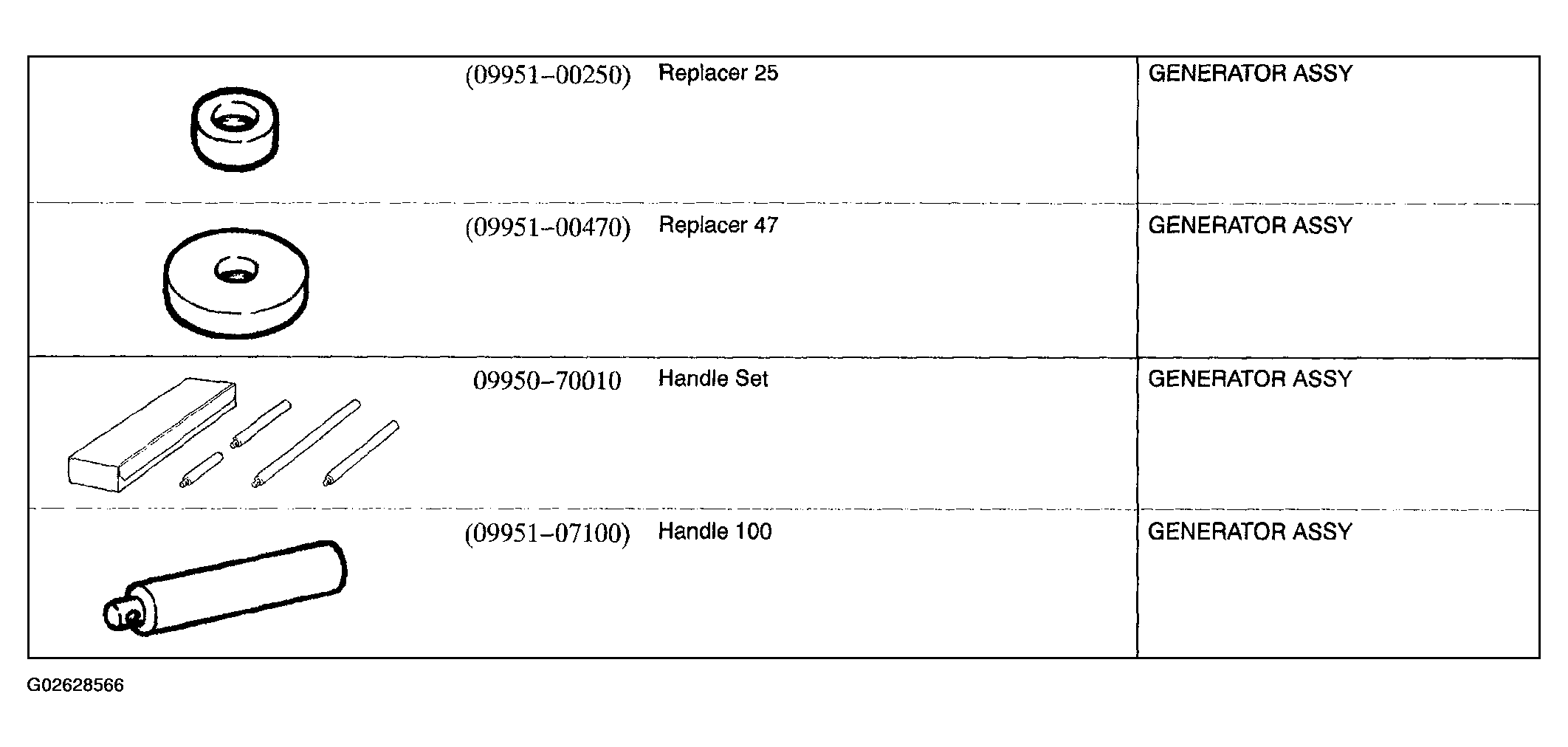

Fig 1: Starting & Charging - SST Tool Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

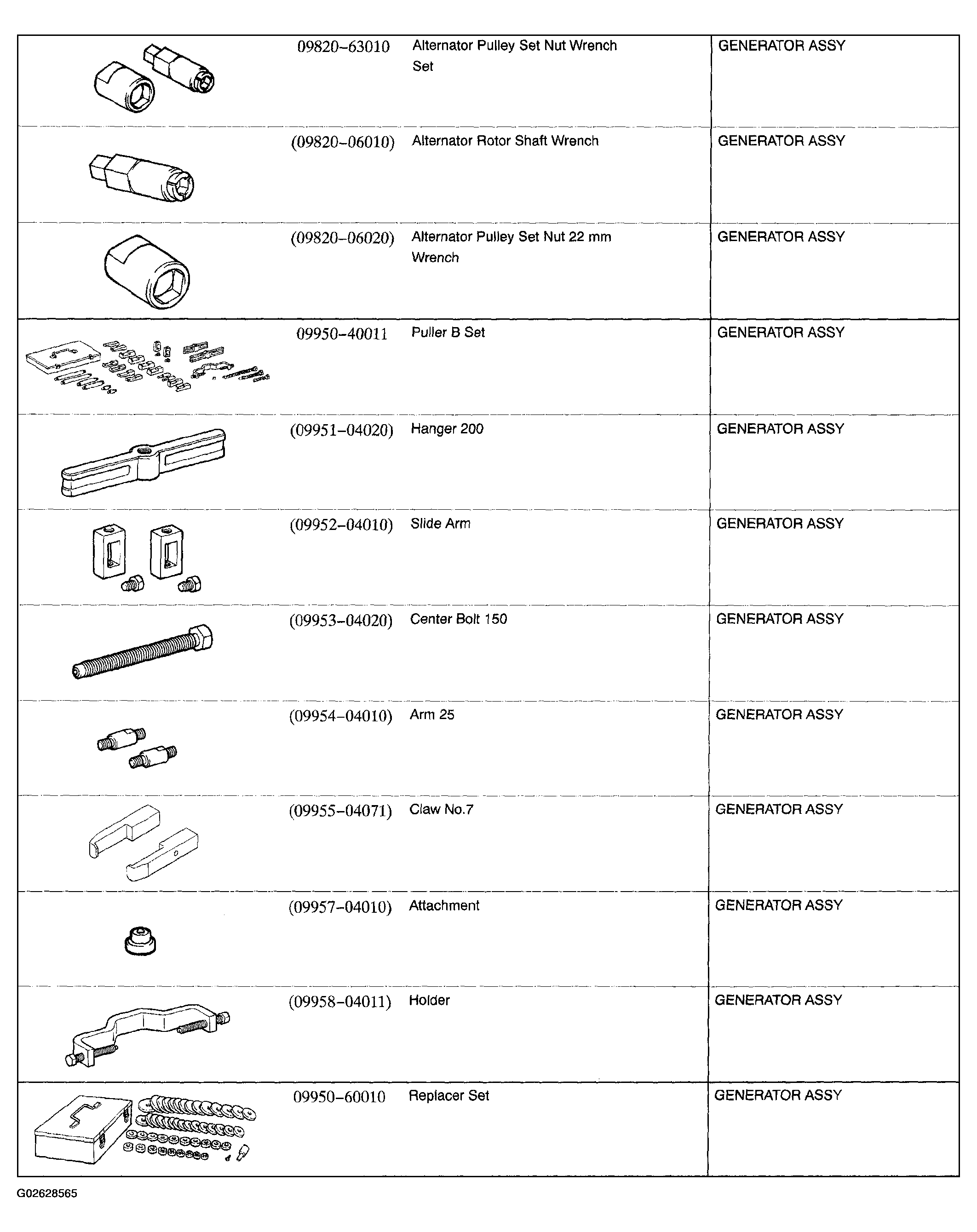

Fig 2: Starting & Charging - SST Tool Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
