Interior Light System

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

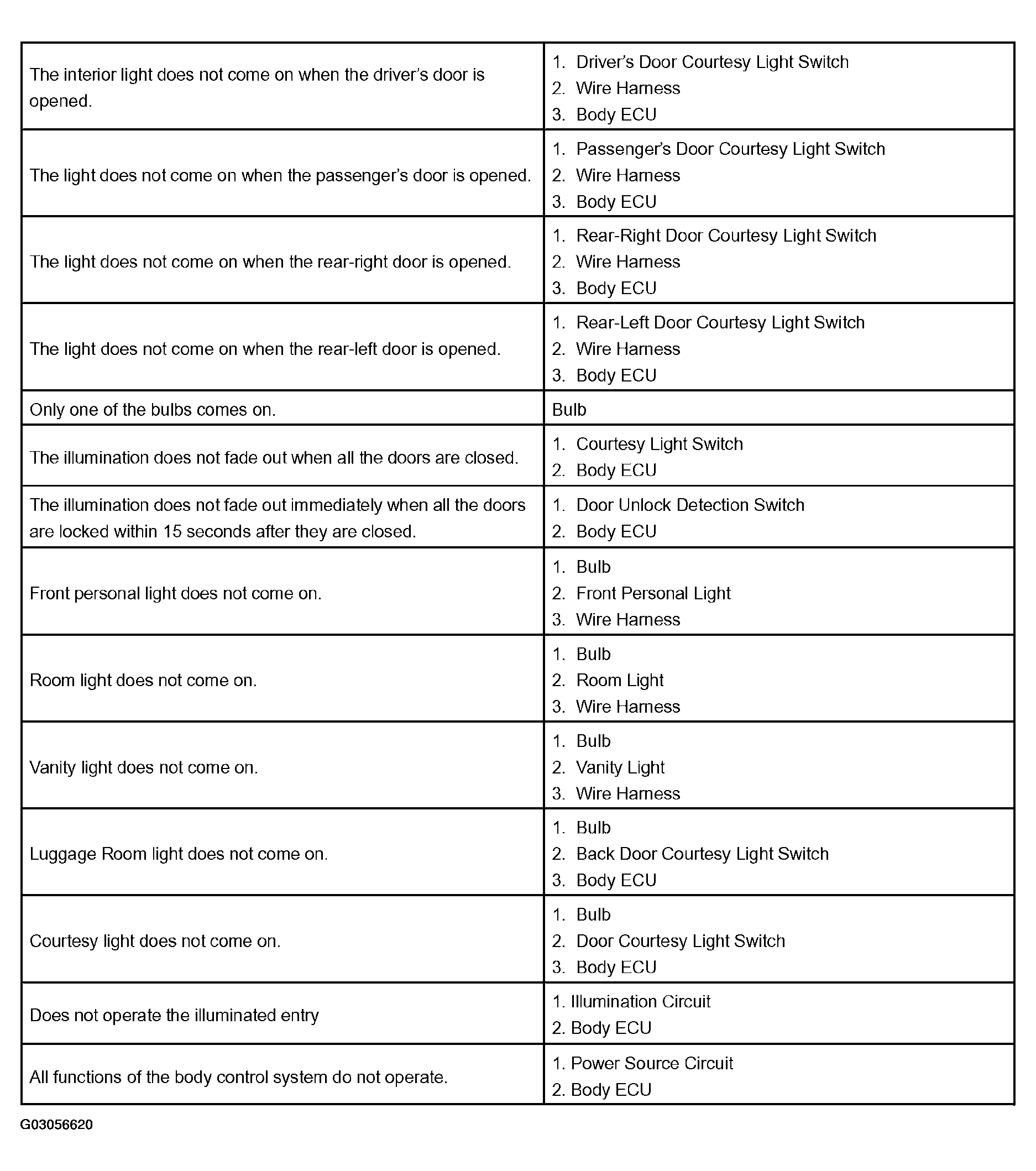

Fig 1: Interior Light System - Problem Symptoms Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Interior Light System - Problem Symptoms Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
