Manual Transaxle Unit (2WD): Components

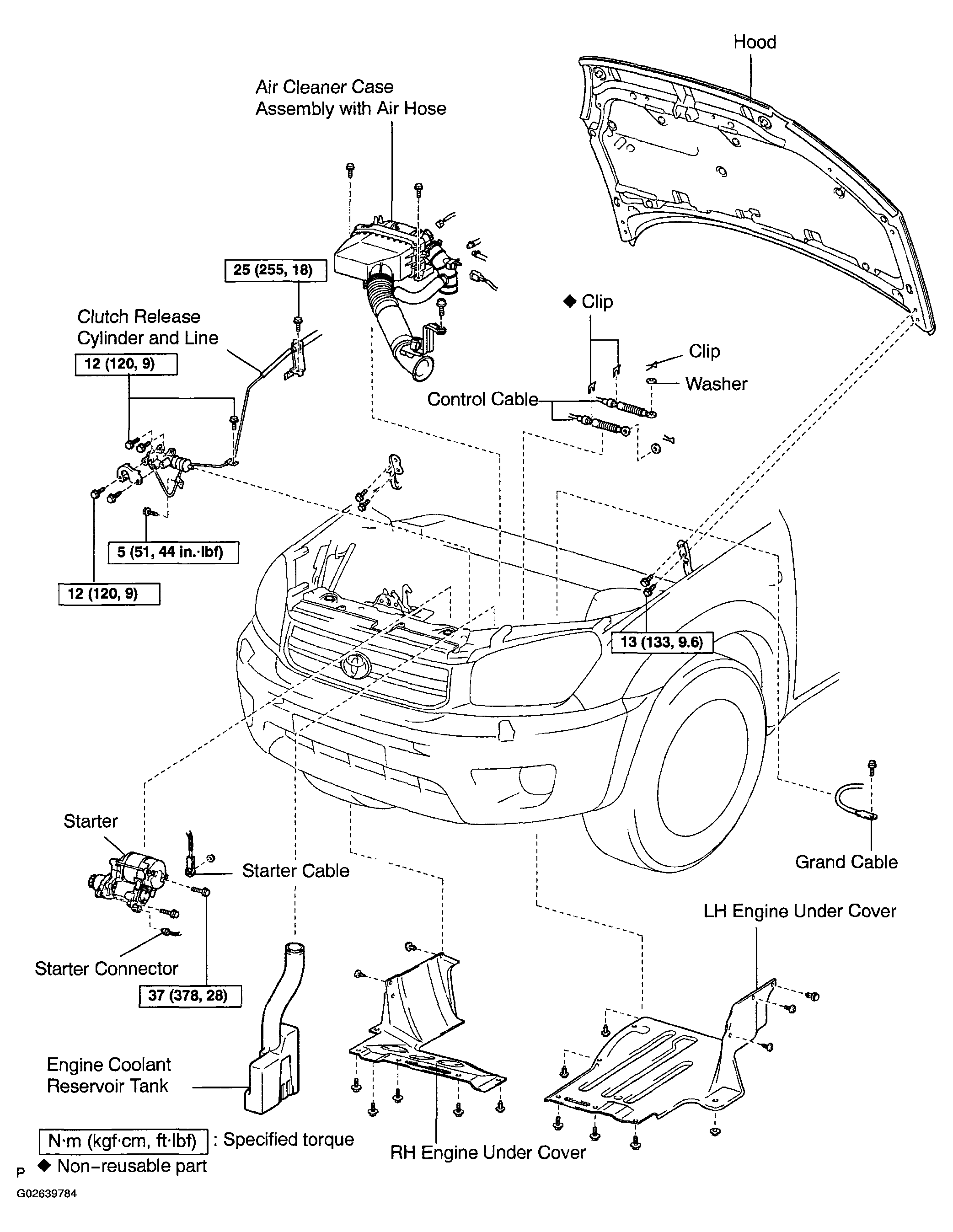

Fig 1: Exploded View Of R&I Components Related To Manual Transaxle & Torque Specifications (2WD) (1 Of 2)
G02639784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

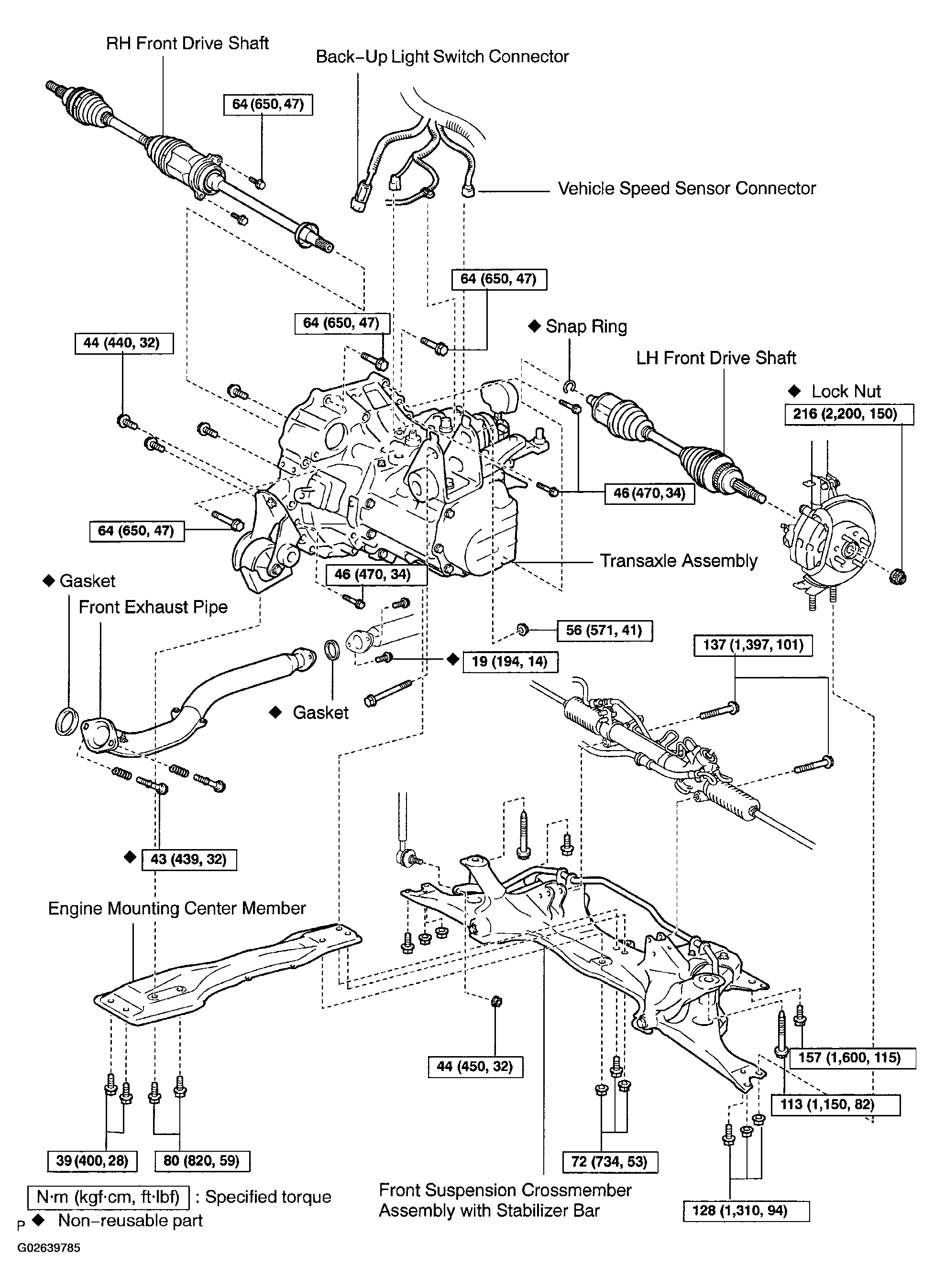

Fig 2: Exploded View Of R&I Components Related To Manual Transaxle & Torque Specifications (2WD) (2 Of 2)
G02639785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
