SST (Special Service Tools)

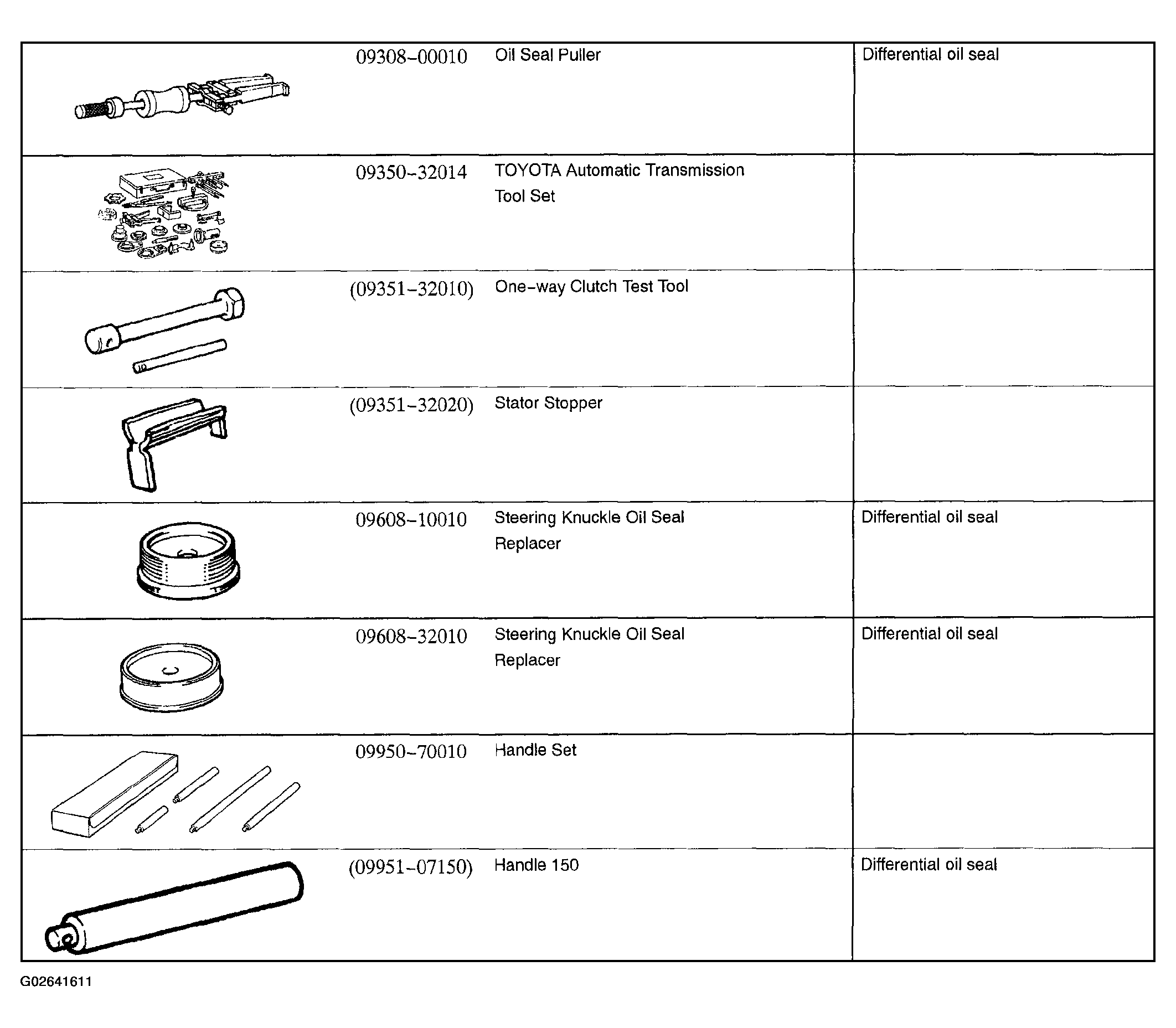

Fig 1: Identifying SST Special Service Tools (Automatic Transaxle (U241E)
G02641611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
