Electro Chromic Mirror System: Inspection

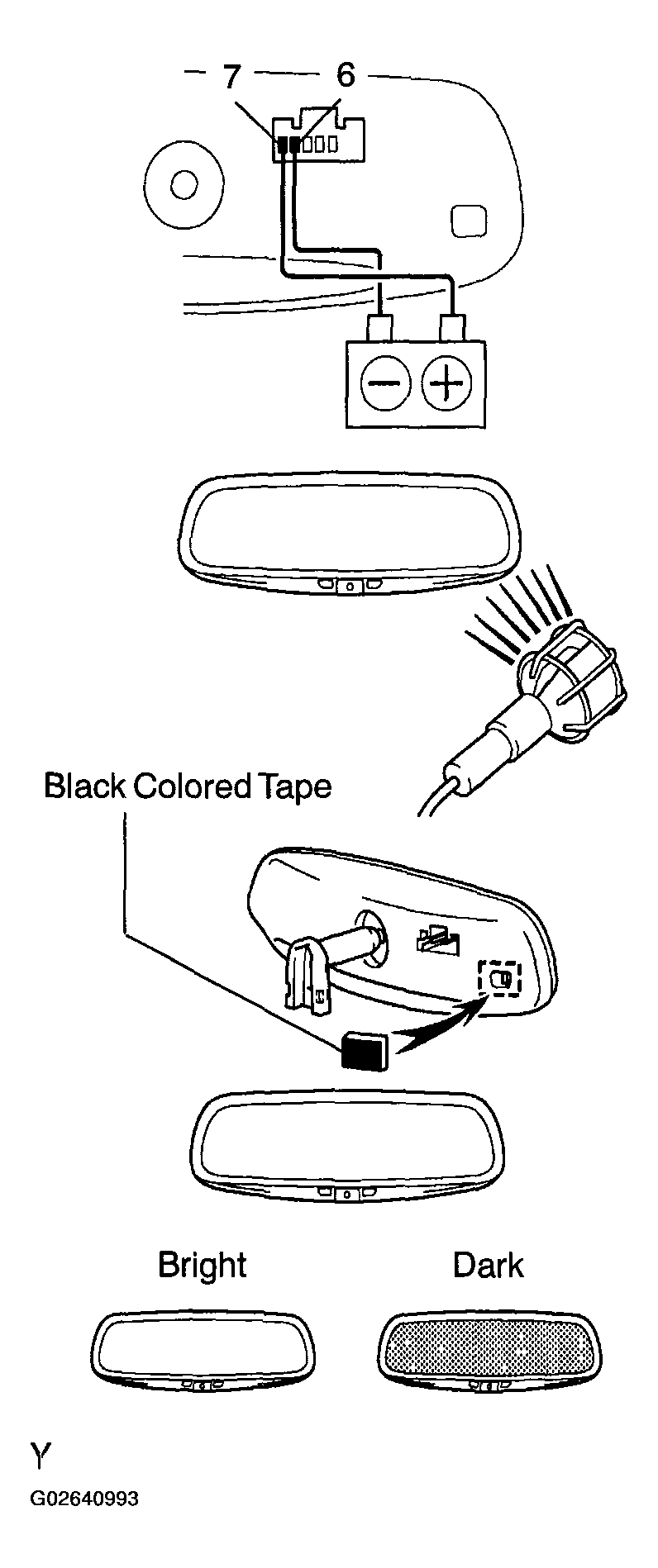

- Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 6.
- Attach black colored tape to the forward sensor to block the sensor.
- Light up the mirror with an electric light, and check if the mirror surface changes from "bright" to "dark".
If operation is not as specified, replace the inner mirror.
