P Position Switch Indicator Light Circuit: Wiring Diagram

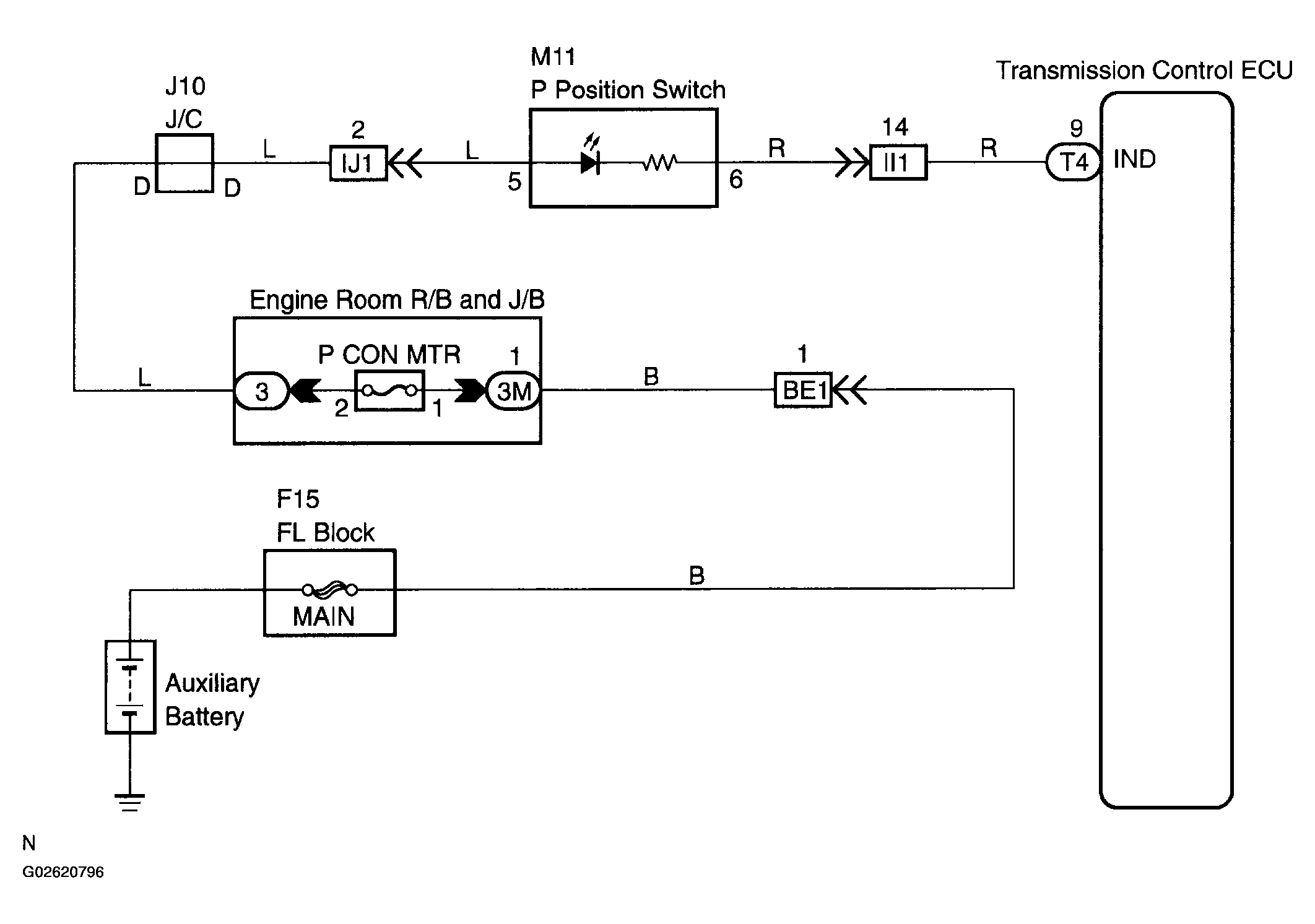

Fig 1: P Position Switch Indicator Light Circuit
G02620796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
