Shift Control System (Parking Lock Control): Location

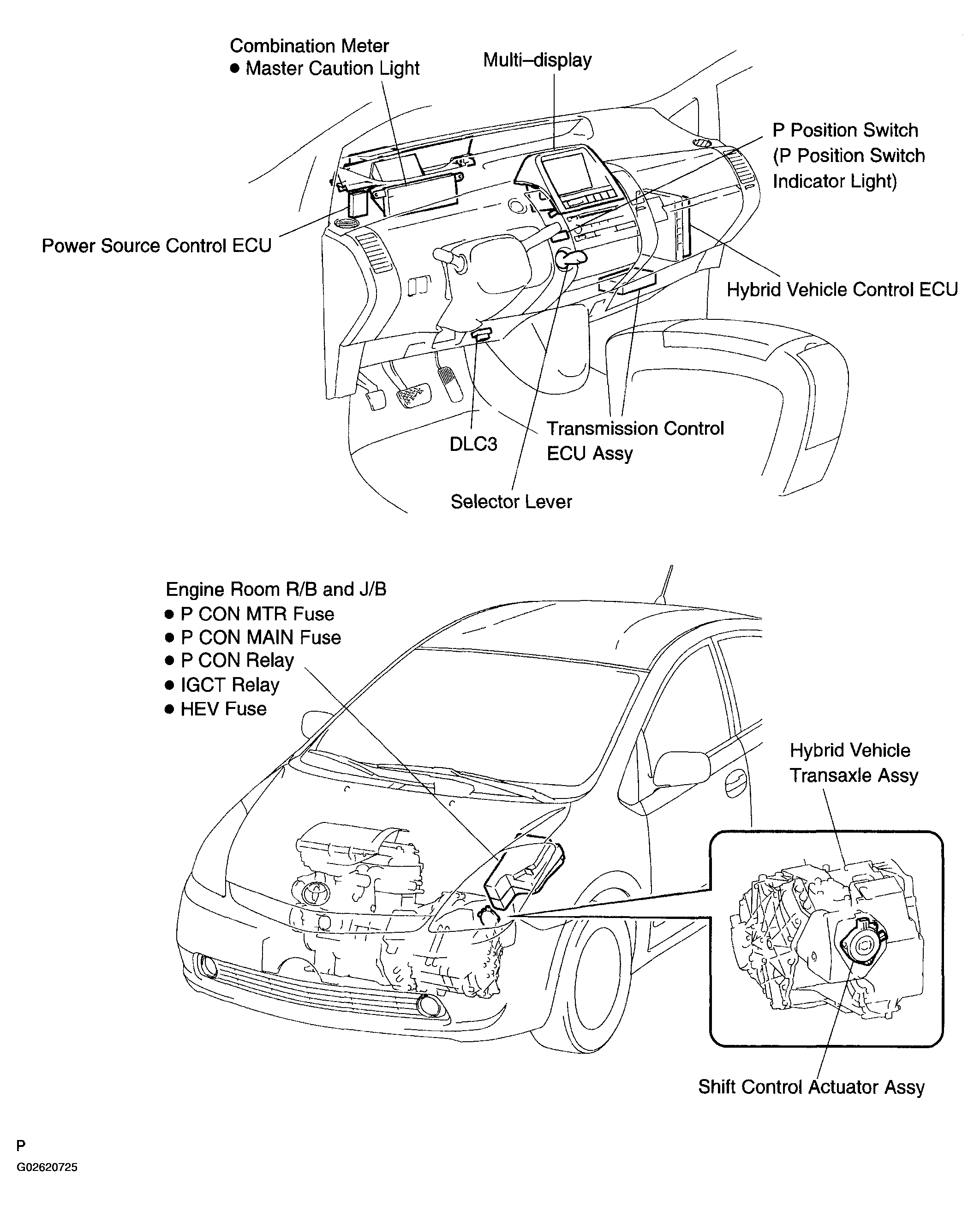

Fig 1: Identifying Shift Control System (Parking Lock Control) Component Location
G02620725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
