Customer Problem Analysis Check

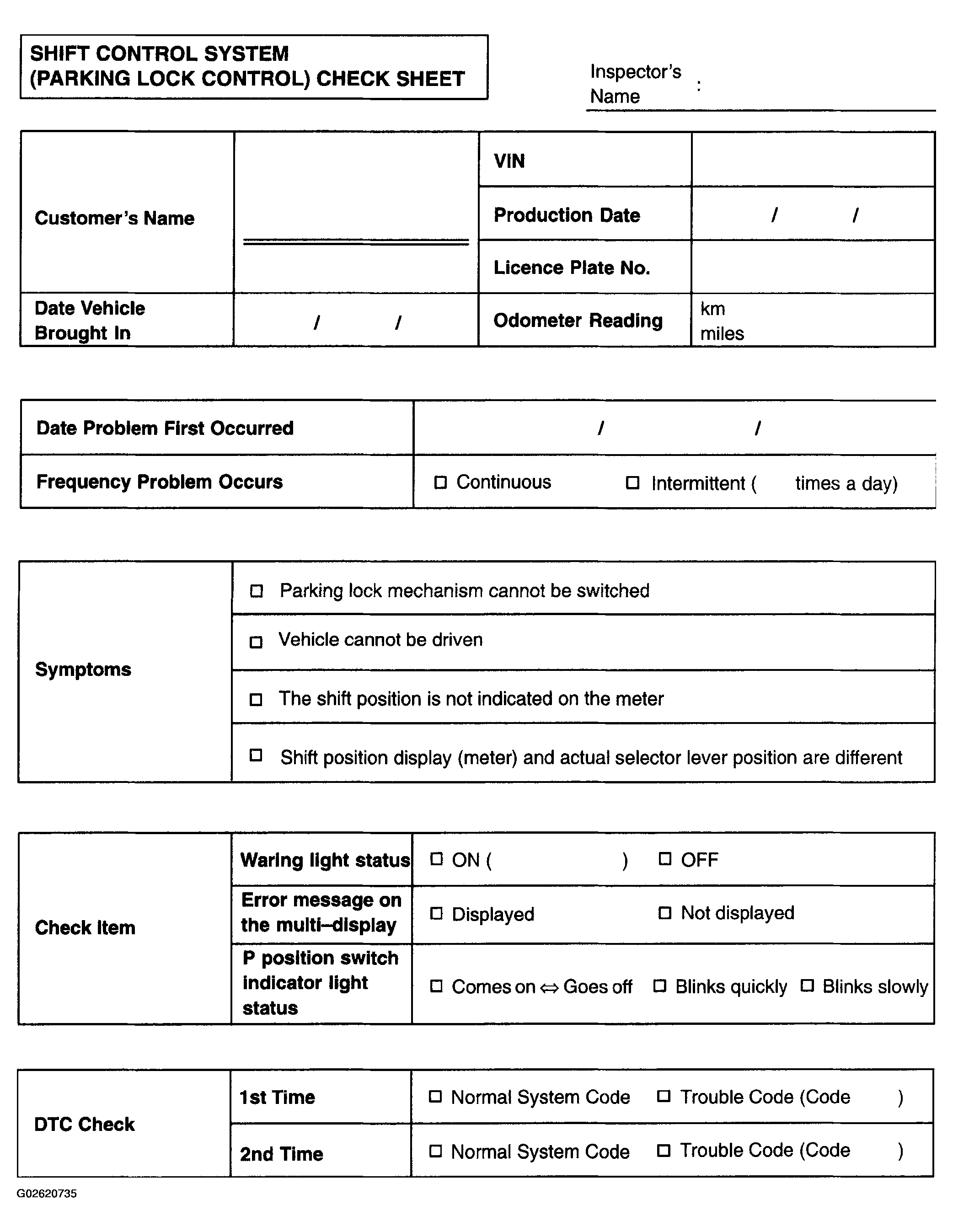

Fig 1: Customer Problem Analysis Check Sheet
G02620735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
