Rear Suspension: Preparation: SST

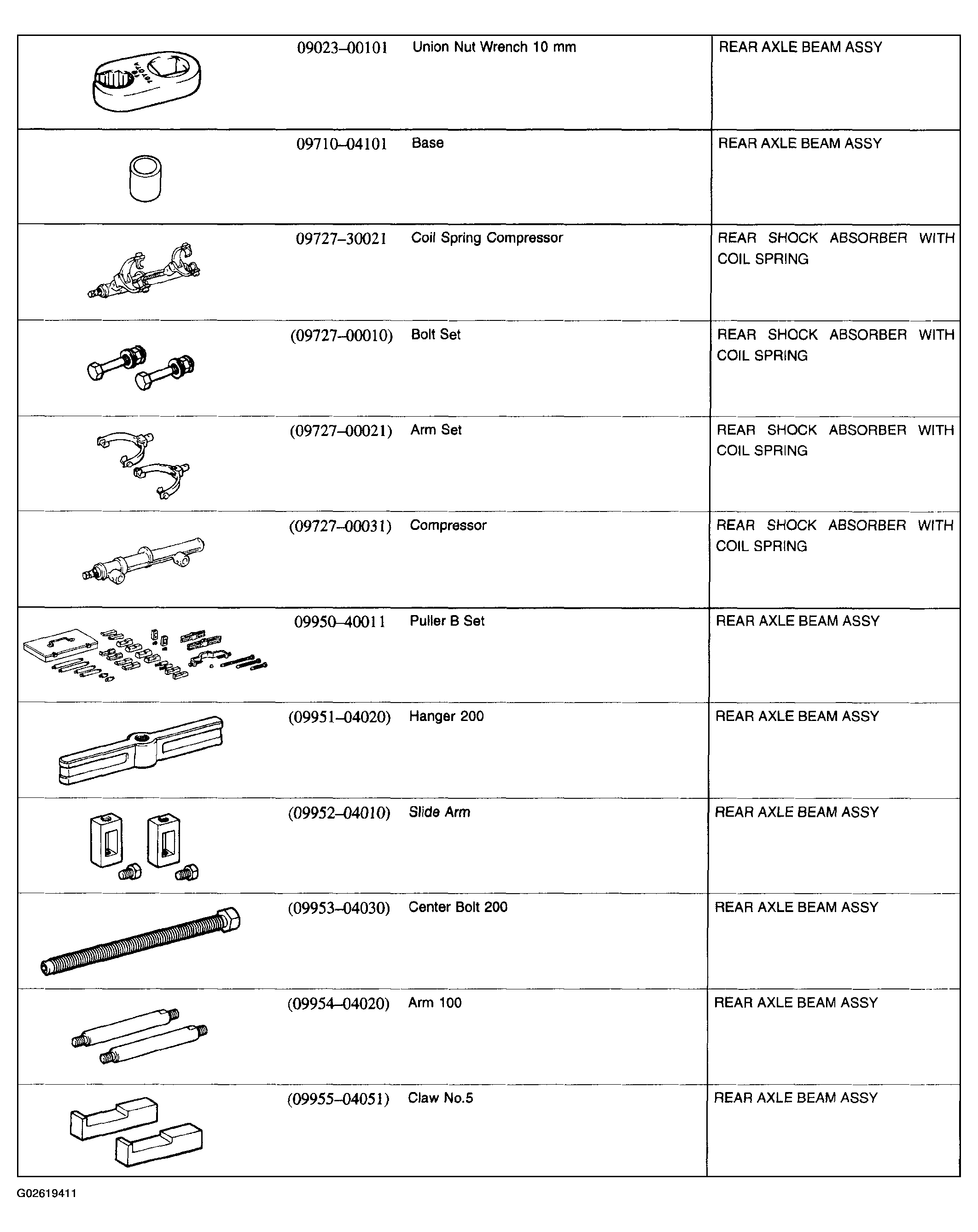

Fig 1: Identifying SST - Rear Suspension (1 Of 2)
G02619411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

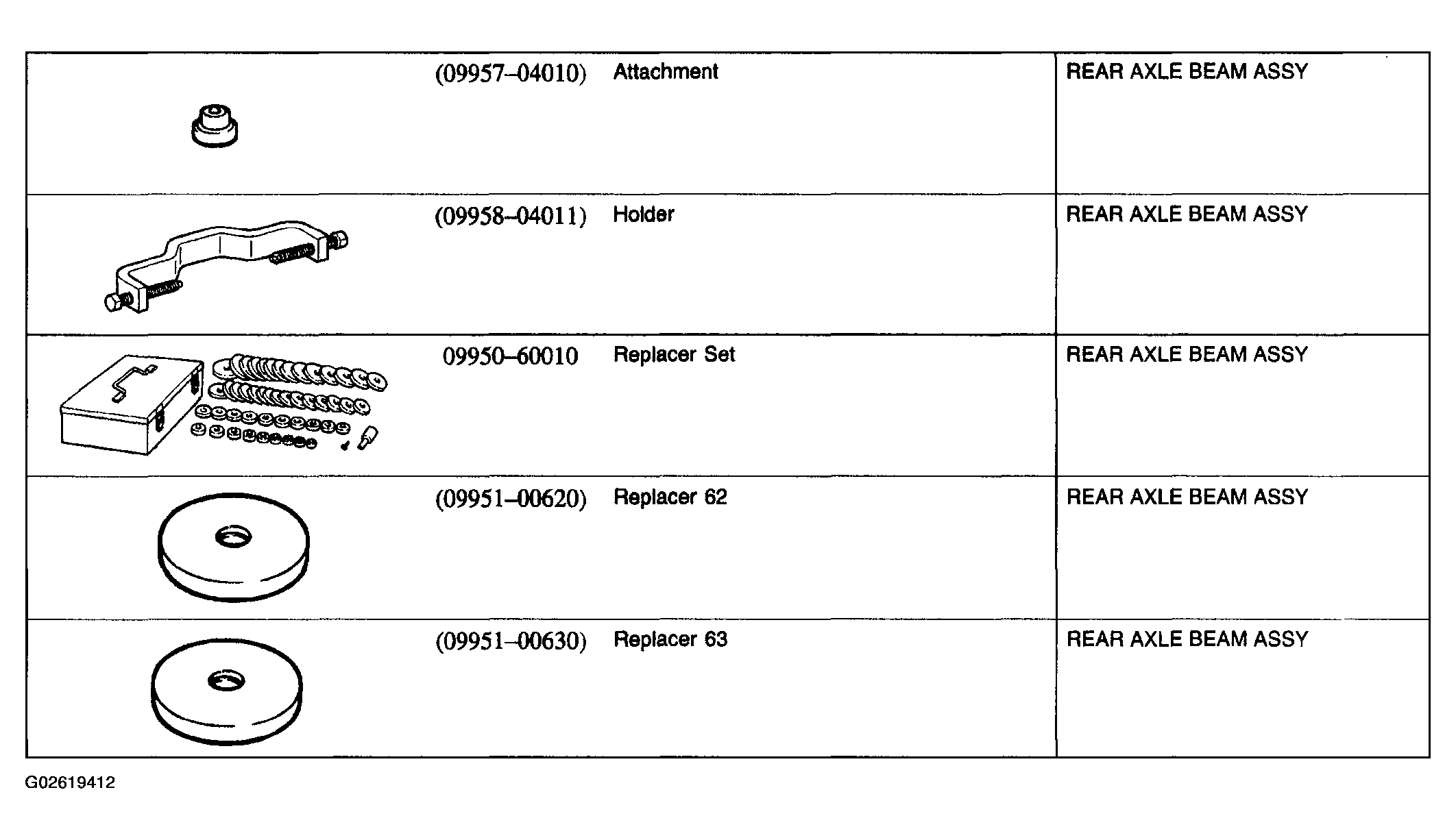

Fig 2: Identifying SST - Rear Suspension (2 Of 2)
G02619412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
