System Diagram: Communication

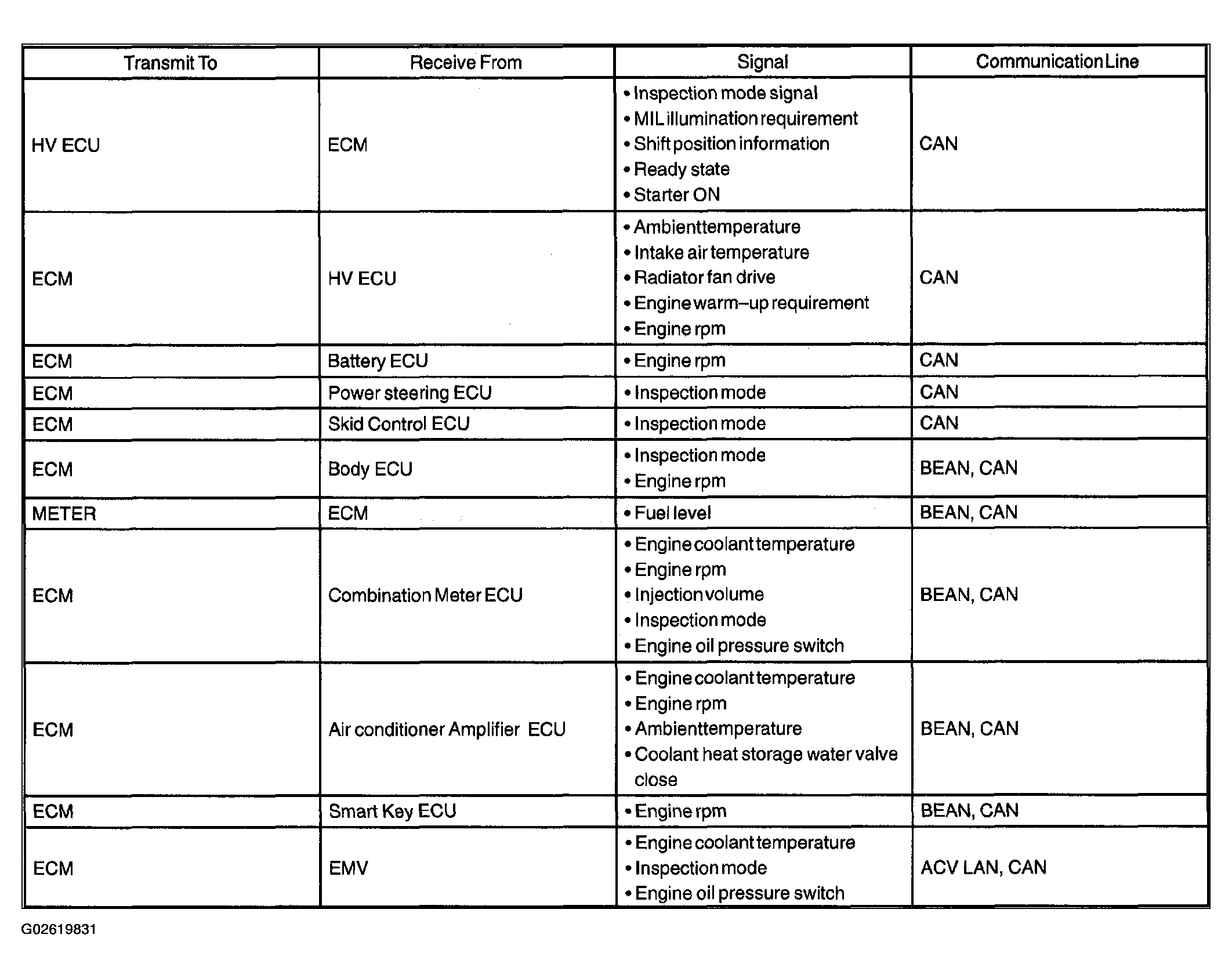

The ECM communicates with the following ECM and ECUs using the signals listed below. The following table explains receiving and sending signals by ECM or ECU.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
