System Diagram

Ignition timing is determined by the ECM based on signals from various sensors.

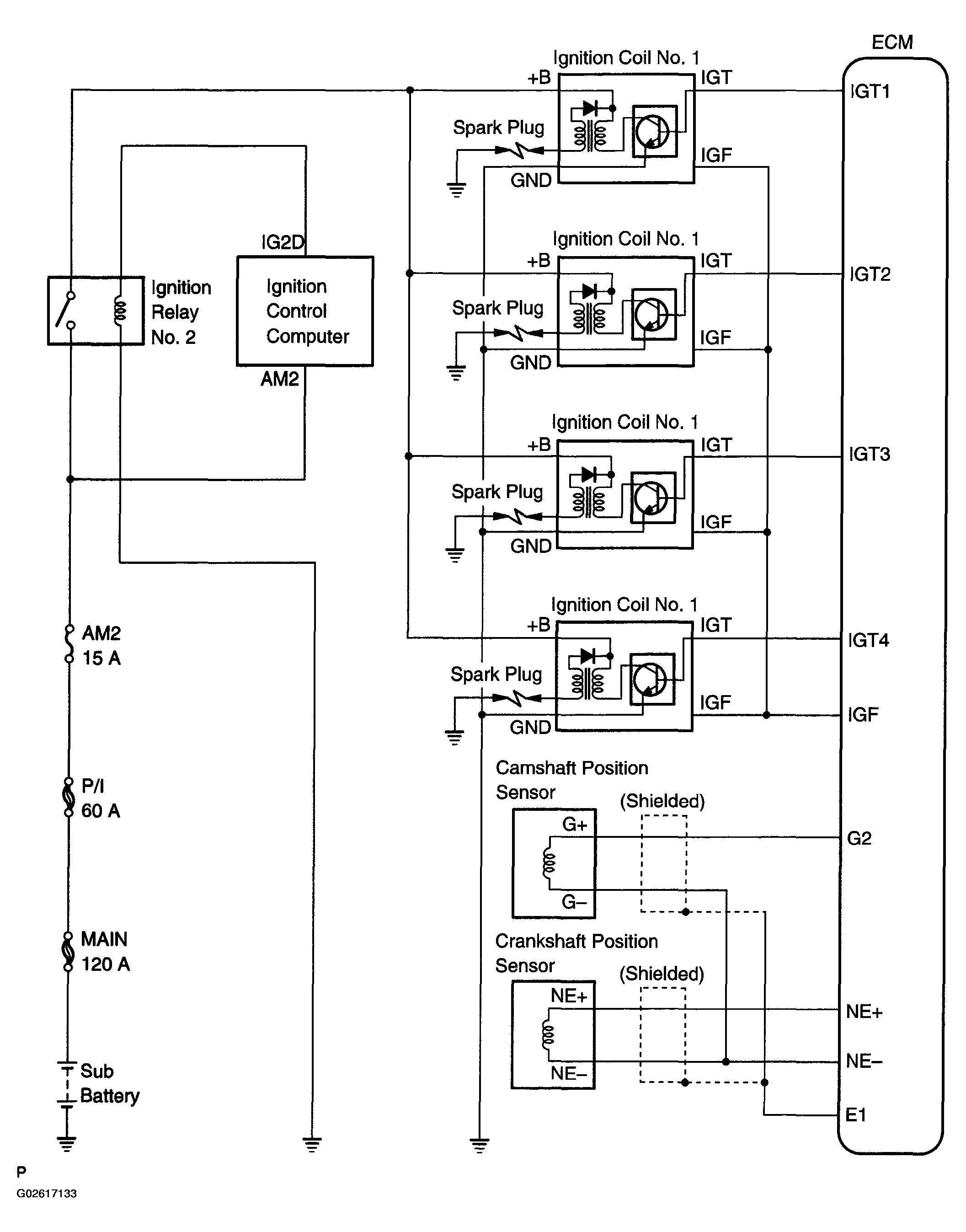

Fig 1: Ignition System (1NZ-FXE) Diagram
G02617133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
