System Diagram

The fuel system is determined by the ECM based on signals from various sensors.

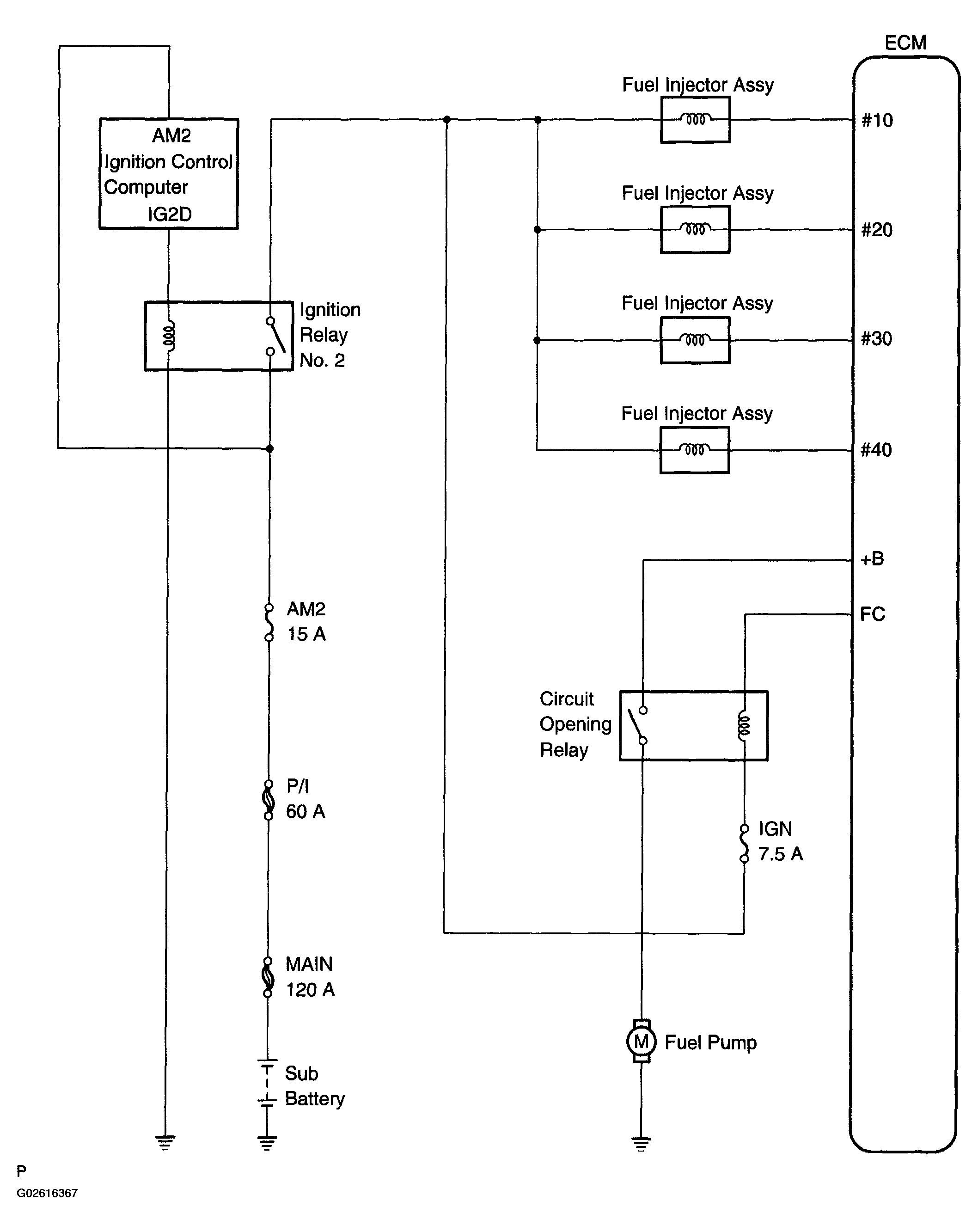

Fig 1: Fuel System (1NZ-FXE) System Diagram
