Inspection Procedure

  1. CHECK POWER WINDOW REGULATOR SWITCH ASSY REAR RH (POWER SOURCE VOLTAGE)
    1. Disconnect the P16 regulator switch connector.
    2. Measure the voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      P16-4 - Body ground Power switch ON (IG) 10 to 14 V
      Fig 1: Identifying Power Window Regulator Switch Assembly Rear RH (Power Source Voltage)
      G02617412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSY - POWER WINDOW REGULATOR SWITCH)
    2. OK
  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR RH (SEE  INSPECTION   )
    1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR RH
    2. OK
  3. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSY REAR RH - POWER WINDOW REGULATOR MOTOR ASSY REAR RH)
    1. Disconnect the P16 switch connector.
    2. Disconnect the P21 motor connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P16-1-P21-1 Below 1 Ω
      P16-3-P21-2 Below 1 Ω
      P16-1 or P21-1 - Body ground 10 kΩ or higher
      P16-3 or P21-2 - Body ground 10 kΩ or higher

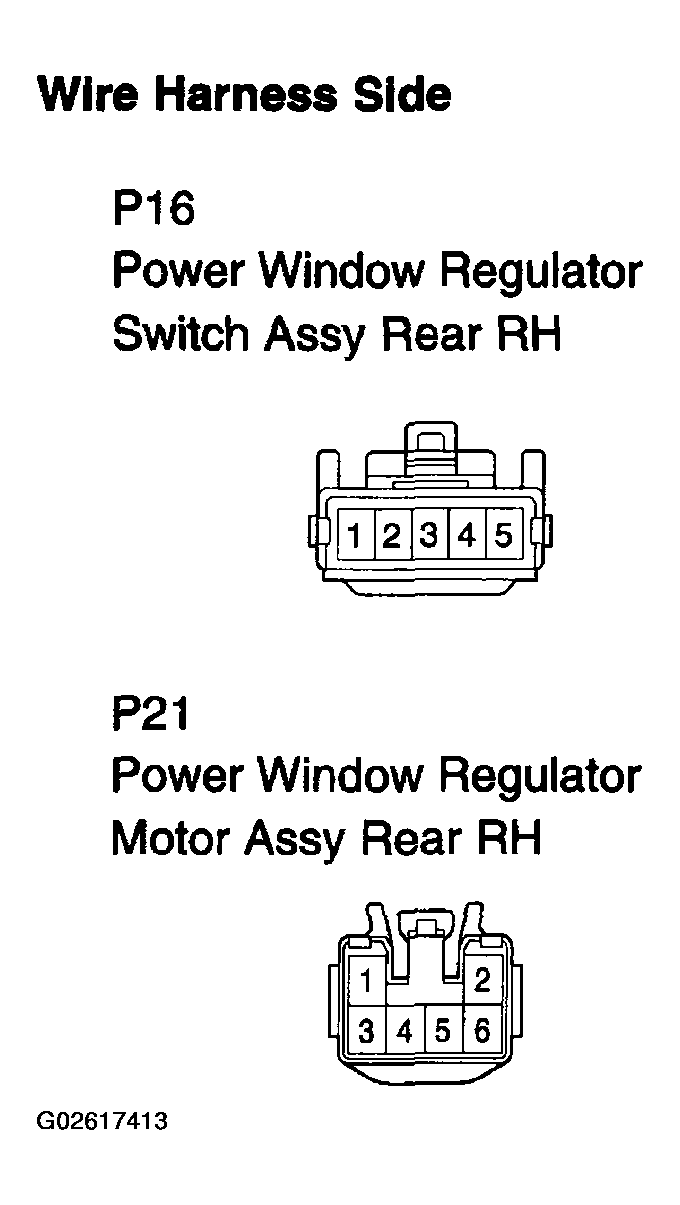

      Fig 2: Identifying Wire Harness (Power Window Regulator Switch Assembly Rear RH - Power Window Regulator Motor Assembly Rear RH)
      G02617413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK
  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSY REAR RH (SEE  INSPECTION   )
    1. NG: REPLACE POWER WINDOW REGULATOR MOTOR
    2. OK
  5. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - POWER WINDOW REGULATOR SWITCH ASSY REAR RH)
    1. Disconnect the P17 master switch connector.
    2. Disconnect the P16 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      P17-18 (RRU)-P16-5 Below 1 Ω
      P17-16 (RRD)-P16-2 Below 1 Ω
      P17-18 (RRU) or P16-5 - Body ground 10 kΩ or higher
      P17-16 (RRD) or P16-2 - Body ground 10 kΩ or higher

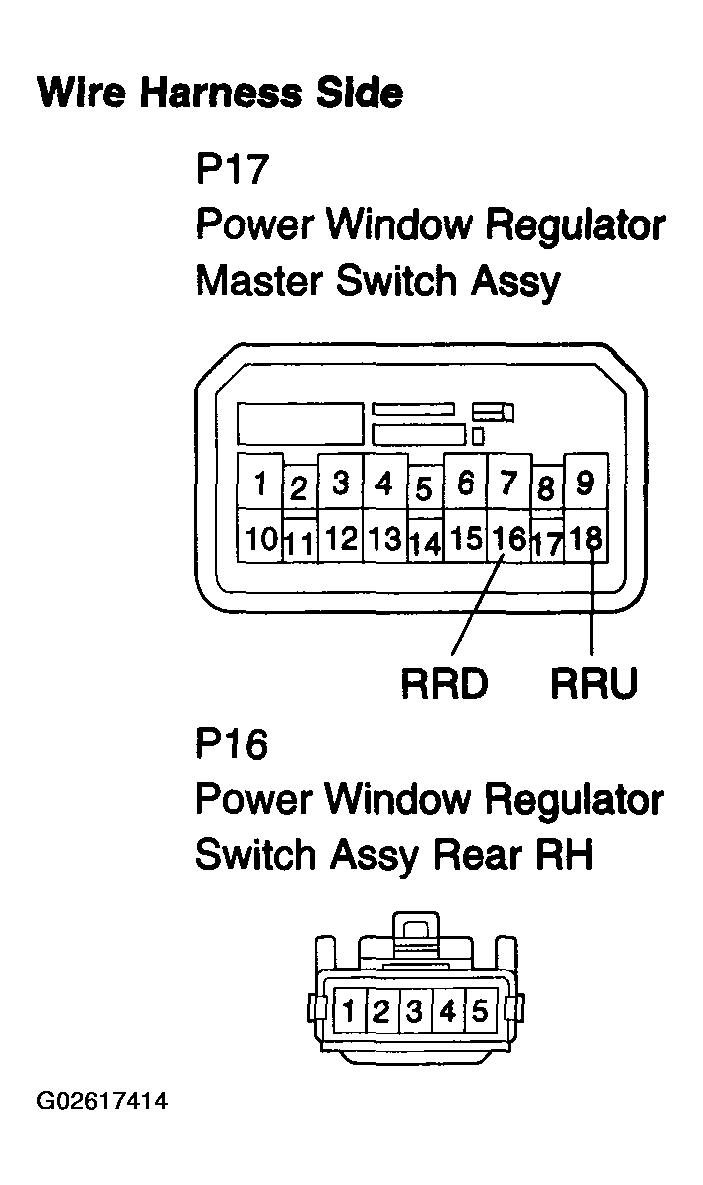

      Fig 3: Identifying Wire Harness (Power Window Regulator Master Switch Assembly - Power Window Regulator Switch Assembly Rear RH)
      G02617414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK

      INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
