Power Window - Diagnostics: Location

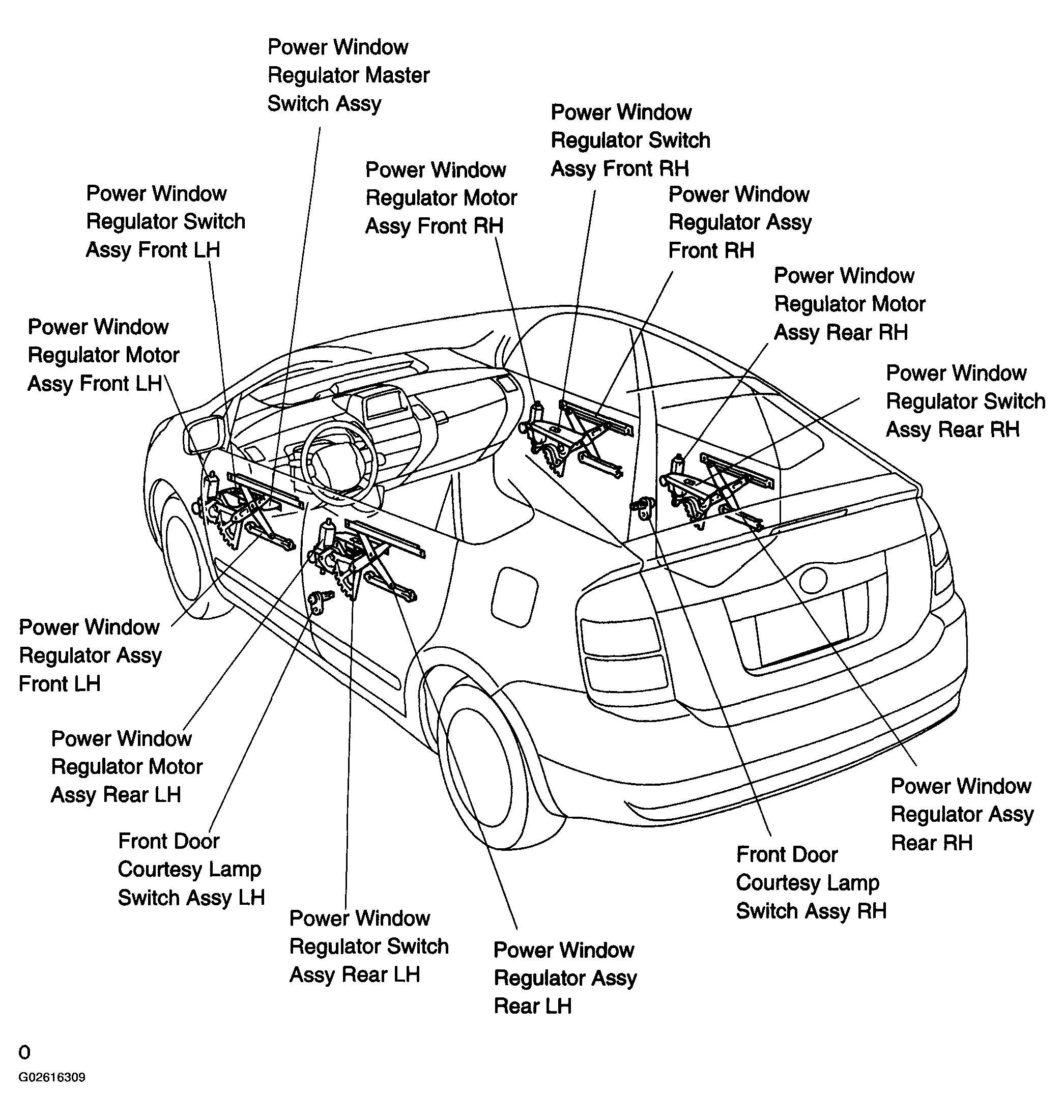

Fig 1: Identifying Components Of Power Window Control System (1 Of 2)
G02616309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

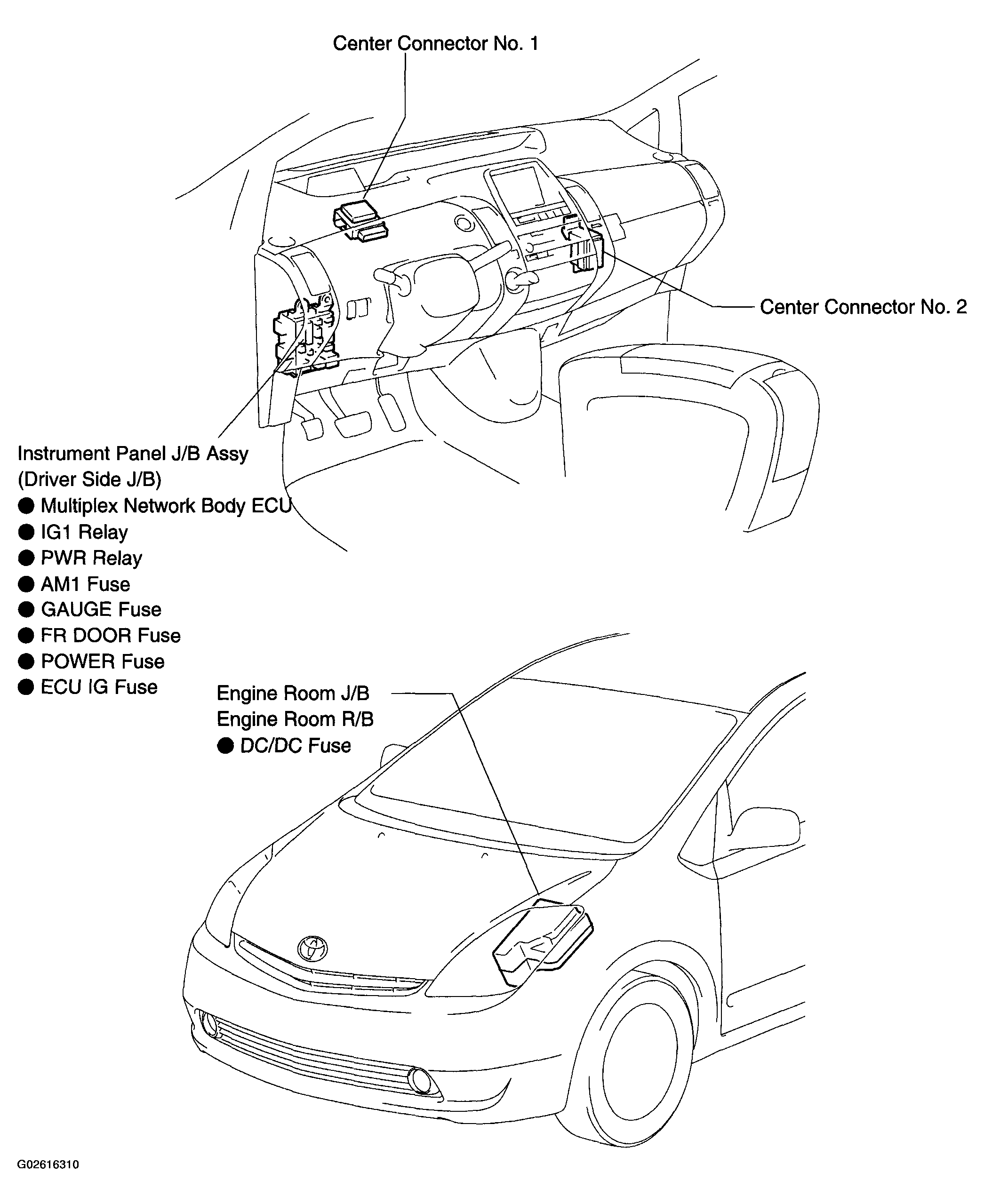

Fig 2: Identifying Components Of Power Window Control System (2 Of 2)
G02616310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
