Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Read the DATA LIST according to the display on the tester.

   Standard:

   Multiplex network body ECU:

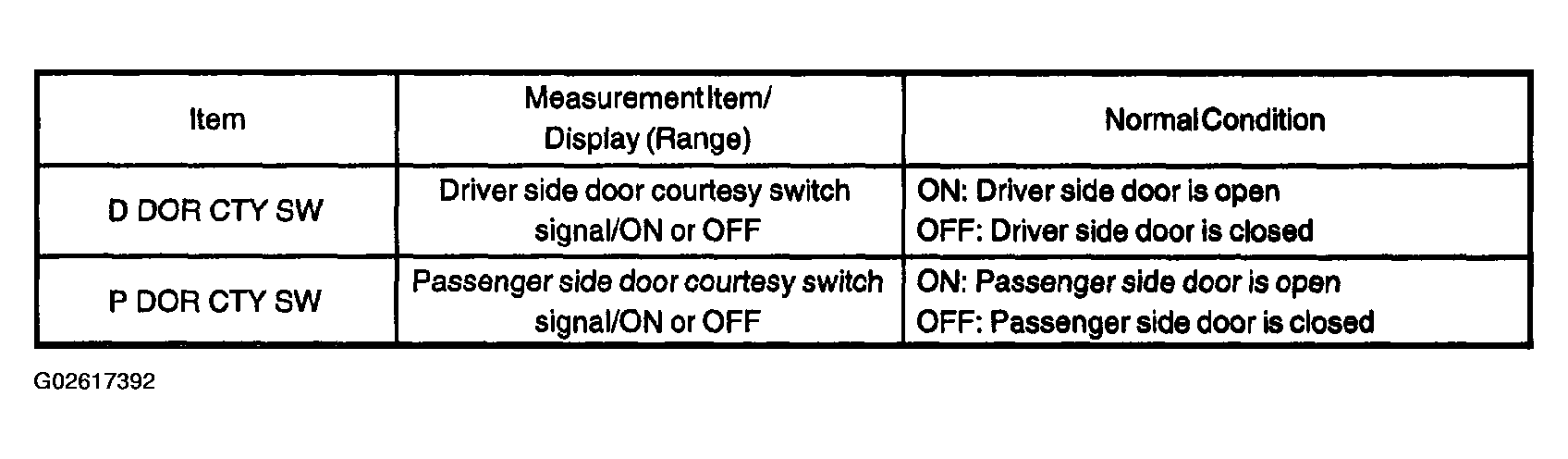

   Fig 1: Data List (Multiplex Network Body ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
