System Diagram

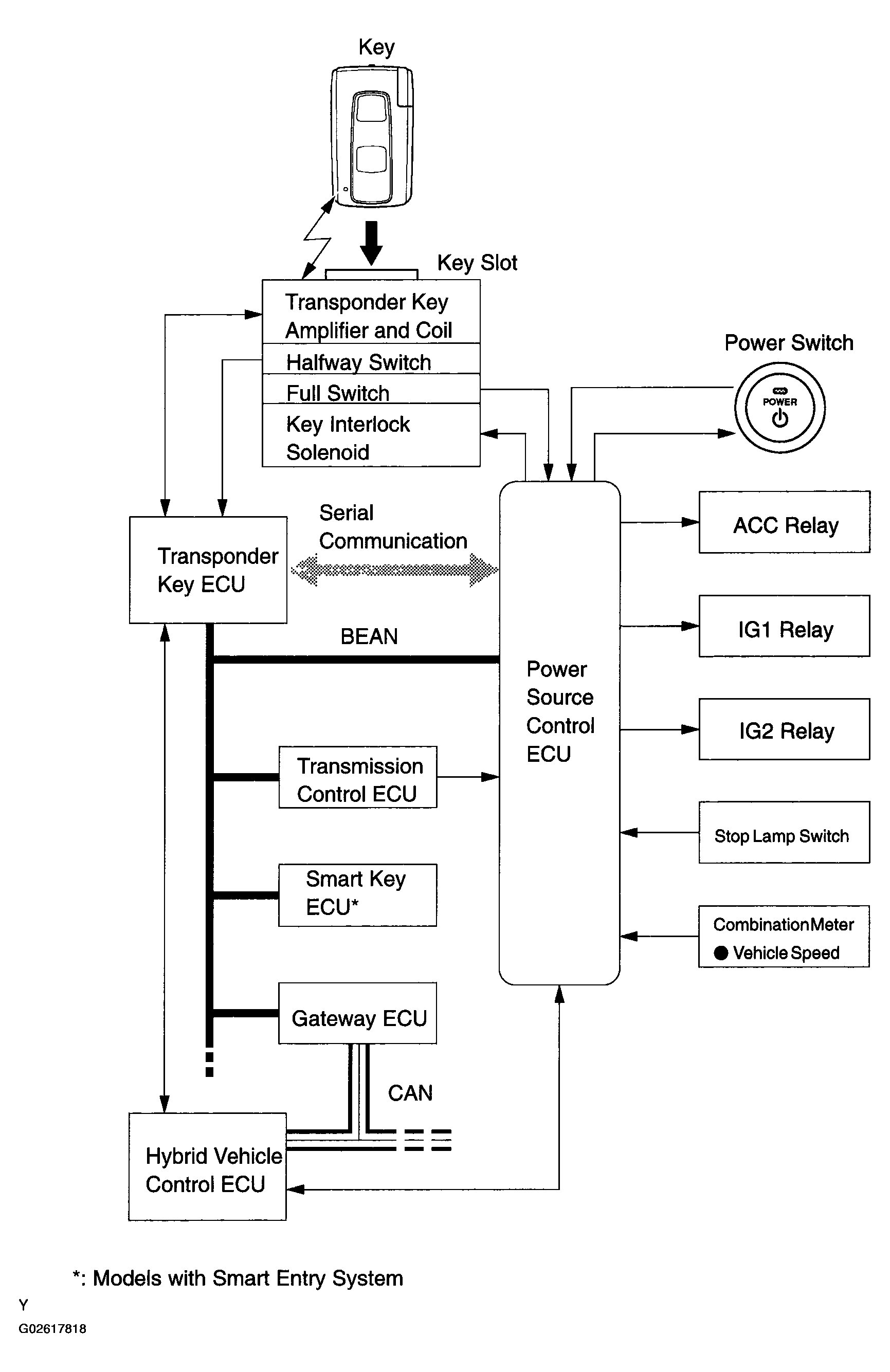

Fig 1: Push Button Start System - System Diagram
G02617818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

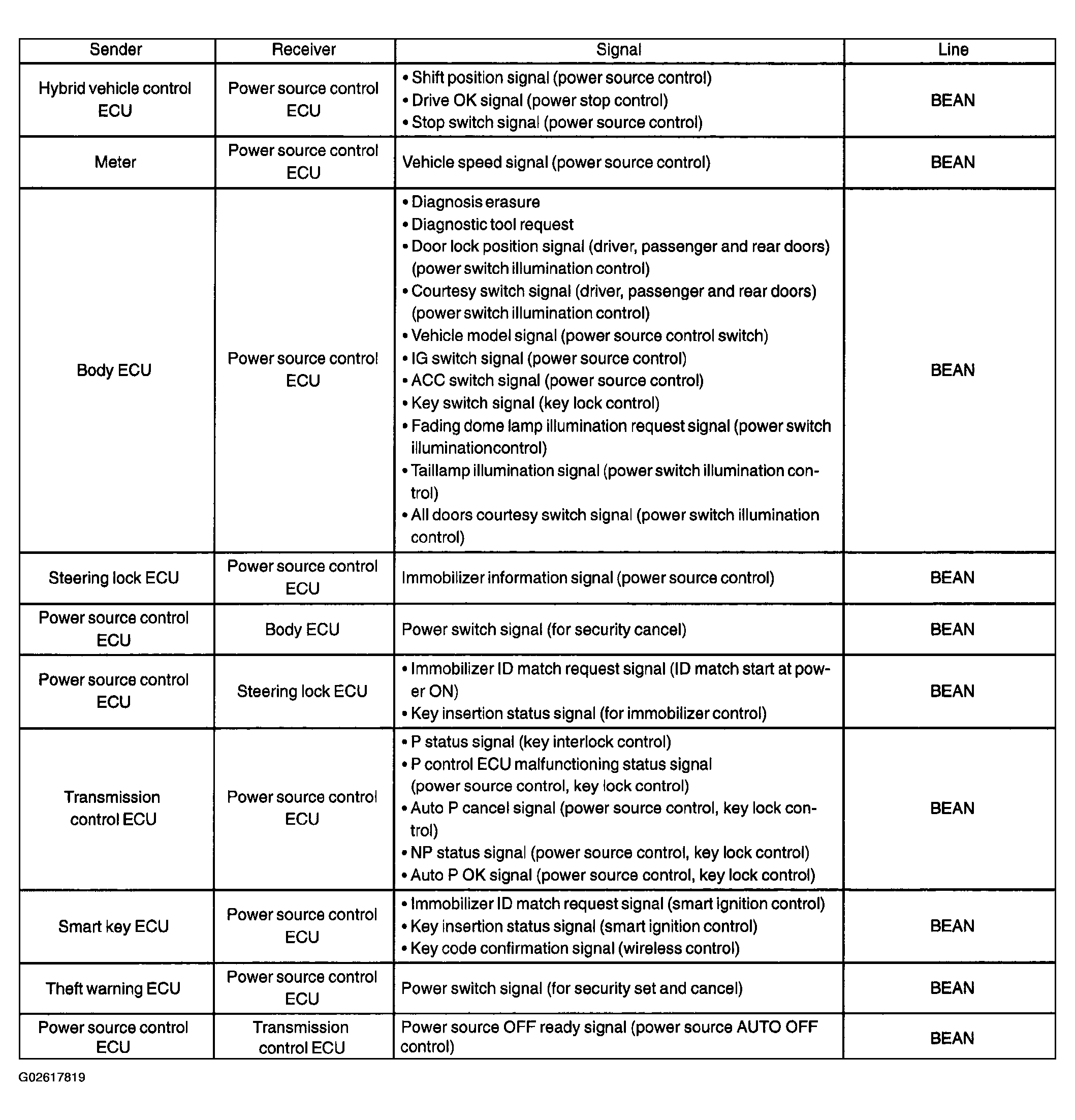

Fig 2: System Diagram Reference Chart
G02617819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
