System Diagram

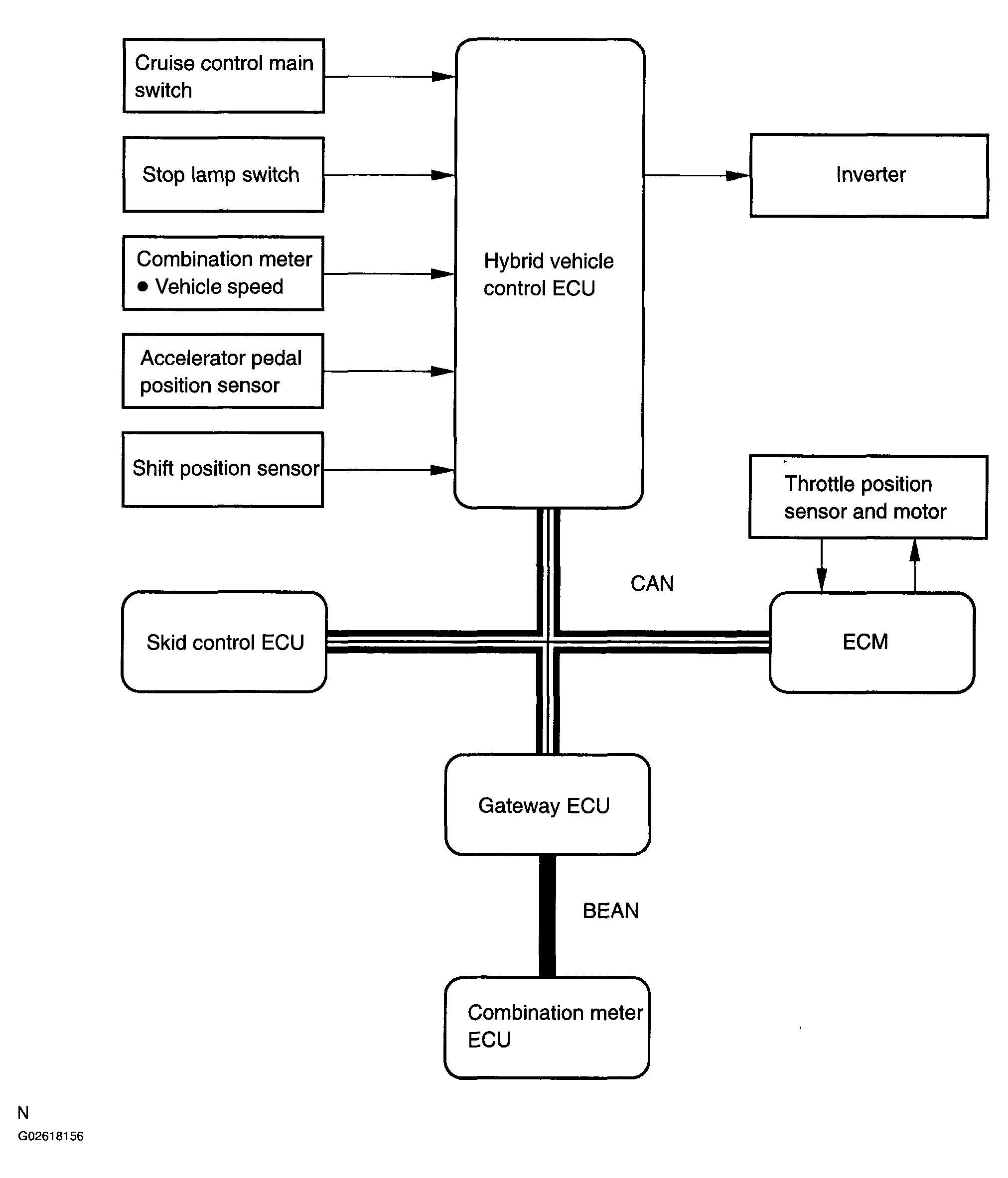

Fig 1: Cruise Control System Diagram
G02618156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

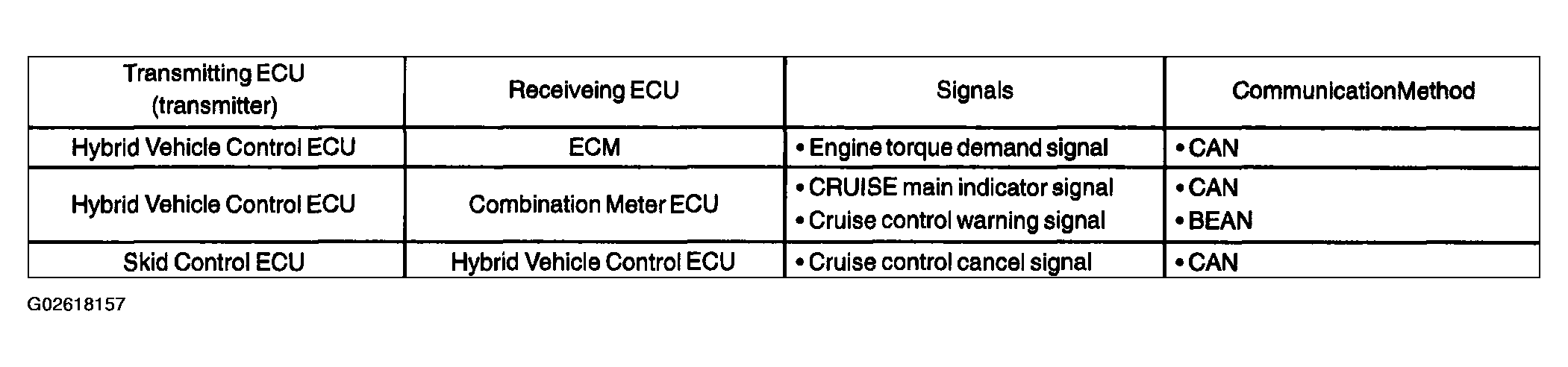

Fig 2: Transmitting/ECU Chart
G02618157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
