Input Shaft ASSY (C60): Components

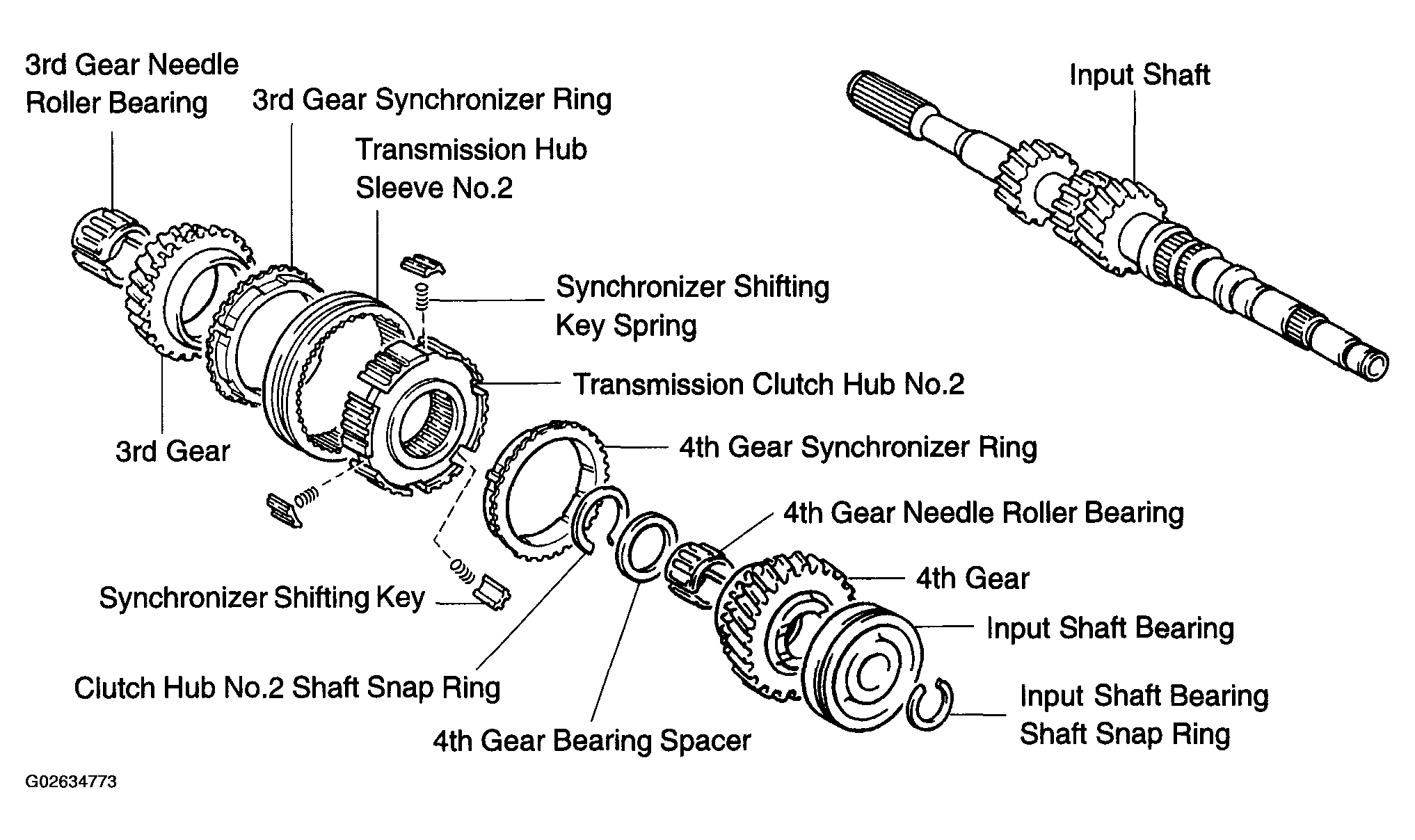

Fig 1: Identifying Components Input Shaft Assy
G02634773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
