Vane Pump ASSY: Components

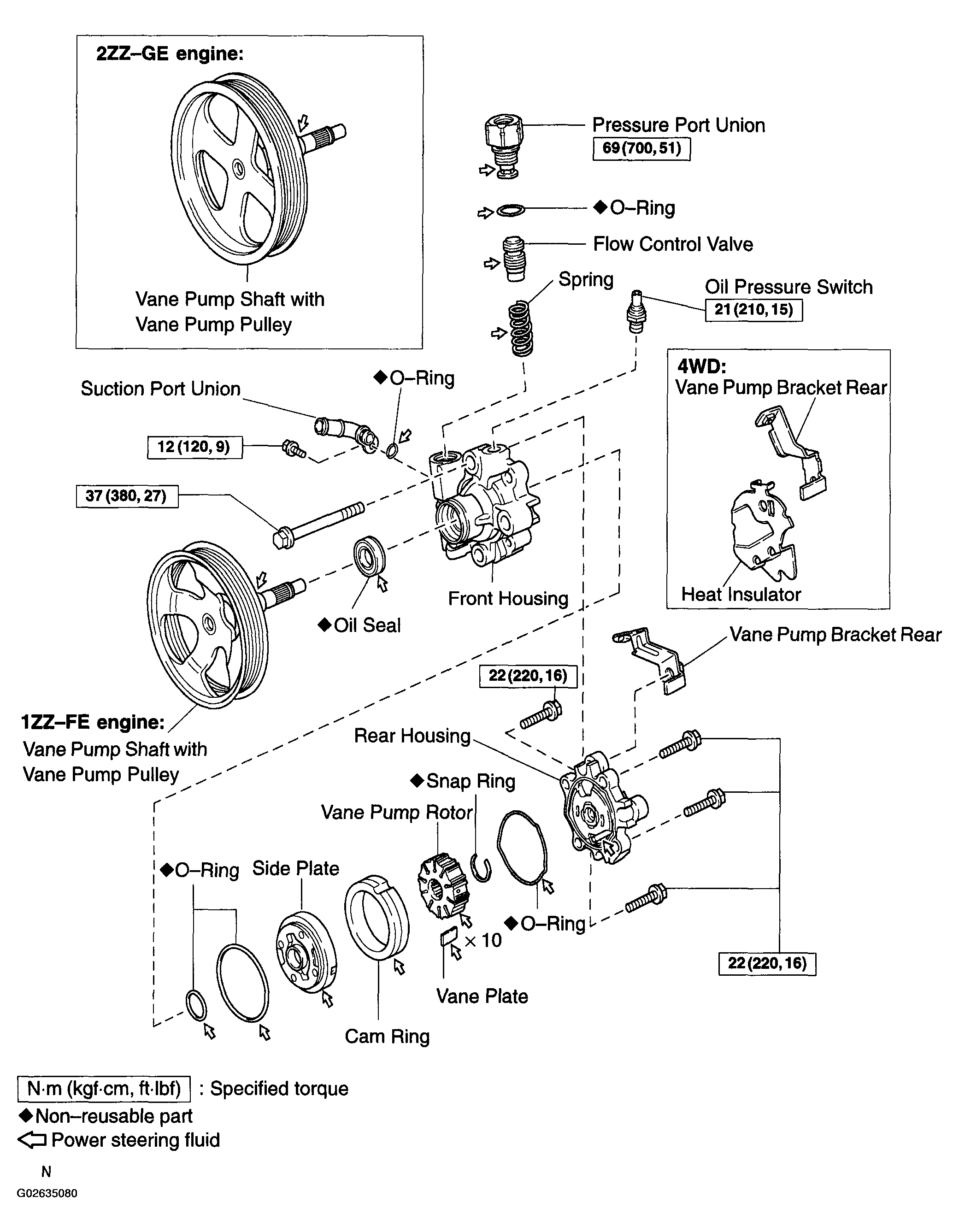

Fig 1: Vane Pump Assy Replacement Components With Torque Specifications
G02635080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
