Transmission Revolution Sensor (U341F): Replacement

REMOVE AIR CLEANER ASSEMBLY WITH HOSE
REMOVE TRANSMISSION REVOLUTION SENSOR
1. Disconnect the connector.
2. Remove the bolt and transmission revolution sensor.

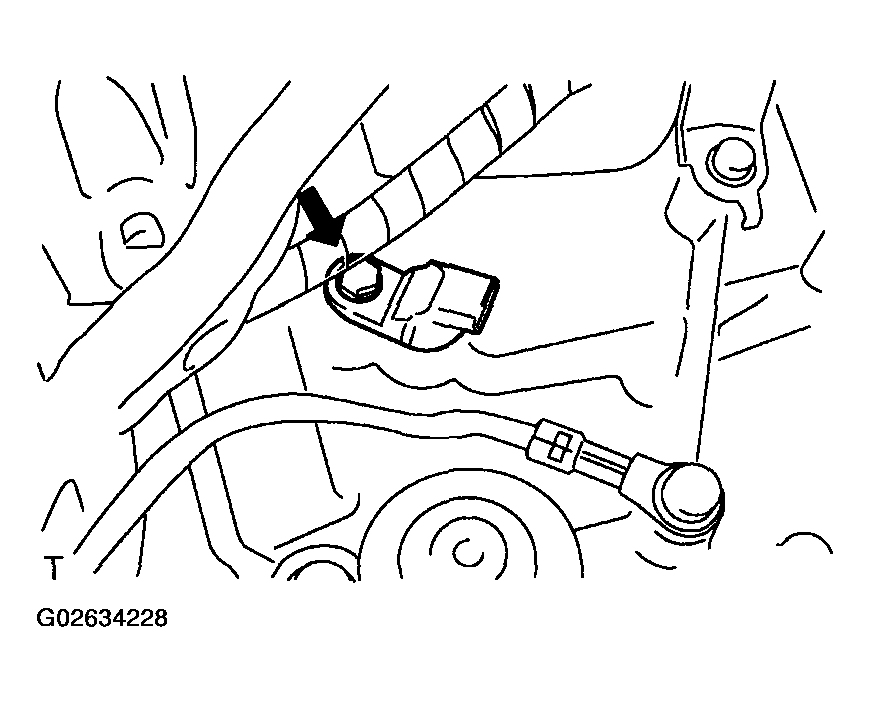

  Fig 1: Removing Transmission Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR
1. Coat O-ring with ATF.
2. Install the transmission revolution sensor with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the connector.

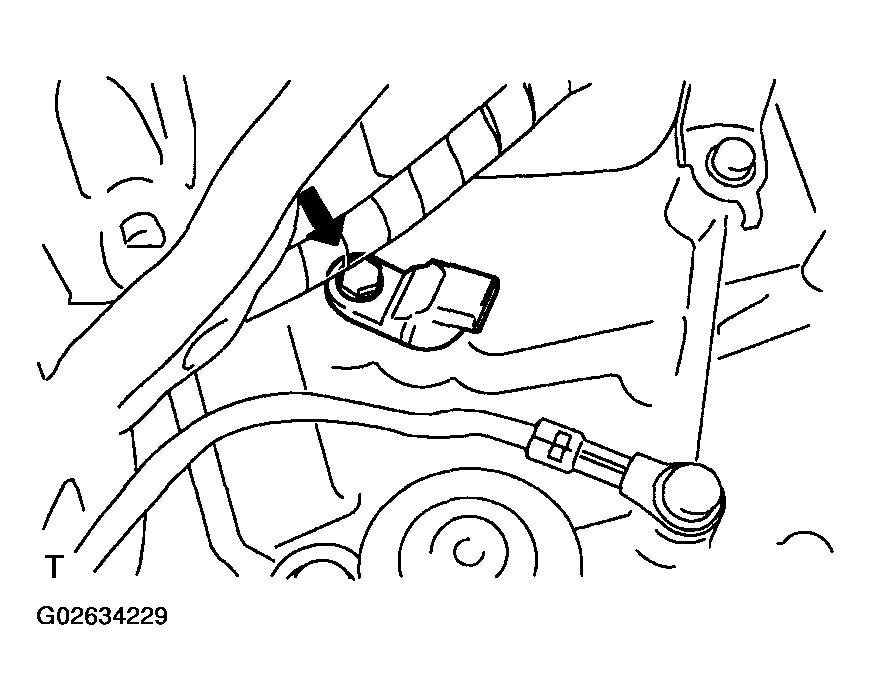

  Fig 2: Installing Transmission Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSEMBLY WITH HOSE
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
