Radio Wire Sub ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS .

1. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )

   HINT:

   Refer to the instructions for removal of the instrument panel sub-assy upper.

2. REMOVE RADIO WIRE SUB ASSY
   1. Disconnect the connector.
      Fig 1: Disconnecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 3 clamps and radio wire sub assy.

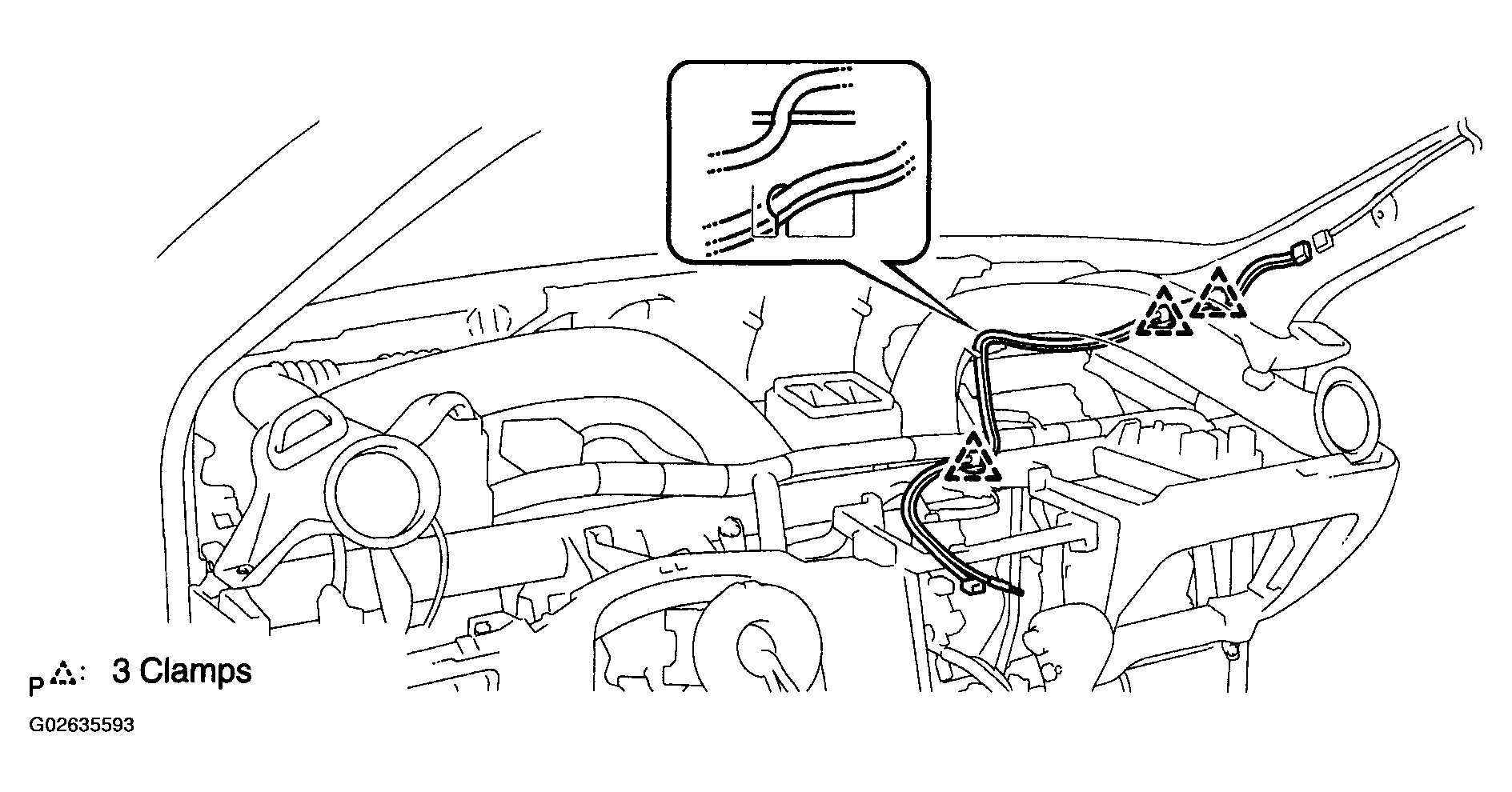

      Fig 2: Removing Clamps And Radio Wire Sub Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
