Transfer Case

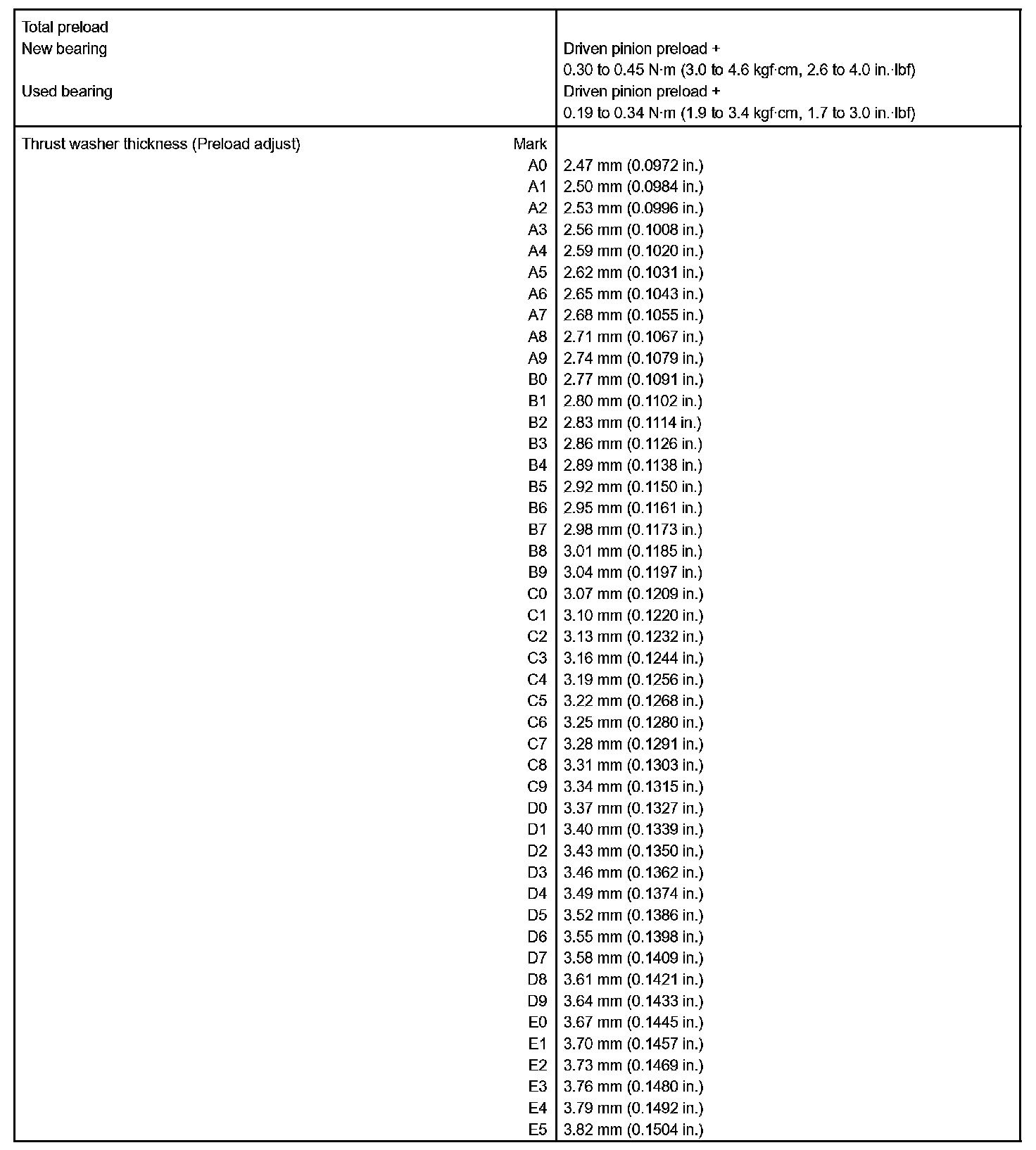

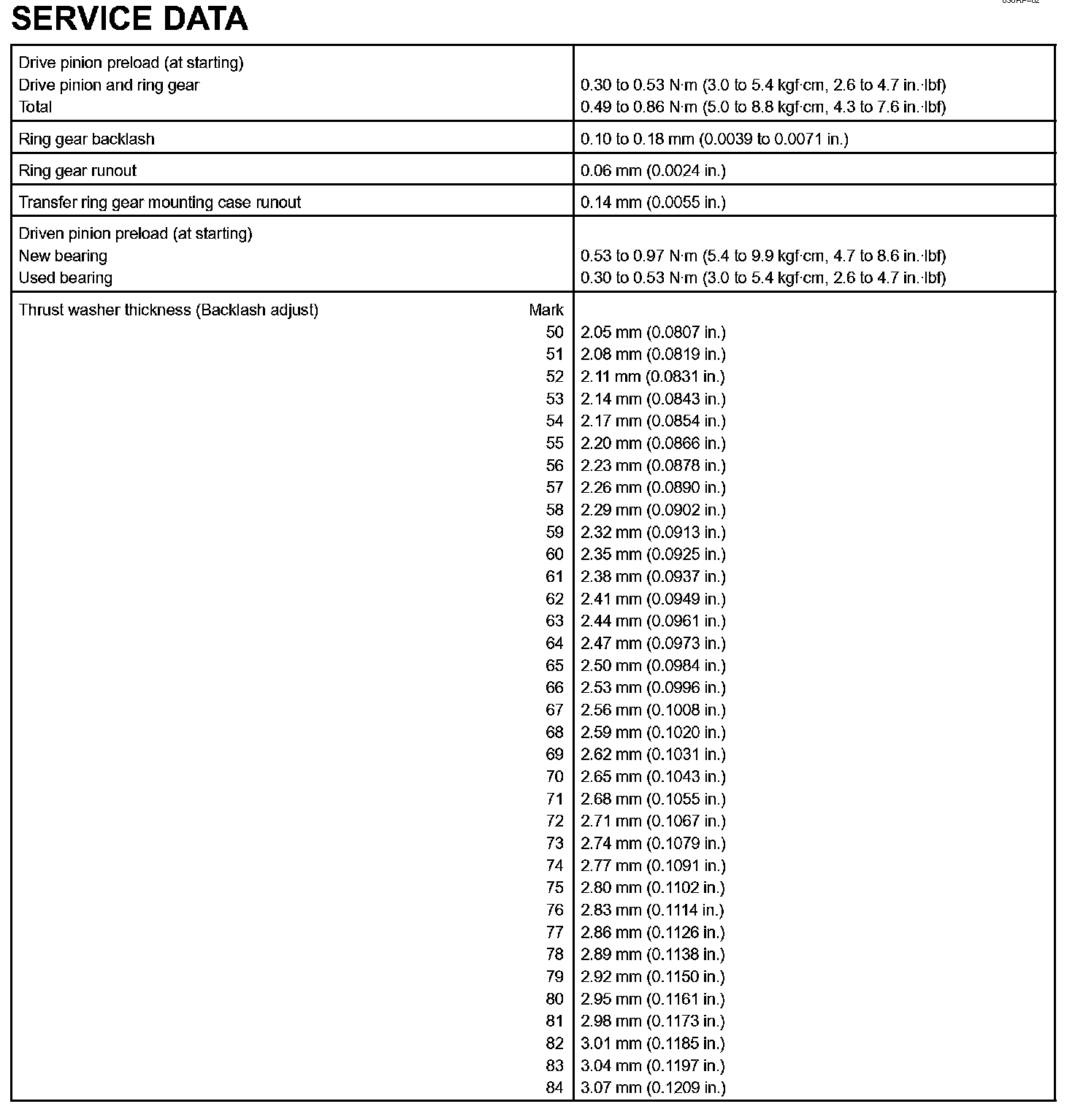

Transfer - Service Data Part 1:



Transfer - Service Data Part 2:



Transfer - Service Data Part 3:

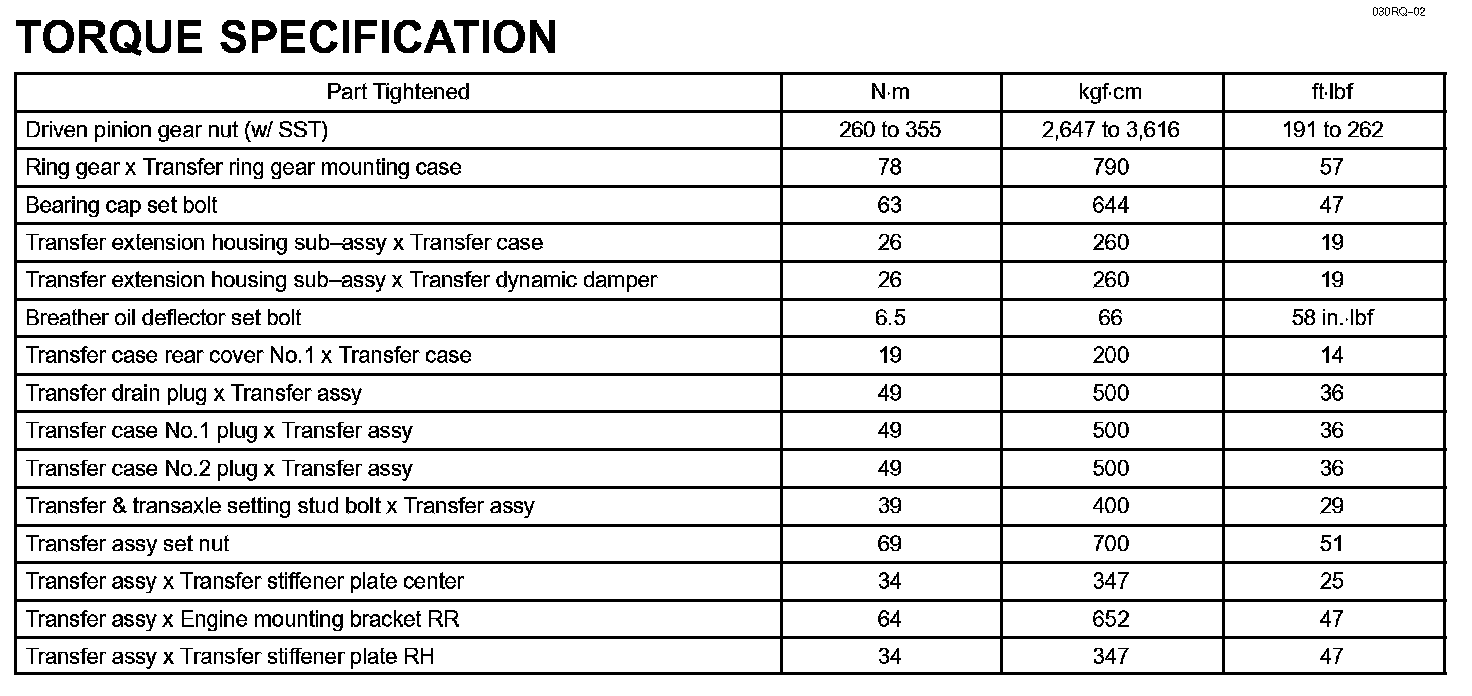

Transfer - Torque Specification:
