Symptom Related Diagnostic Procedures

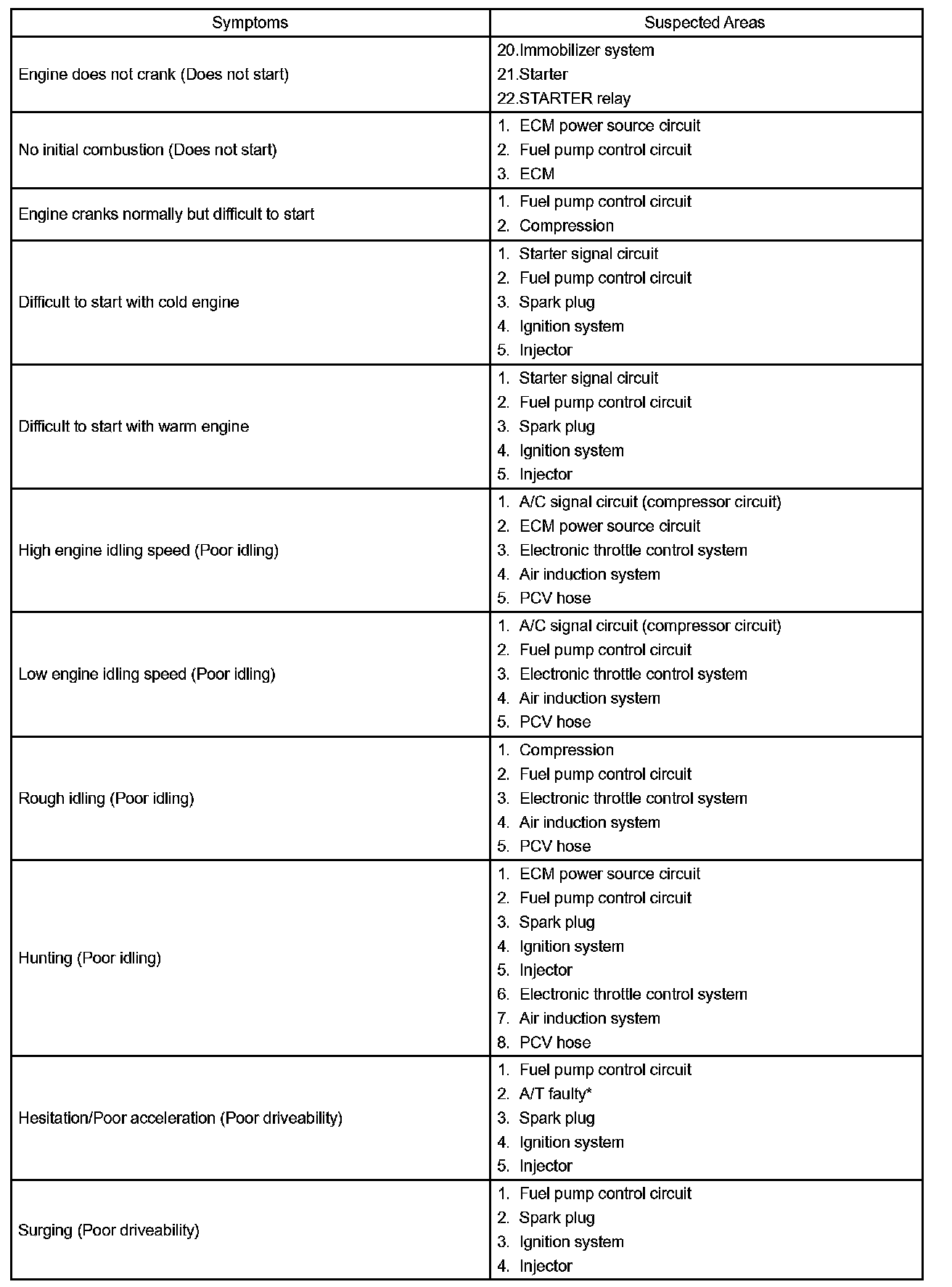

PROBLEM SYMPTOMS TABLEProblem Symptoms Table Part 1:
Problem Symptoms Table Part 2:
HINT: When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table.
