Steering Sensor Communication Stop Mode

STEERING SENSOR COMMUNICATION STOP MODE

DTC Detecting Condition:




CIRCUIT DESCRIPTION

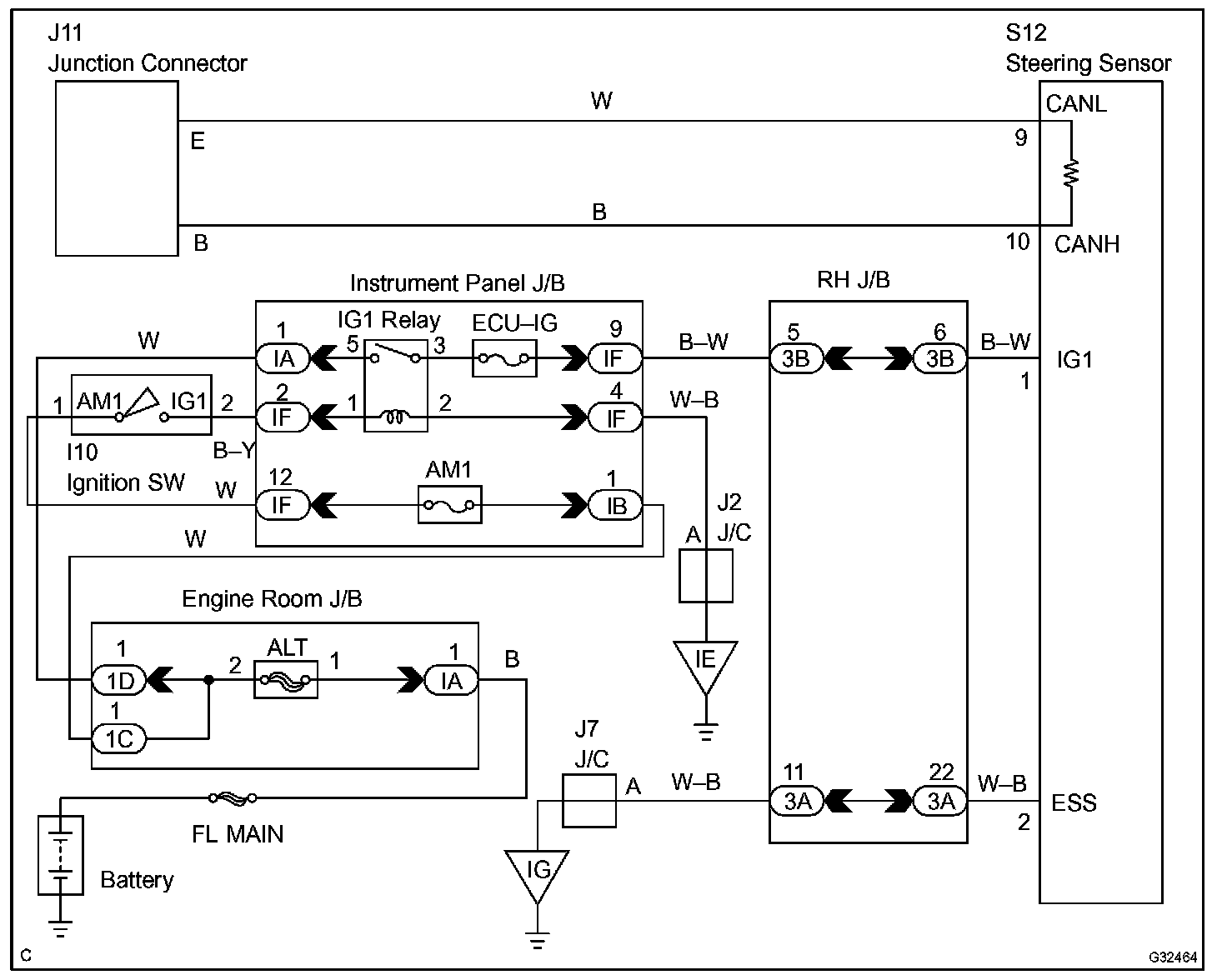

Wiring Diagram:

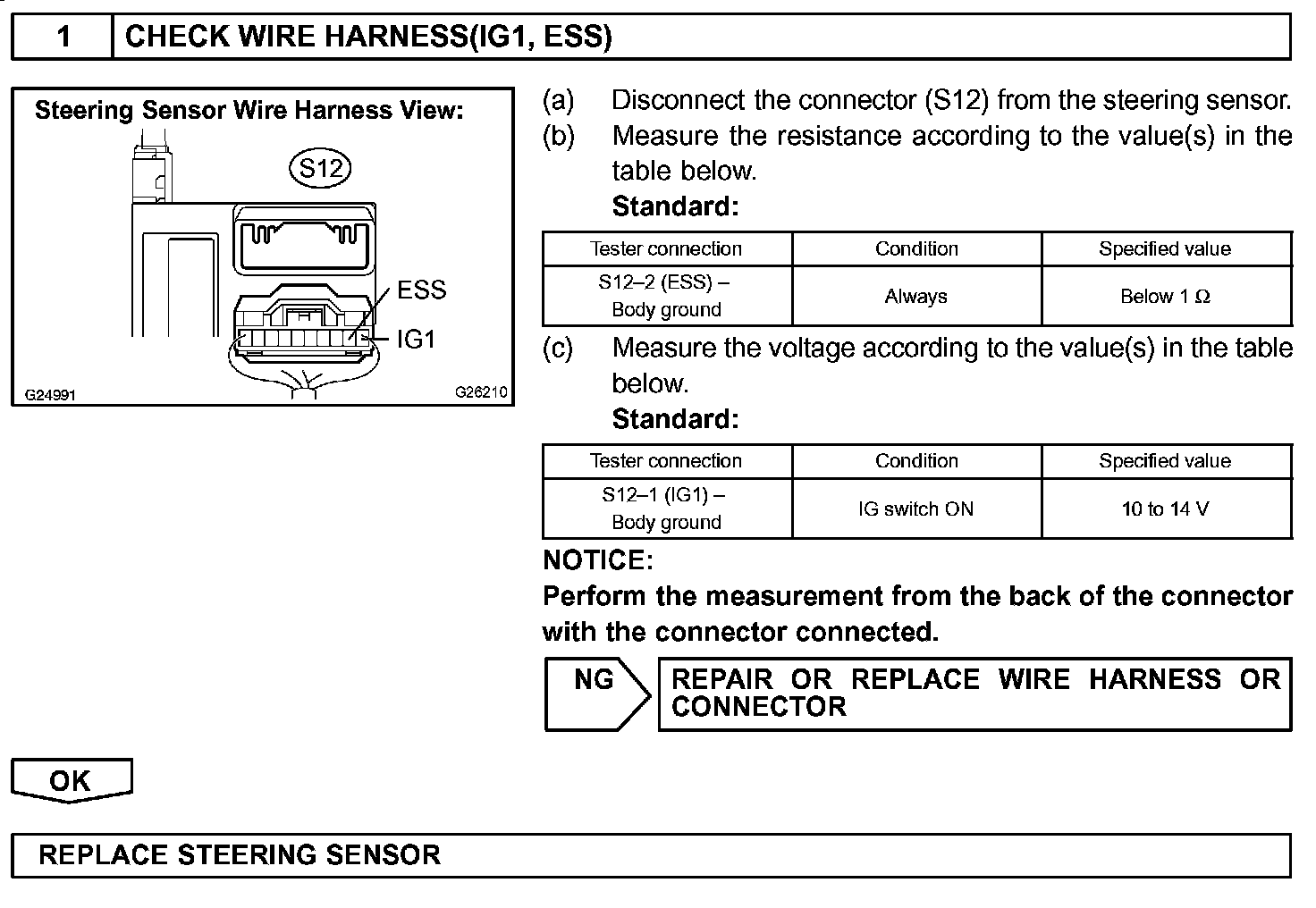

Step 1:




INSPECTION PROCEDURE
