Navigation Module: Testing and Inspection

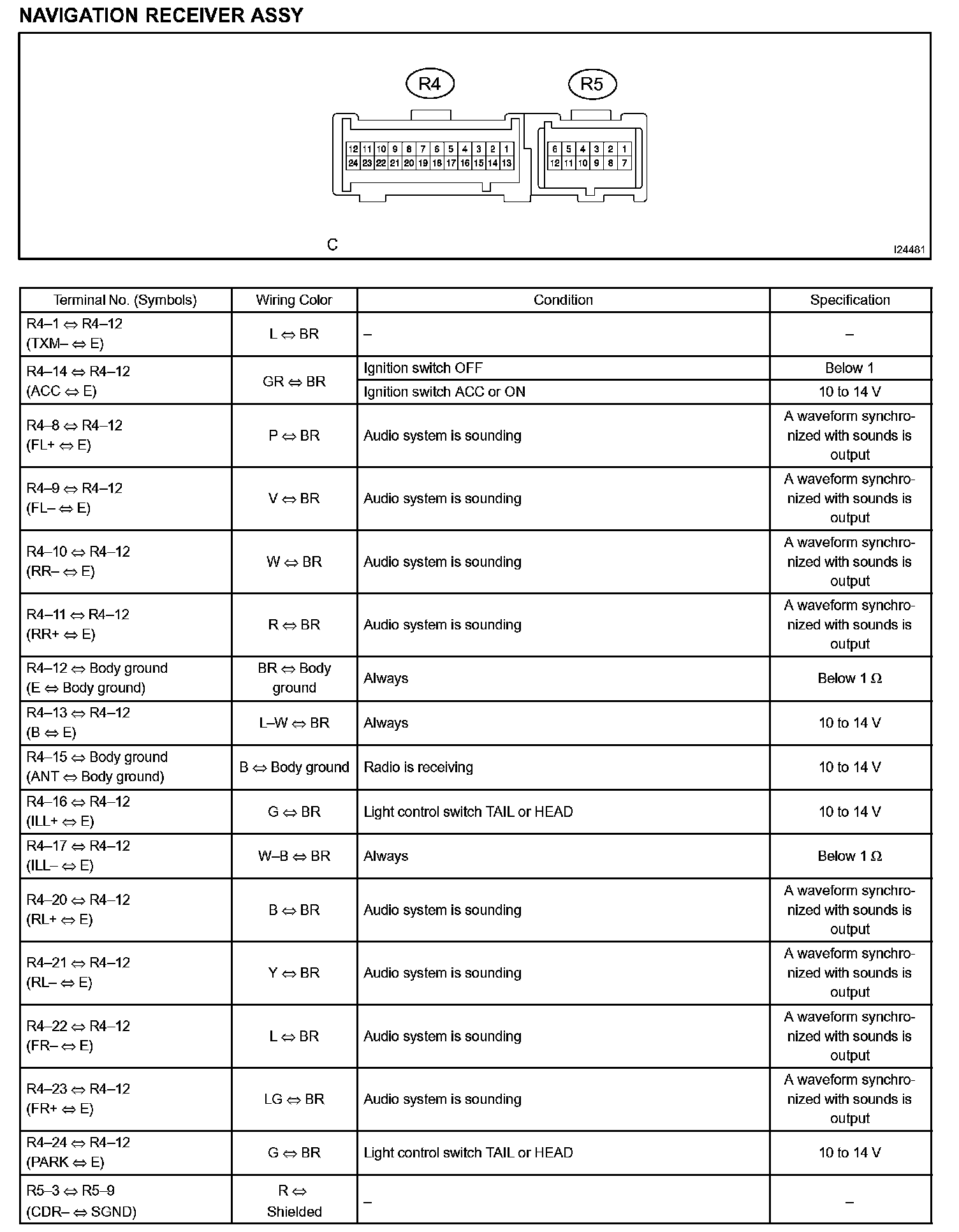

Terminals Of Control Module/Pinouts - Navigation Receiver Assy Part 1:



Terminals Of Control Module/Pinouts - Navigation Receiver Assy Part 2:



Terminals Of Control Module/Pinouts - Disc Player Changer:
