A/C Compressor Circuit: Wiring Diagram

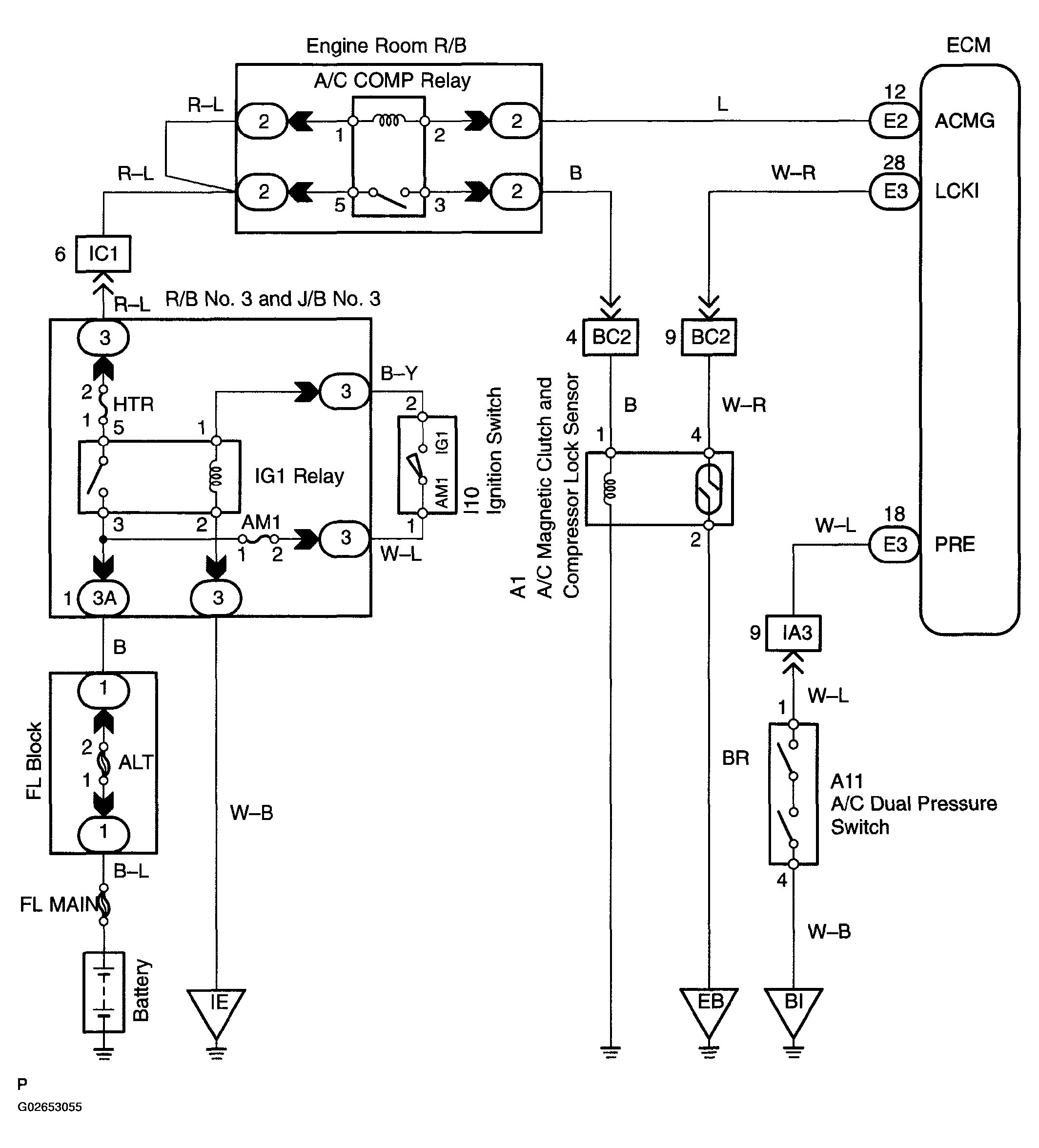

Fig 1: Wiring Diagram - A/C Compressor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
